GMC Sierra

GMC Sierra 2007 - 2013 HID Kits & LED Conversions

GMC Sierra 2007 - 2013 HID Kits & LED Conversions

Regular price $199.99 CAD
Regular price Sale price $199.99 CAD
Sale Sold out
Shipping calculated at checkout. Free options available.

This page lists all of AbsoluteHID Canada's conversions for the 2007 - 2013 GMC Sierra 1500, 2500 and 3500.  Click here for other years and trims of Sierra's, or Contact Us for more assistance.

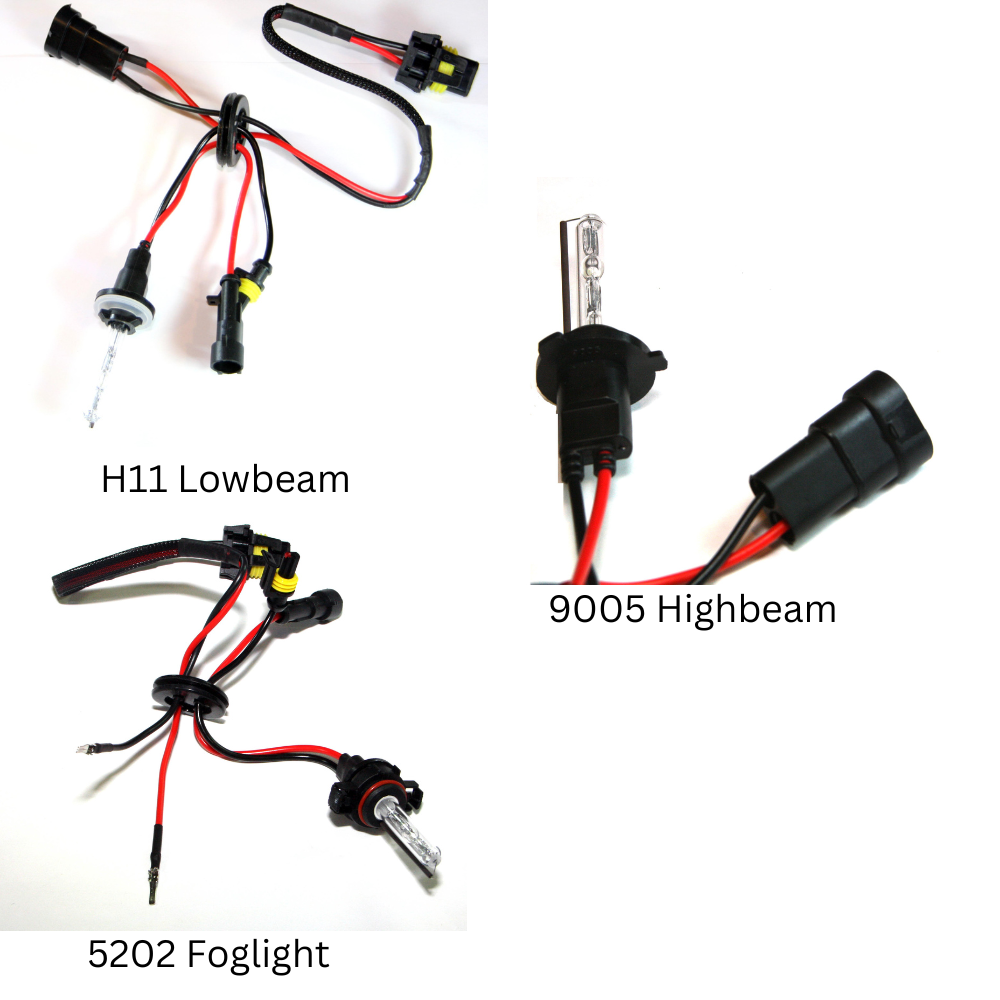

These Sierras use a H11 lowbeam bulb, 9005 highbeam bulb and a 5202 foglight bulb. Lowbeams and foglights are plug and play with all kits, highbeams are plug and play only with LED unless DRL is disabled prior to installation.

55W HID's are brightest option on these trucks, but can have cold-start issues below -30C. If you live in northern Canada, talk to us about a 35w kit. For most Canadians, a 55w kit in 4300K is the optimal choice for the lowbeams.  LED's also have excellent performance on all housings on this model truck, delivering nearly as much lighting performance as a 55w HID kit at a lower price point, and a longer replacement interval. For city driving, a lowbeam conversion is generally sufficient.

Highbeams work plug and play only with an  LED, due to the truck's Daytime Running Light system. LEDs are not only DRL compatible, but offer instant-on performance, and do not experience additional wear from frequent power cycling. LED's come only in 6000K, if you are matching HID lows to LED highs, consider a higher kelvin rating for your HID's, or doing LED's all around.  Foglights work equally well with HID and LED kits. We recommend a 35w foglight kit, as unlike the headlights, the housings are too  small to dissipate the heat from the brighter kit. Foglight upgrades are particularly useful for illuminating ditches, treelines and wildlife.

AbsoluteHID Kelvin Chart
AbsoluteHID Recommends 4300K (White) Factory colour HID's for all applications. White HID's are brighter, less distracting to other drivers and offer maximum visibility. LED kits come ONLY in 6000K
  • Smart PWM CANBUS HID Kits (Plug & Play)
  • No splicing wires
  • Works with automatic headlights and auto highbeams
  • Integrates with Ram TIPM (body control module)
  • FREE Nationwide Canadian shipping
  • AC HIDs, Wattage is RMS not peak
  • Lumens ratings per bulb, not kit
  • ALL parts for installation included
  • Built-in CANBUS, nothing else needed
  • Laser aligned UV cut Quarts bulbs
  • 100% Shock-proof and Water-proof
  • Installation Manual Included
  • Warranty Covers ALL Components
  • Canadian DRL Compatible (As indicated)
  • Shipped from Canada (NO DUTY!)
  • Smart PWM CANBUS LED Kits (Plug & Play)
  • Free Tracking Number & Insurance
  • Live Chat Support with Trained Staff
  • Questions? Call us! (647) 547-1962
  • XM radio-equipped vehicles require relay (included)





AbsoluteHID Smart PWM CANBUS HID Kits

  • CANBUS prevents vehicle ECU from detecting HID Kit
  • Smart PWM prevents TIPM turning off kit after 10-15min
  • Digitally regulated ballasts extends bulb life (up to 4 years)
  • Smart PWM HID kits have the fastest warm-up time (Achieve 80% brightness within 1 second)
  • NO Flickering
  • Standard brightness 35w & Max brightness 55w kits available
  • Factory halogen bulbs are 55w
  • 55w kits do not work well below -30C
  • 35w kits work well to -35C
  • Below these temperatures, ballasts may need to be turned on and off several times to fire up.

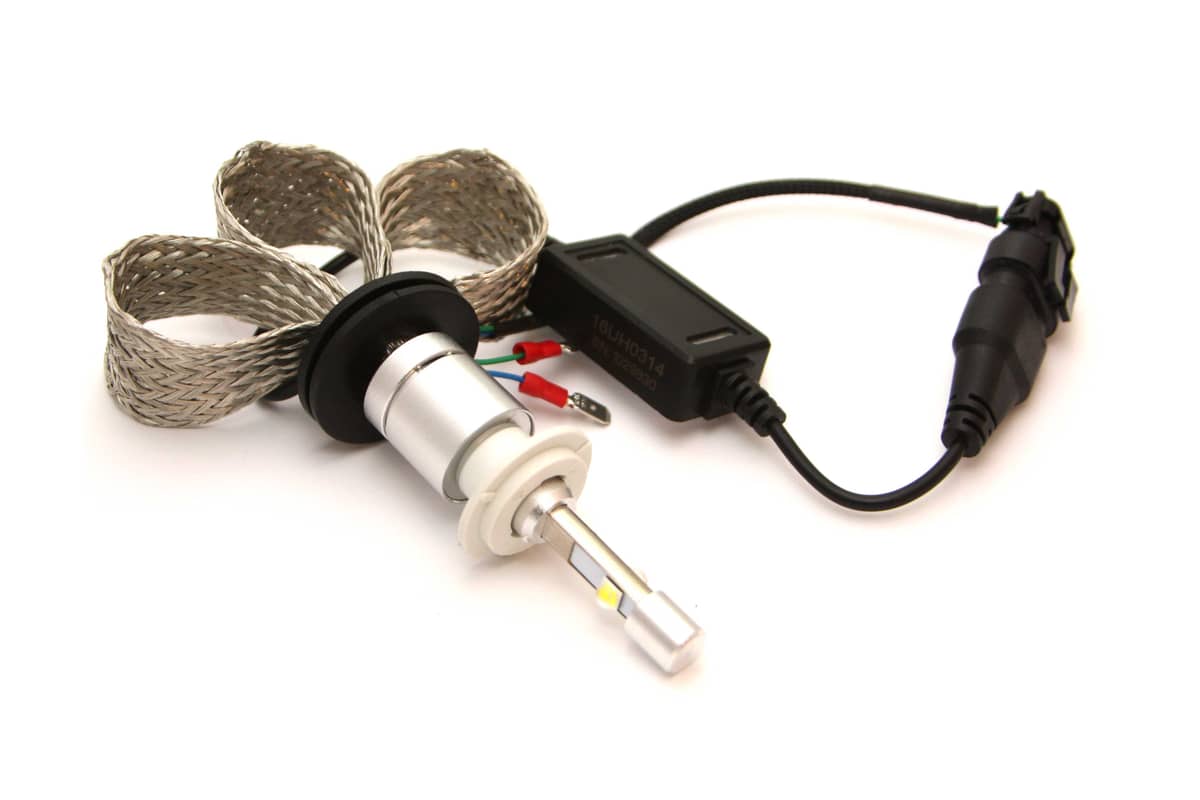

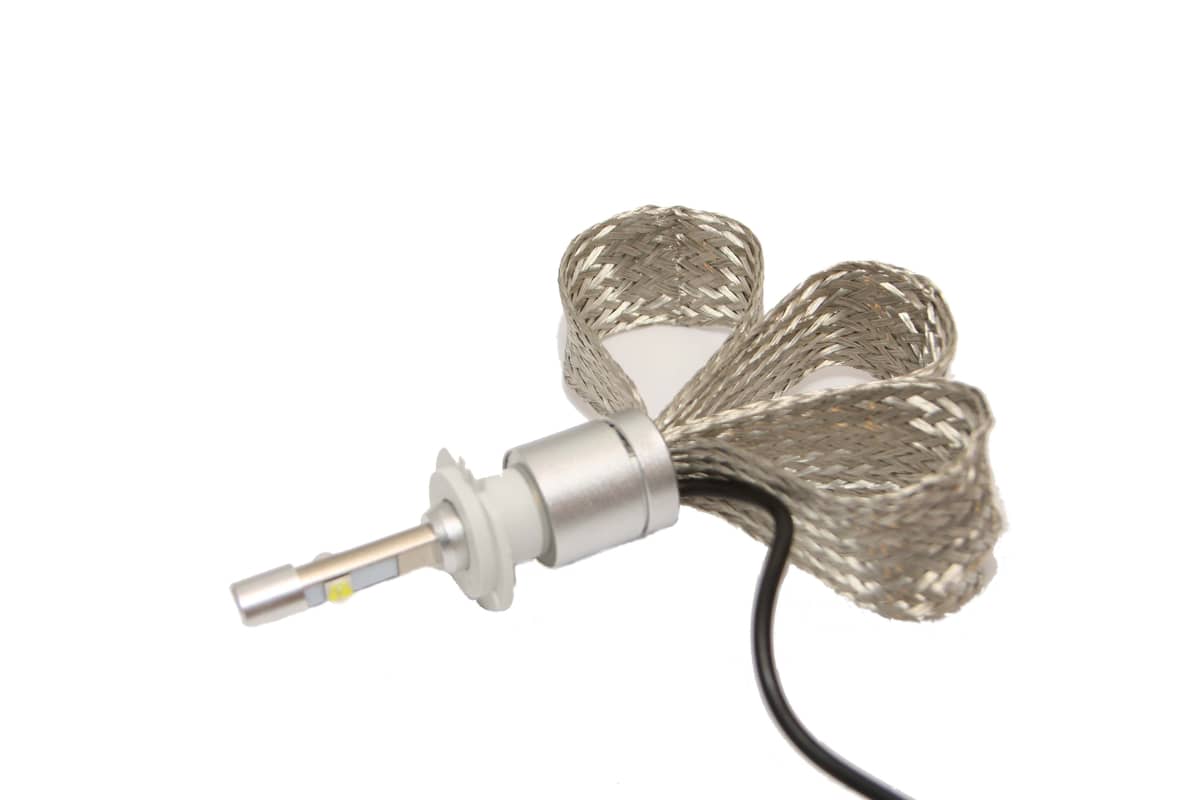

AbsoluteHID CANBUS LED Kit
  • Longest-lasting lighting upgrade (up to 30000 hours)
  • Unlike HID, no bulb replacement every 3500 hours
  • No ballast to mount (easy install!)
  • Thermal bands for maximum heat dissipation
  • Brand name diodes
  • Instant-on technology

 AbsoluteHID Technical Specifications:

35w Smart PWM CANBUS HID KIT:

Component Origin: Germany

Component Assembly: Guangzhou, China

Bulb Assembly: Taipei, Taiwan

Associated Ratings: E13, E11, ISO:9006

Input Voltage: 9~15.9 VDC  (Optimal 13.5VDC)

Output Voltage: 85 VAC

CANBUS: SMART PWM .5ohm Rev 2.1a

Wattage (RMS): 35W

Startup Amperage Draw: 4.7A

Constant Amperage Draw: 3.5A

Full brightness: 0.7 Seconds @ 10 °C, 1 bar.

Bulb Lumen Output: ~3250lum (@ 4300K)

Reverse Polarity Protection: Yes, MOSFET (internal)

Temperature Rating: -35°C - 105°C


55w Smart PWM CANBUS HID KIT:

Component Origin: Germany

Component Assembly: Guangzhou, China

Bulb Assembly: Taipei, Taiwan

Associated Ratings: E13, E11, ISO:9006

Input Voltage: 9~15.9 VDC  (Optimal 13.5VDC)

Output Voltage: 85 VAC

Temperature Rating: -30°C - 105°C

Wattage (RMS): 55W

Startup Amperage Draw: 5.6

Constant Amperage Draw: 4.5

Full brightness: 0.7 Seconds @ 10 °C, 1 bar.

Bulb Lumen Output: ~5000lum (@ 4300K)

Reverse Polarity Protection: Yes, MOSFET (internal)



4800 Lumen CANBUS LED KIT:

Component Design: CREE (Raleigh, NC, USA)

Component Assembly:  CREE (Guangzhou, China)

Associated Ratings: E4, E11, ISO:9006, ISO:14001

Input Voltage: 11.7~24.9 VDC  (Optimal 13.5VDC)

 Full brightness: Instant

Operating Lifetime: 30000 Hours

Wattage (RMS): 80W (40w LED x2)

Startup Amperage Draw: 3.2 @ 12v

Constant Amperage Draw: 3.2 @ 12v

Bulb Lumen Output: ~4800lm (@ 6000K)

Reverse Polarity Protection: Yes

Temperature Rating: -50°C - 65°C


A  Conversion kit is required for every pair of lights you wish to upgrade;These kits are fully compatible with PWM, Daytime running lights, automatic headlight systems, and all other Dodge onboard electronics.
