AbsoluteHID LED Kits

CANBUS LED Conversion Kit - 4800 Lumen

CANBUS LED Conversion Kit - 4800 Lumen

Regular price $166.00 USD
Regular price $166.00 USD Sale price $166.00 USD
Sale Sold out
Shipping calculated at checkout. Free options available.

AbsoluteHID LED conversion kits are 100% CANBUS-compatible plug-and-play replacements for factory halogen bulbs, which produce around 1700 lumens. The only thing we have that's brighter is our 55w HID kit.

Say goodbye to the struggle of finding a bright and reliable LED kit. Our 4800 lumen LED lighting system sets the standard for state-of-the-art LED technology, with features like instant start, plug-and-play DRL compatibility, automatic headlight support, and bulb warning system integration. You won't need relays, resistors, or any other components to install this kit on late-model vehicles like Dodge, Ford, Chevrolet or just about any other canadian-spec car, truck or motorbike. These products can also be used in the latest industrial and agricultural sectors. Our LED conversion kits use only the best brand-name components and are only sold domestically in Canada.

Our top-of-the-line LED conversion kit features the latest CREE XHP-50 LED and Phillips Lumiled M4 diodes. Single-stage kits (for vehicles with separate low and high beams) produce 4800 lumens full-time, while two-stage kits (for vehicles with single high and low beam bulbs) produce 2400 lumens for low beam and 4800 lumens for high beam. Each kit includes two bulbs, so you'll double the lumen output.

Other LED products on the market come with fans that have a high failure rate in engine bay environments. Some have large heatsinks that require extensive modifications to headlight housings. Others still have no cooling solution at all, a clear indication they don't use enough power to be bright. Laws of thermodynamics aren't meant to be broken, after all.

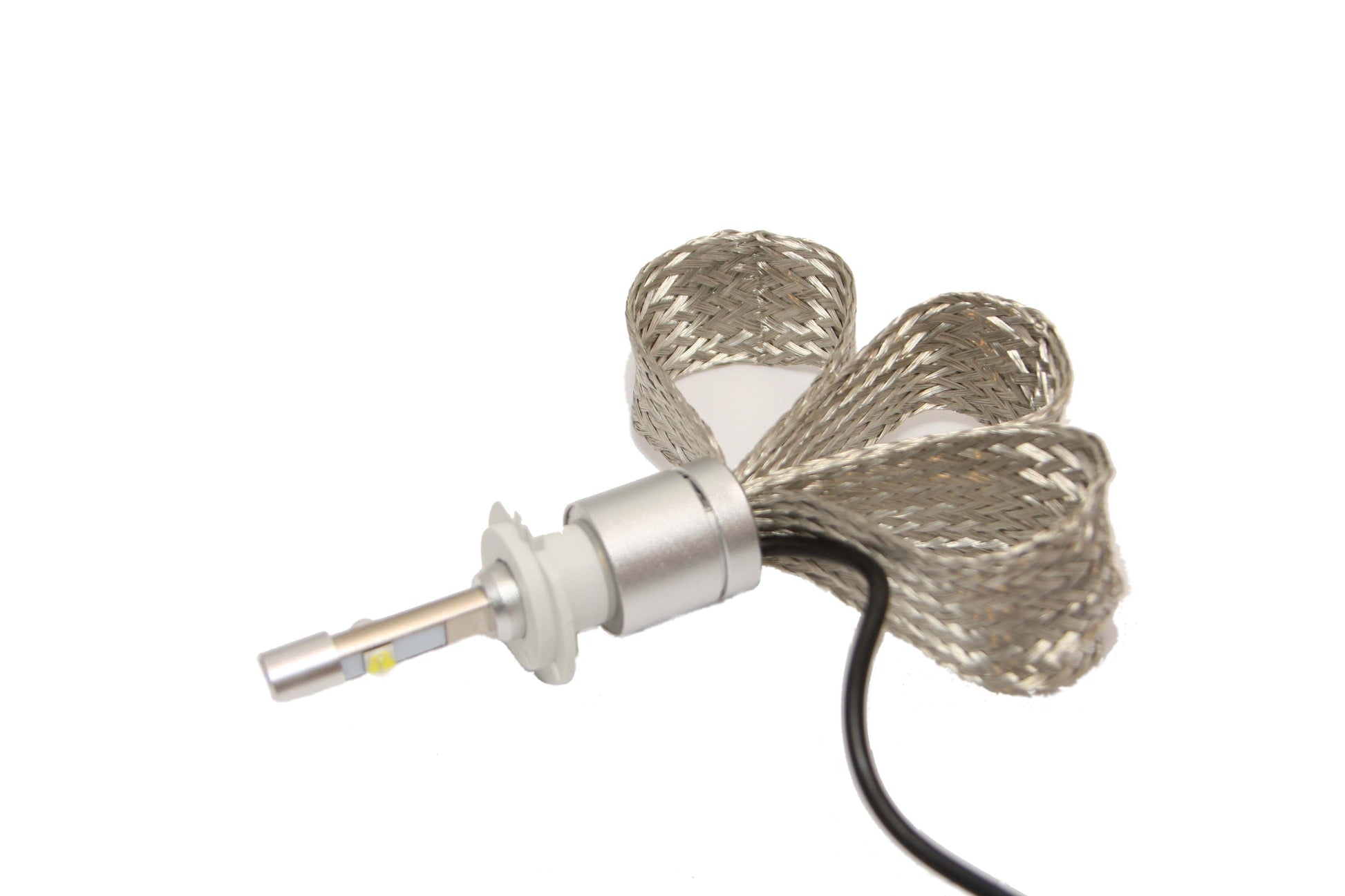

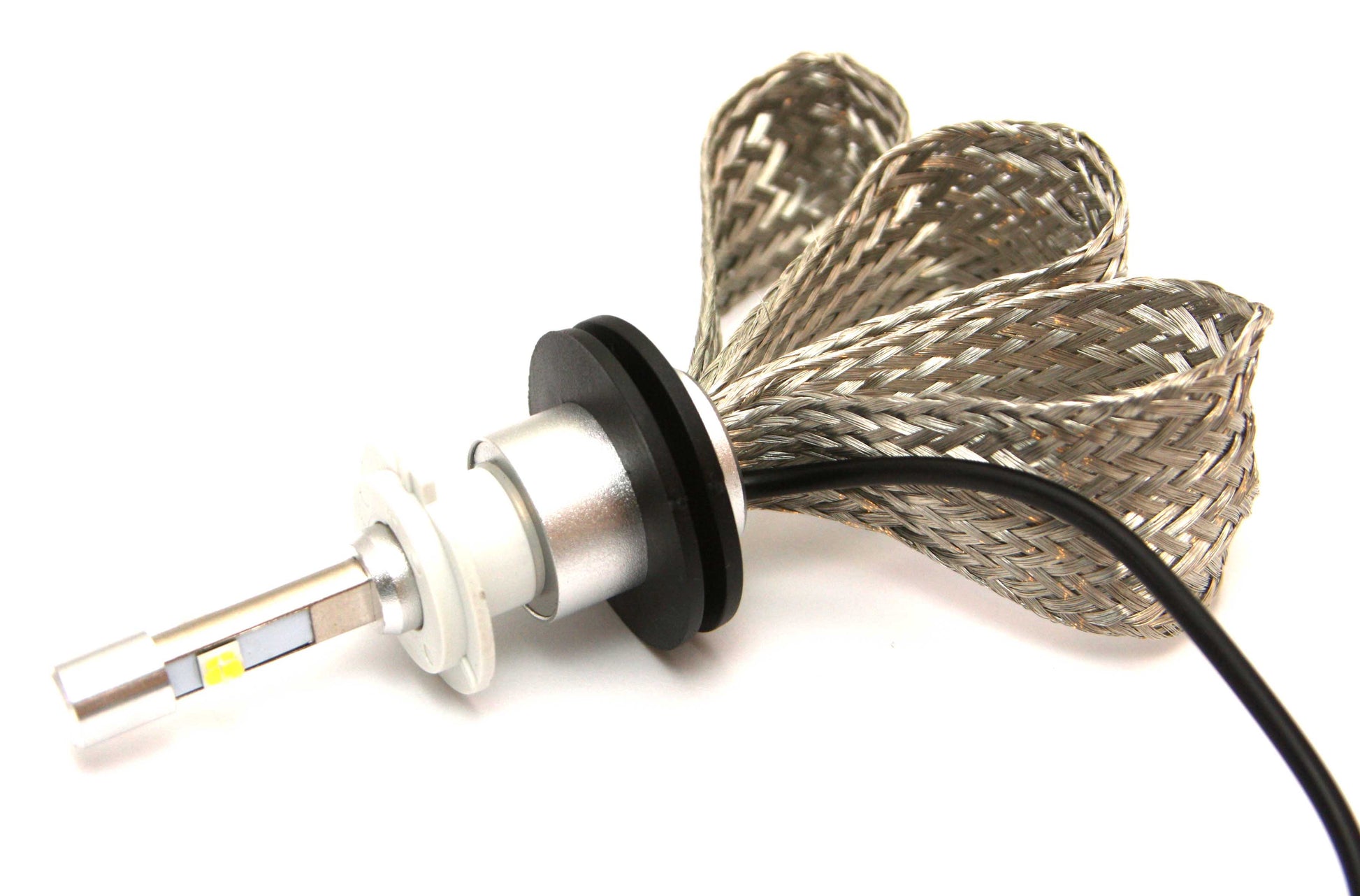

Our LED conversion kit uses thermal bands for heat dissipation for maximum heat dispersion without the need for a fan or heatsinks. The cooling solution on an LED kit is as important as it diode, as heat kills diodes fast. We've used this exact type of passive cooling solution since we sold our first LED kit in 2016. The diodes themselves have come a long way, and are now much brighter.

LED kits are only available in 6000K:

All AbsoluteHID LED conversion kits come with a 1-year warranty (with lifetime warranty options), free tech support, installation manual, and colour guarantee.

For any questions about LED conversion kits or other products we carry, don't hesitate to email, chat or call us. If you're not sure which bulb type is right for your vehicle, click here to check compatibility.

Technical Info:

Component Design: CREE (Raleigh, NC, USA)

Component Assembly:  CREE (Guangzhou, China)

Associated Ratings: E4, E11, ISO:9006, ISO:14001

Input Voltage: 11.7~24.9 VDC  (Optimal 13.5VDC)

 Full brightness: Instant

Operating Lifetime: 30000 Hours

Wattage (RMS): 40w LED x2

Startup Amperage Draw: 3.2 @ 12v

Constant Amperage Draw: 3.2 @ 12v

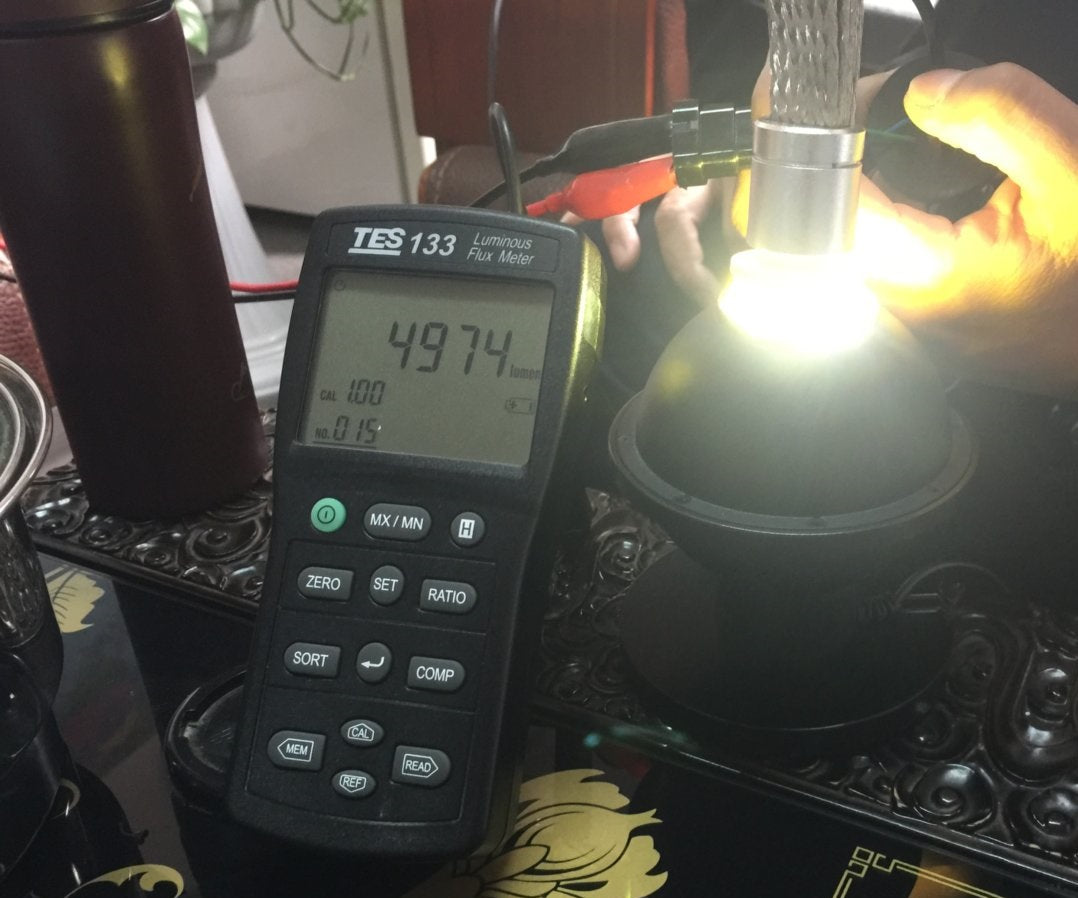

Bulb Lumen Output: ~4800lm (@ 6000K)

Reverse Polarity Protection: Yes

A LED Conversion kit is required for every pair of lights you wish to convert to LED. These kits are fully compatible with PWM, Daytime running lights, automatic headlight systems, and can accept input voltages of both 12v and 24v. These LEDs are shock proof and dust proof, and meet or exceed IEC standard 60529 and have E4, E11 ratings, made in ISO:9006 compliant facilities.
