Ford Edge 2015 - 2021 HID Kit & LED Conversion
Ford Edge 2015 - 2021 HID Kit & LED Conversion
Couldn't load pickup availability

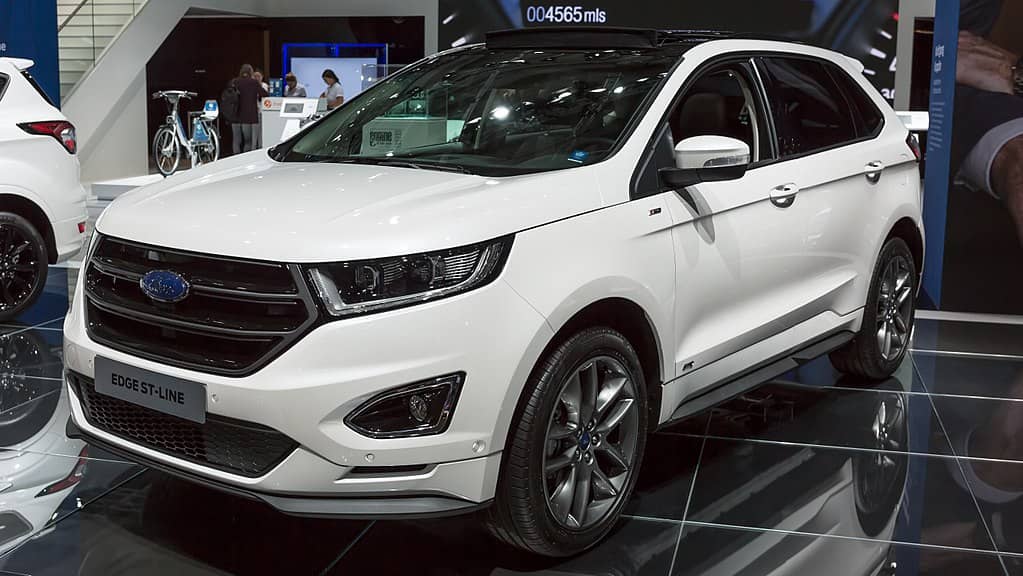

This product page lists HID & LED's for the 2015 to 2021 Ford Edge. For other years please click here or Contact Us for more assistance.

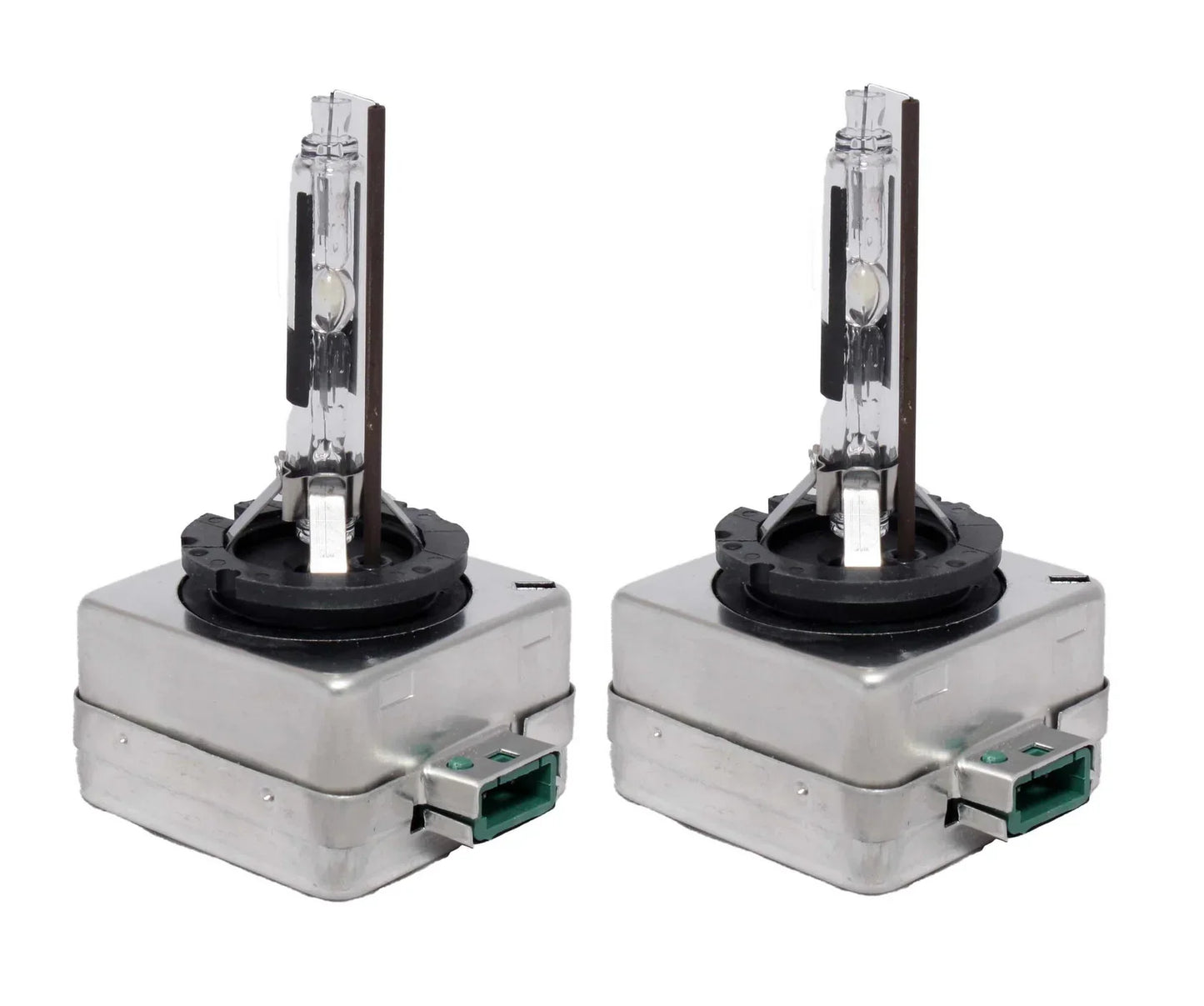

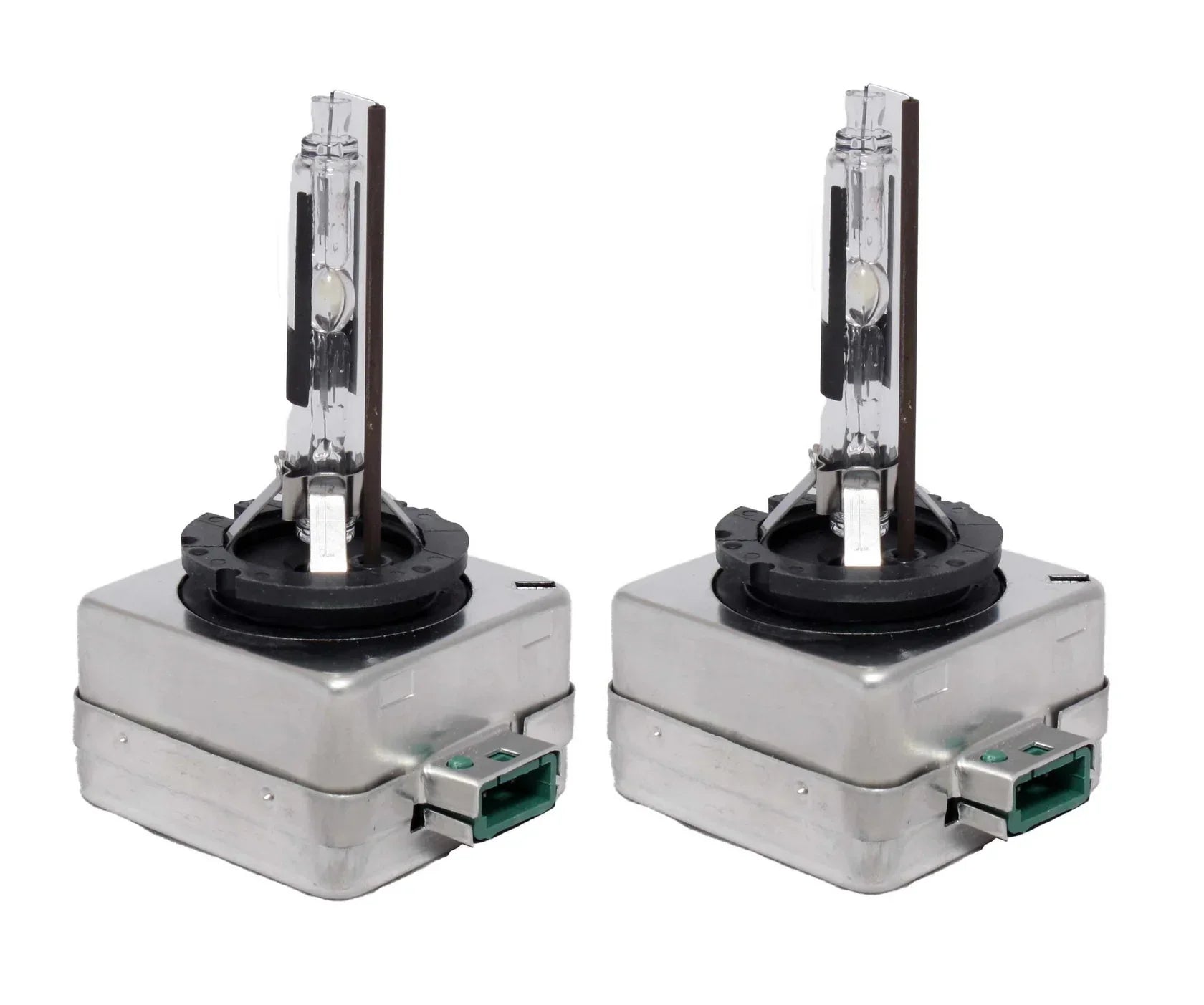

This generation Edge came in two models: Factory-installed HID's, and regular halogen headlights. Factory HID models use D3S bulbs, available in all colours. Factory HID models use a single bulb for high and low.

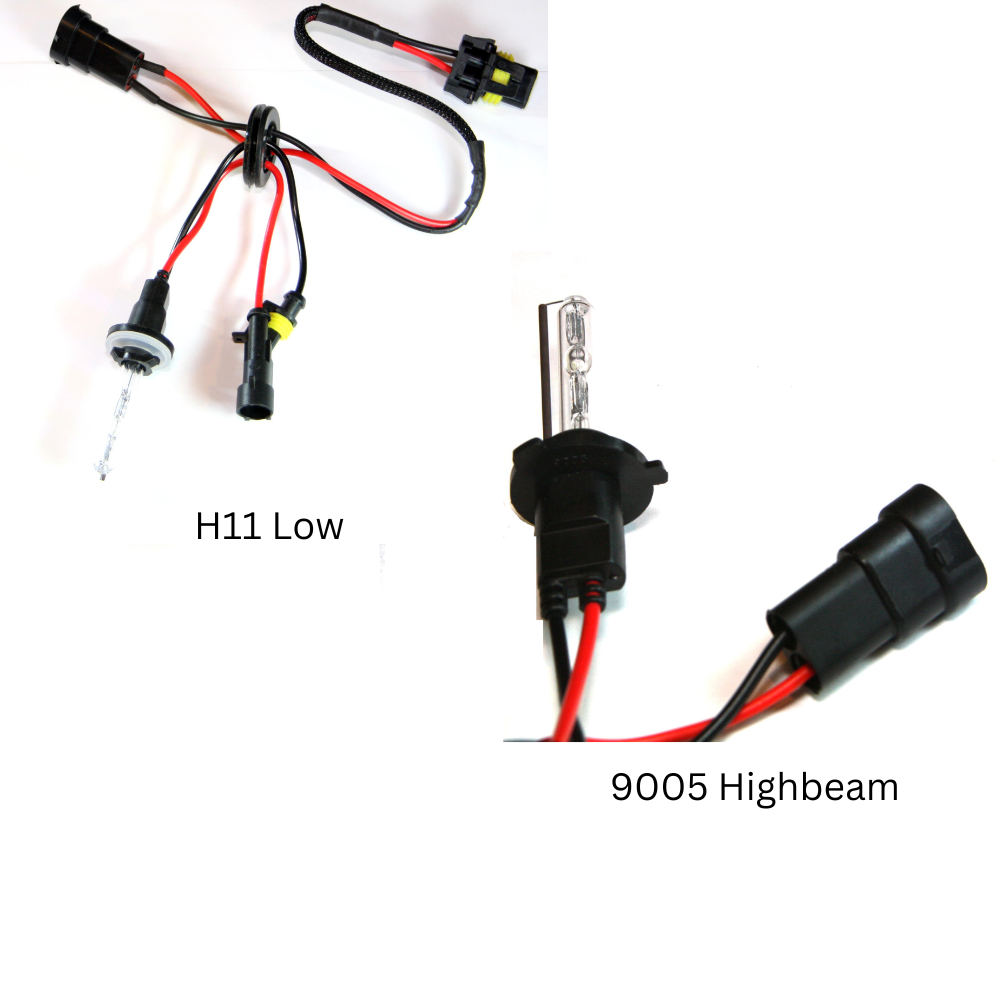

Factory halogen Ford Edges use H11 lowbeam bulbs, 9005 highbeam bulbs. Lowbeams can be upgraded plug and play with both HID and LED. Highbeams can only be upgraded to LED because of the Daytime Running Light system. LED's come only in 6000K, if you are matching a lowbeam and/or foglight kit to LED highs, consider a higher kelvin rating for your HID's.
55W HID's are brightest but can have cold-start issues below -30C. If you live in northern Canada, consider a 35w HID kit or LED's. For most Canadians, a lowbeam 55w HID is the best place to start. If you live in a rural area, highbeam LED's can be added. This generation Edge does not have foglights.
AbsoluteHID Recommends 4300K (White) Factory colour HID's for all applications. White HID's are brighter, less distracting to other drivers and offer maximum visibility. LED kits come ONLY in 6000K
- Smart PWM CANBUS HID Kits (Plug & Play)
- FREE Nationwide Canadian shipping
- AC HIDs, Wattage is RMS not peak
- Lumens ratings per bulb, not kit
- ALL parts for install included
- Built-in CANBUS, nothing else needed
- Laser aligned UV cut Quarts bulbs
- NO Relays or dangerous Resistors
- 100% Shock-proof and Water-proof
- Installation Manual Included
- Warranty Covers ALL Components
- Canadian DRL Compatible (As indicated)
- Shipped from Canada (NO DUTY!)
- Smart PWM CANBUS LED Kits (Plug & Play)
- Free Tracking Number & Insurance
- Live Chat Support with Trained Staff
- Questions? Call us! (647) 547-1962

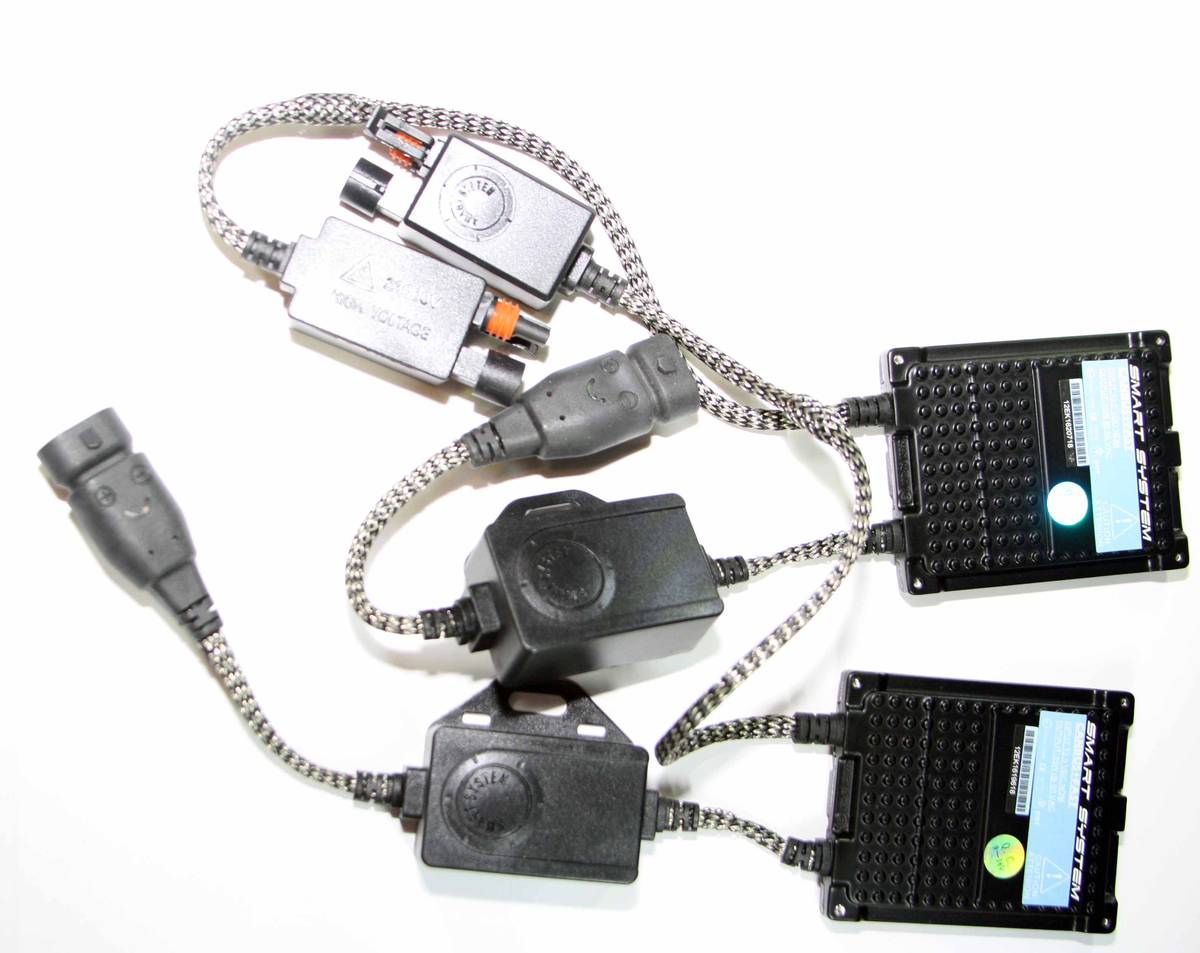

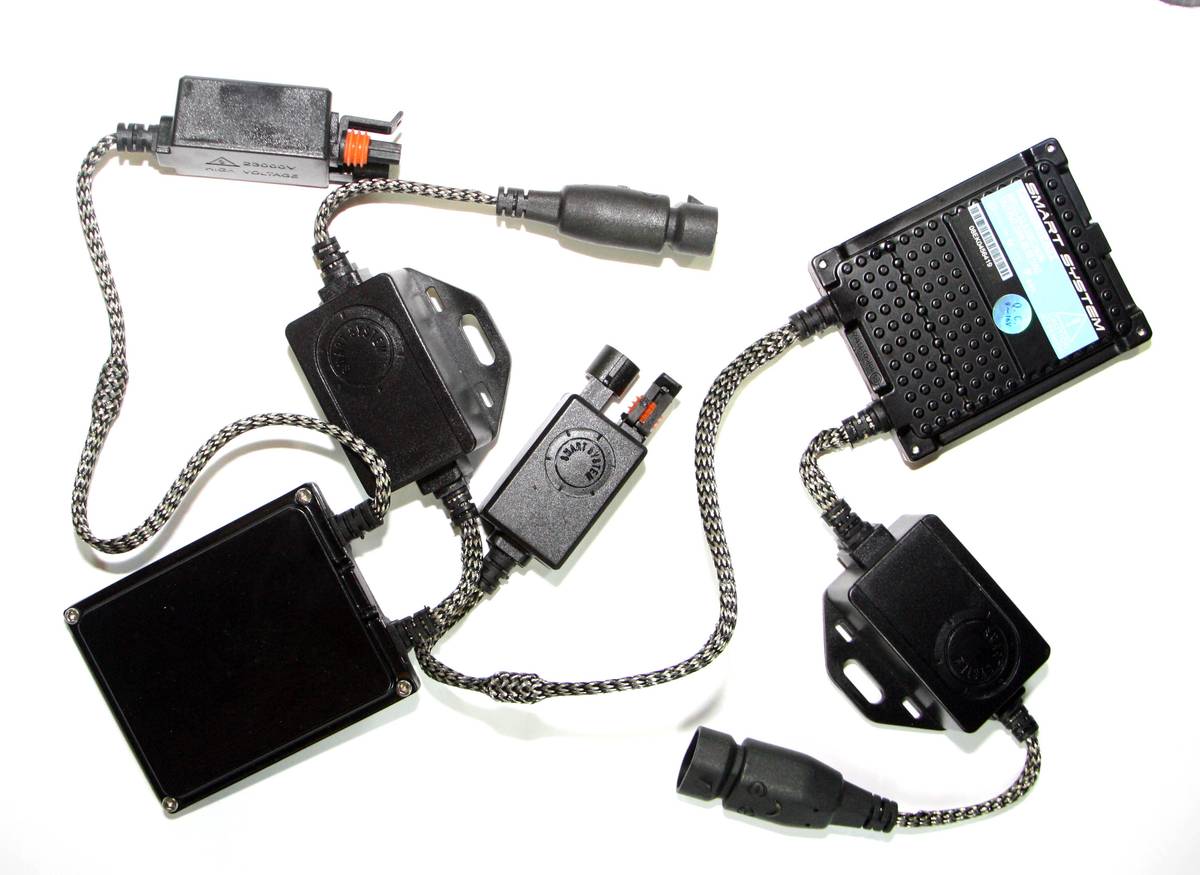

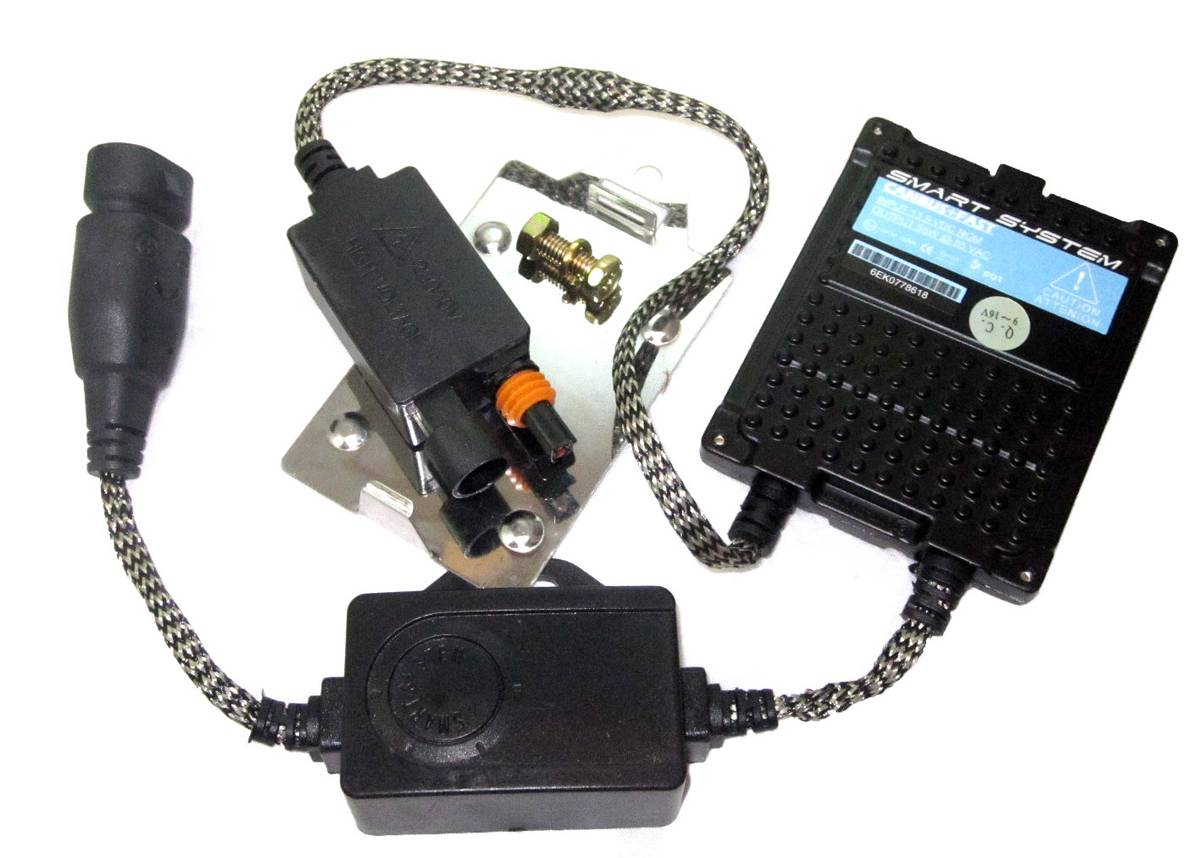

AbsoluteHID Smart PWM CANBUS HID Kits
- CANBUS prevents vehicle ECU from detecting HID Kit
- Smart PWM prevents TIPM turning off kit after 10min
- Digitally regulated ballasts extends bulb life (up to 4 years)
- Smart PWM HID kits have the fastest warm-up time (Achieve 80% brightness within 1 second)
- NO Flickering
- Standard brightness 35w & Max brightness 55w kits available
- Factory halogen bulbs are 55w
- 55w kits do not work well below -30C
- 35w kits work well to -35C

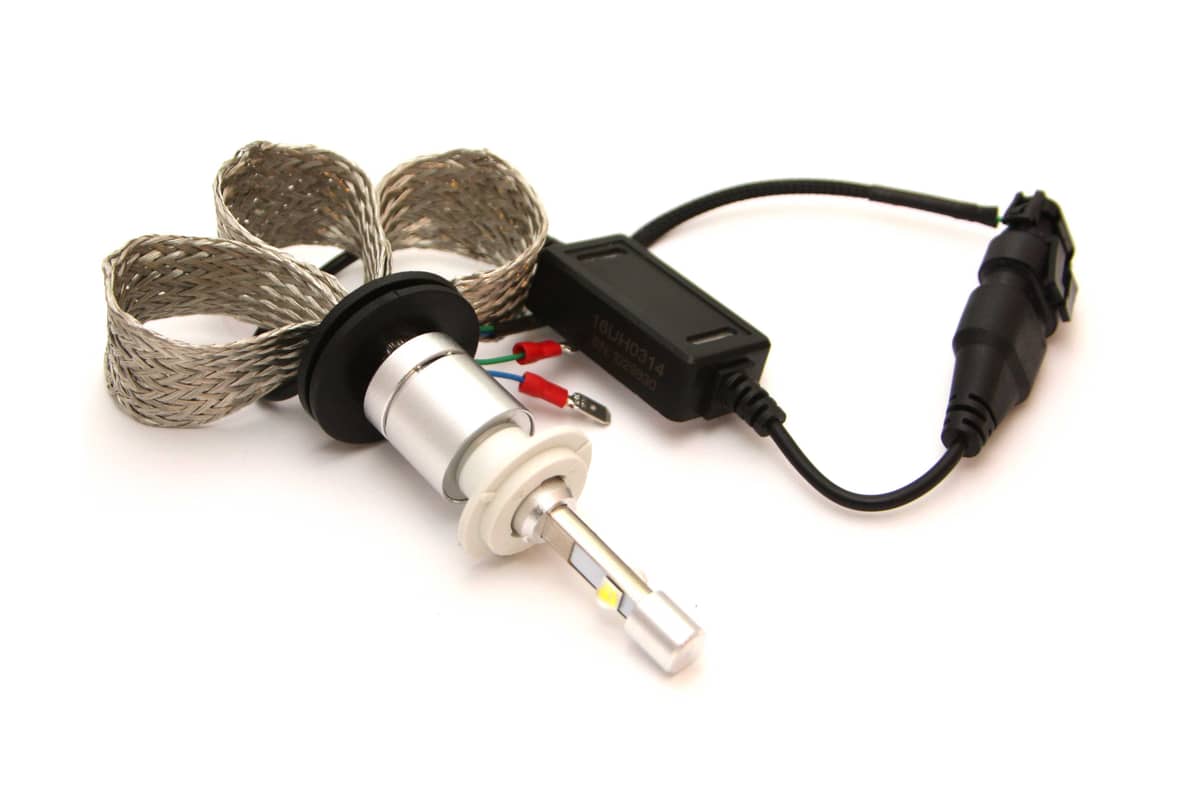

- Longest lasting lighting upgrade (up to 30000 hours)
- Unlike HID, no bulb replacement every 3500 hours
- No ballast to mount (easy install!)

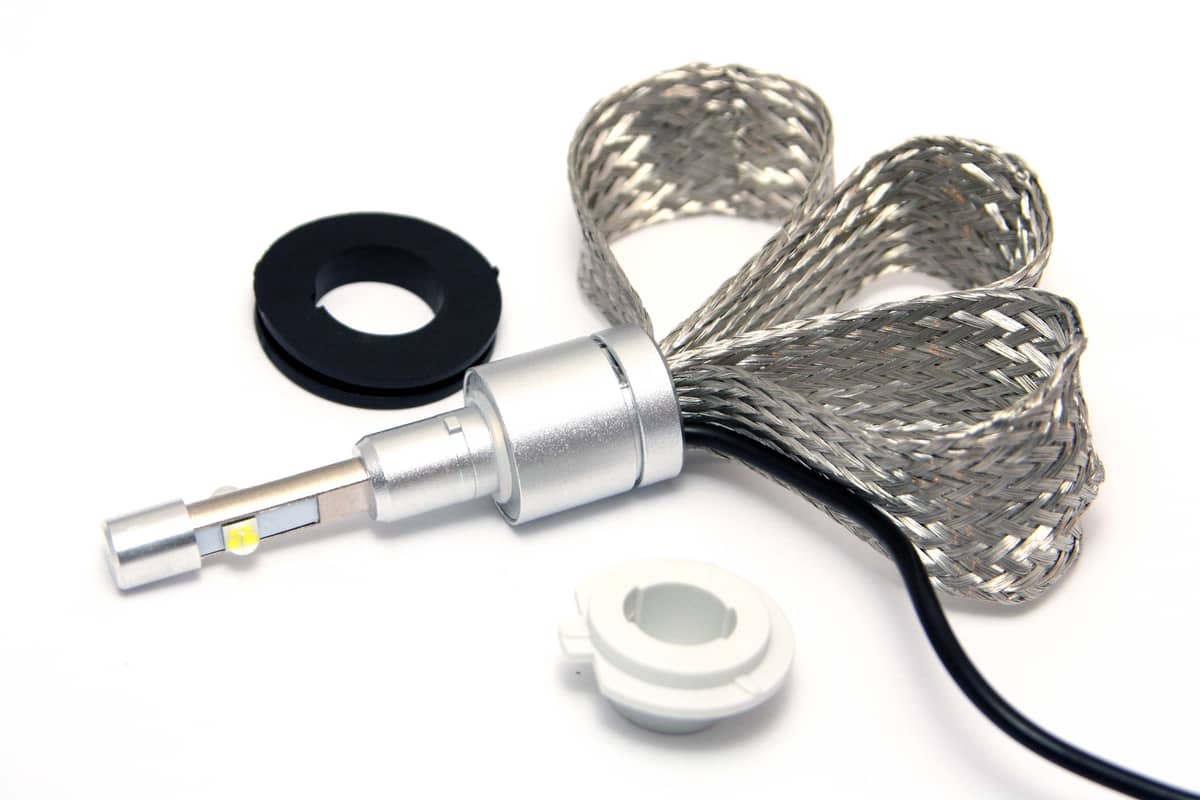

- Thermal bands for maximum heat dissipation
- Brand name diodes
- Instant-on technology
AbsoluteHID Technical Specifications:
|
Component Origin: Germany Component Assembly: Guangzhou, China Bulb Assembly: Taipei, Taiwan Associated Ratings: E13, E11, ISO:9006 Input Voltage: 9~15.9 VDC (Optimal 13.5VDC) Output Voltage: 85 VAC CANBUS: SMART PWM .5ohm Rev 2.1a |
Wattage (RMS): 35W Startup Amperage Draw: 4.7A Constant Amperage Draw: 3.5A Full brightness: 0.7 Seconds @ 10 °C, 1 bar. Bulb Lumen Output: ~3250lum (@ 4300K) Reverse Polarity Protection: Yes, MOSFET (internal) Temperature Rating: -35°C - 105°C |
|
Component Origin: Germany Component Assembly: Guangzhou, China Bulb Assembly: Taipei, Taiwan Associated Ratings: E13, E11, ISO:9006 Input Voltage: 9~15.9 VDC (Optimal 13.5VDC) Output Voltage: 85 VAC Temperature Rating: -30°C - 105°C |
Wattage (RMS): 55W Startup Amperage Draw: 5.6 Constant Amperage Draw: 4.5 Full brightness: 0.7 Seconds @ 10 °C, 1 bar. Bulb Lumen Output: ~5000lum (@ 4300K) Reverse Polarity Protection: Yes, MOSFET (internal) |
|
Component Design: CREE (Raleigh, NC, USA) Component Assembly: CREE (Guangzhou, China) Associated Ratings: E4, E11, ISO:9006, ISO:14001 Input Voltage: 11.7~24.9 VDC (Optimal 13.5VDC) Full brightness: Instant Operating Lifetime: 30000 Hours |
Wattage (RMS): 80W (40w LED x2) Startup Amperage Draw: 3.2 @ 12v Constant Amperage Draw: 3.2 @ 12v Bulb Lumen Output: ~4800lm (@ 6000K) Reverse Polarity Protection: Yes Temperature Rating: -50°C - 65°C |
A Conversion kit is required for every pair of lights you wish to upgrade;These kits are fully compatible with PWM, Daytime running lights, automatic headlight systems, and all other Ford onboard electronics.
