Dodge Ram 2013 - 2023 Reflector HID Kits & LED Conversions

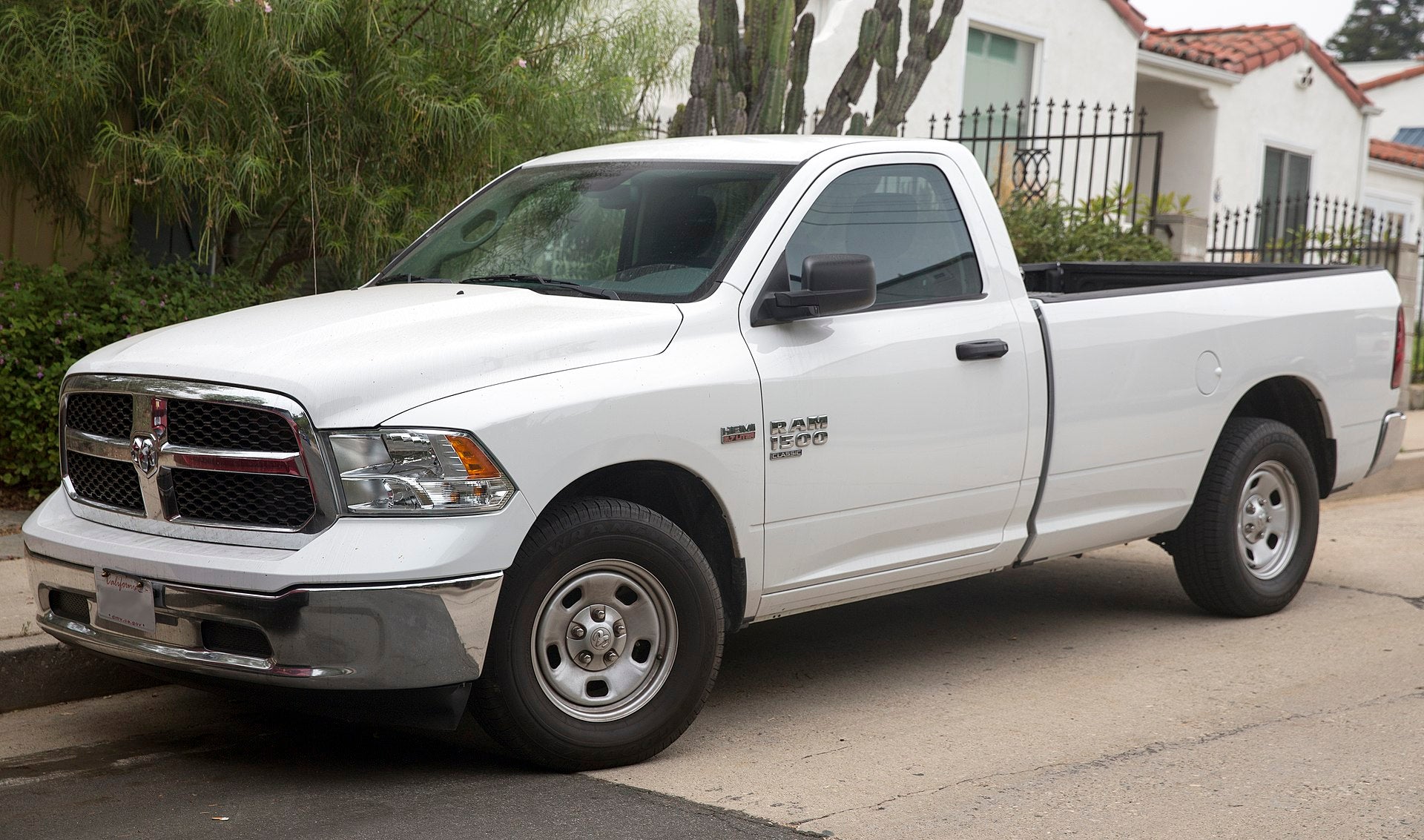

This product page lists HID & LEDs for facelifted 4th generation (all 2013-19, and 2019-23 "classic") Dodge Rams with Reflector headlights. Reflector headlights look like standard headlights and do not have a glass sphere in them. Click here for trucks with projectors & other year Rams. Please Contact Us if you have any questions or if we may be of more assistance.

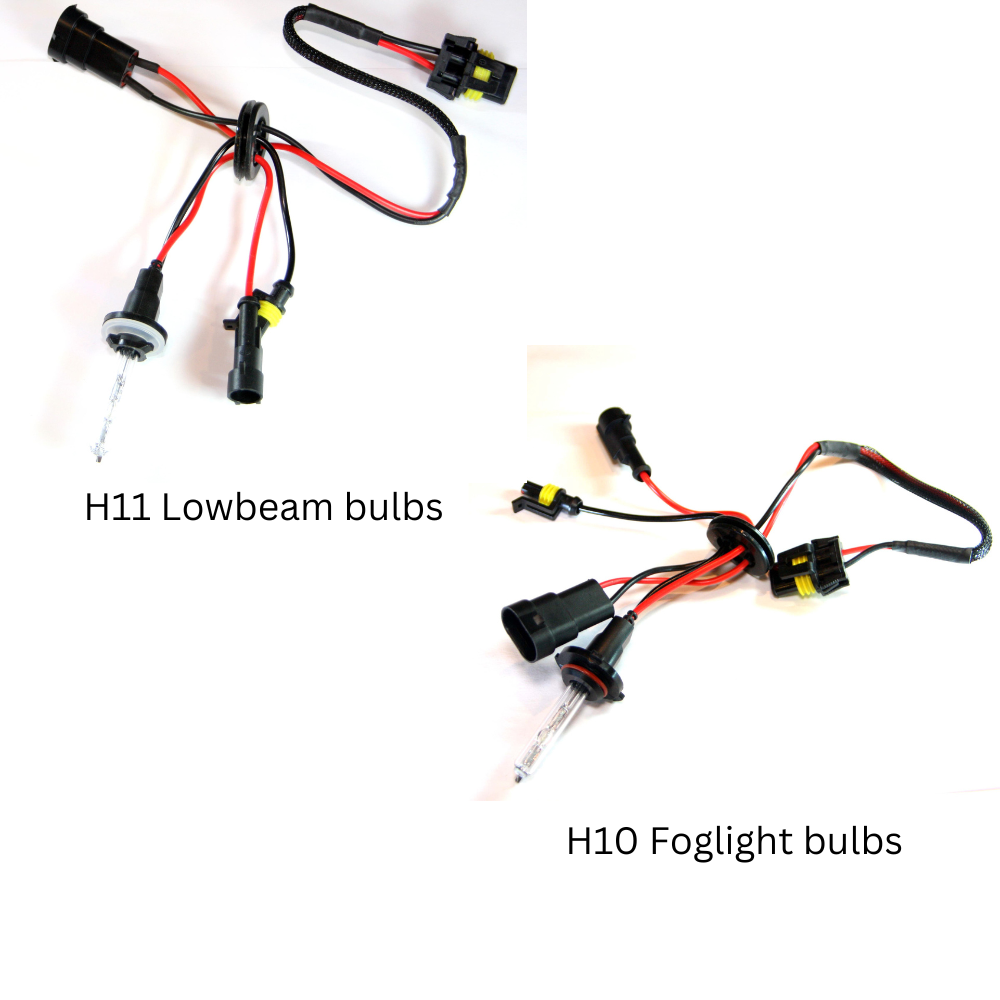

This model ram uses H11 lowbeam bulbs, 9005 highbeam bulbs and H10 foglight bulbs. Lowbeams and foglights are plug and play with both our 35w and 55w HID kits, and our LEDs. All halogen bulbs on this truck are 55w from factory.

The highbeams on a reflector Ram function as Daytime Running Lights on Canadian model trucks and cannot be upgraded plug and play. If you have disabled your DRL using a programmer or AlphaOBD, contact sales to discuss a highbeam upgrade.

New ram trucks use Pulse Width Modulation to extend the life of halogen bulbs. This works by flashing the lights on and off several times a second, which is invisible to the human eye. When using a standard CANBUS hid kit, the truck will detect a fault with the PWM system and turn the lights off after 10-15 minutes. Enter Smart PWM technology. While our US competitors beat us to the market with Smart PWM ballasts, we now have the most reliable and cost-effective products for the Canadian market. These kits work plug and play, and solve issues regular CANBUS kits have on these trucks. Thanks to our purchasing power, we are offering these products at a substantially lower price point than our competition.

55W HID's are the brightest kit available, but can have cold-start issues below -30C. If you live in northern Canada, consider an LED kit. LEDs produce nearly as much light as our 55w HID kit at a lower price point, have a much longer replacement interval, and offer instant-on performance. LED's are available only in 6000K. For most Canadians, a 55w kit in 4300K, or a CANBUS LED kit is the optimal choice for the lowbeams. For city driving, a lowbeam conversion is generally sufficient.  HID's are available in all the following colours:

• Smart PWM CANBUS HID Kits (Plug & Play)
• No splicing wires
• Works with automatic headlights and auto highbeams
• FREE Nationwide Canadian shipping

• AC HIDs, Wattage is RMS not peak
• Lumens ratings per bulb, not kit
• ALL parts for install included
• Built-in CANBUS, nothing else needed
• Laser aligned UV cut Quarts bulbs
• 100% Shock-proof and Water-proof
• Installation Manual Included
• Warranty Covers ALL Components
• Canadian DRL Compatible (As indicated)
• Shipped from Canada (NO DUTY!)

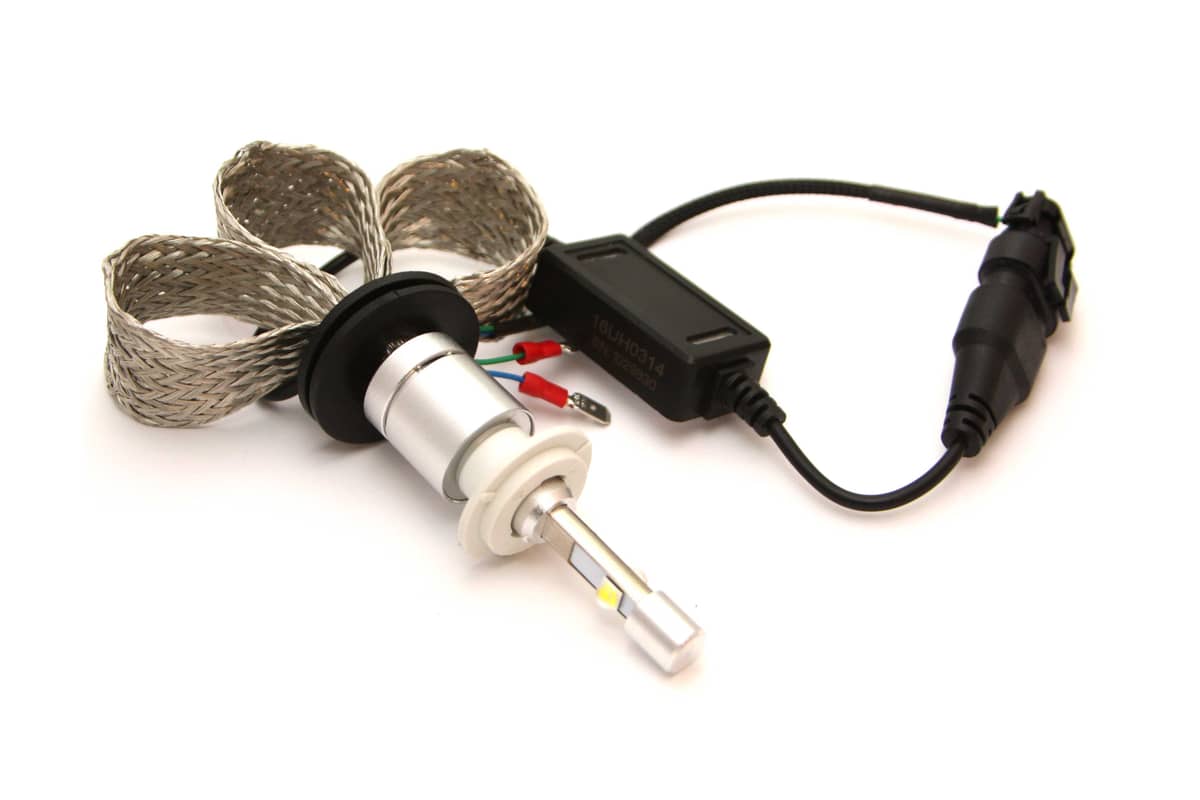

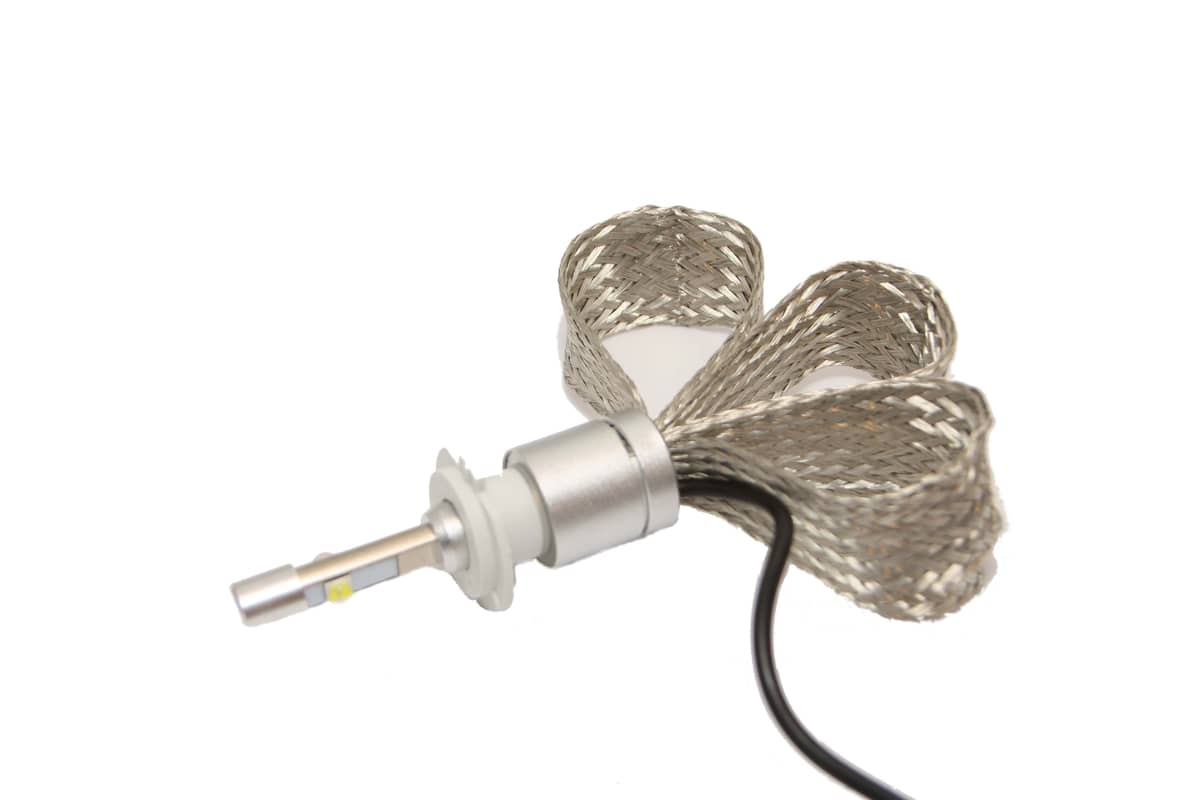

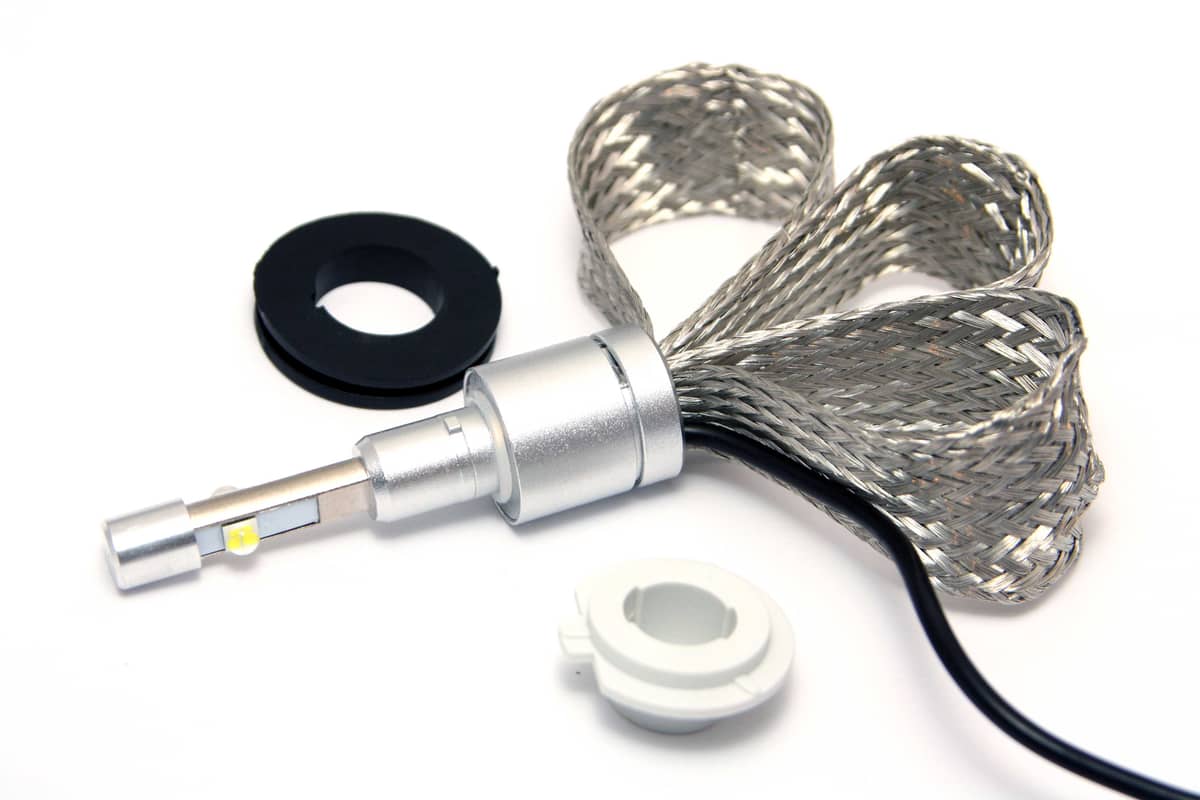

• Smart PWM CANBUS LED Kits (Plug & Play)
• Free Tracking Number & Insurance
• Live Chat Support with Trained Staff
• Questions? Call us! (647) 547-1962
• XM radio equipped vehicles require relay (included)

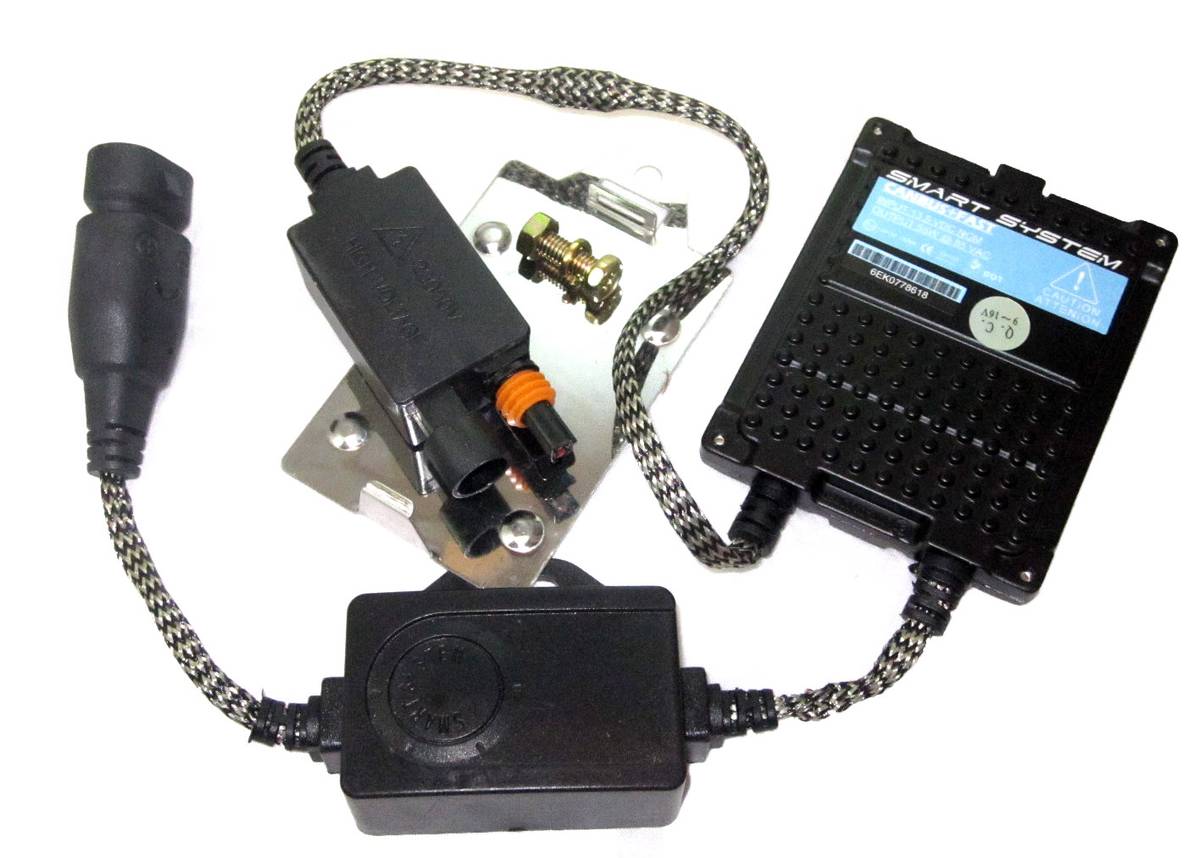

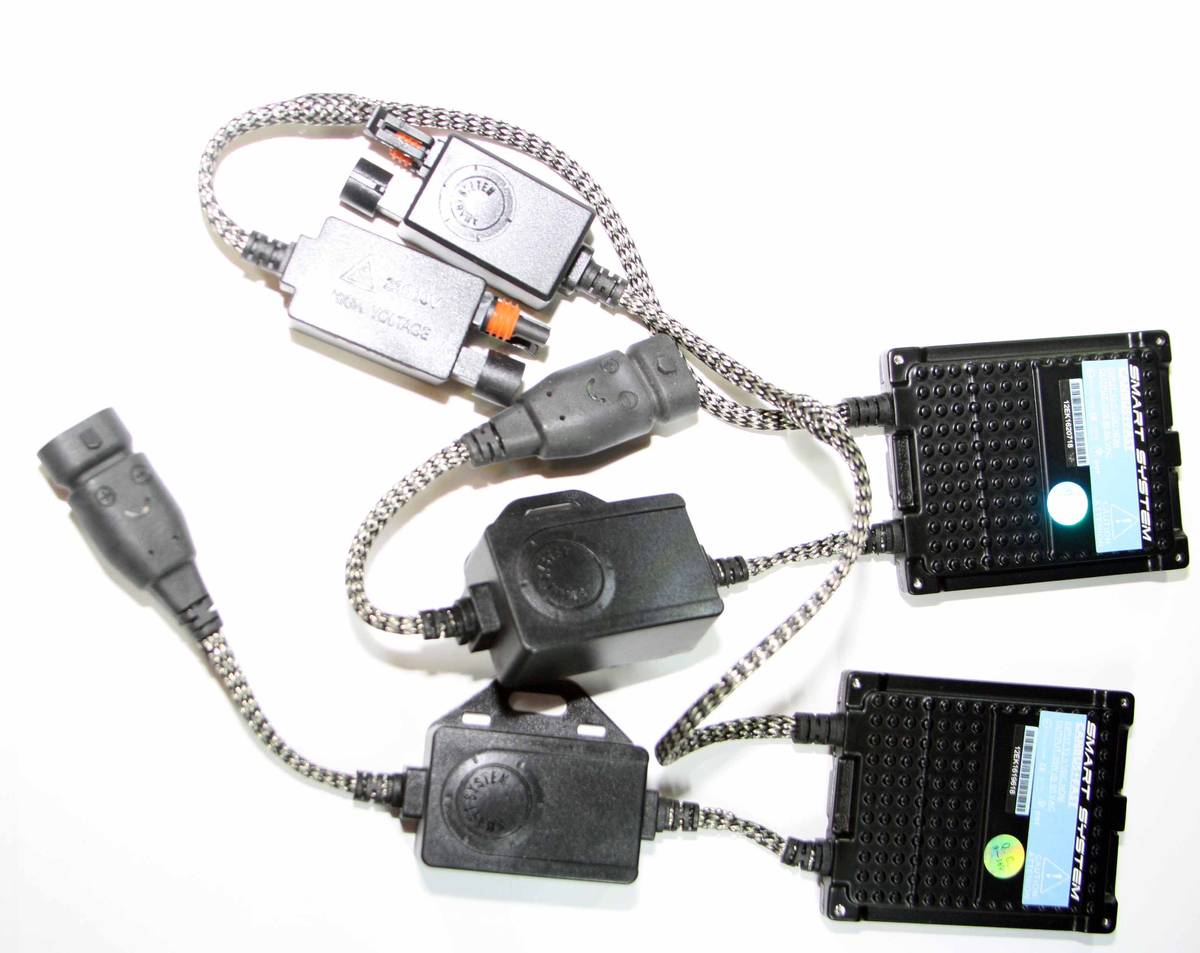

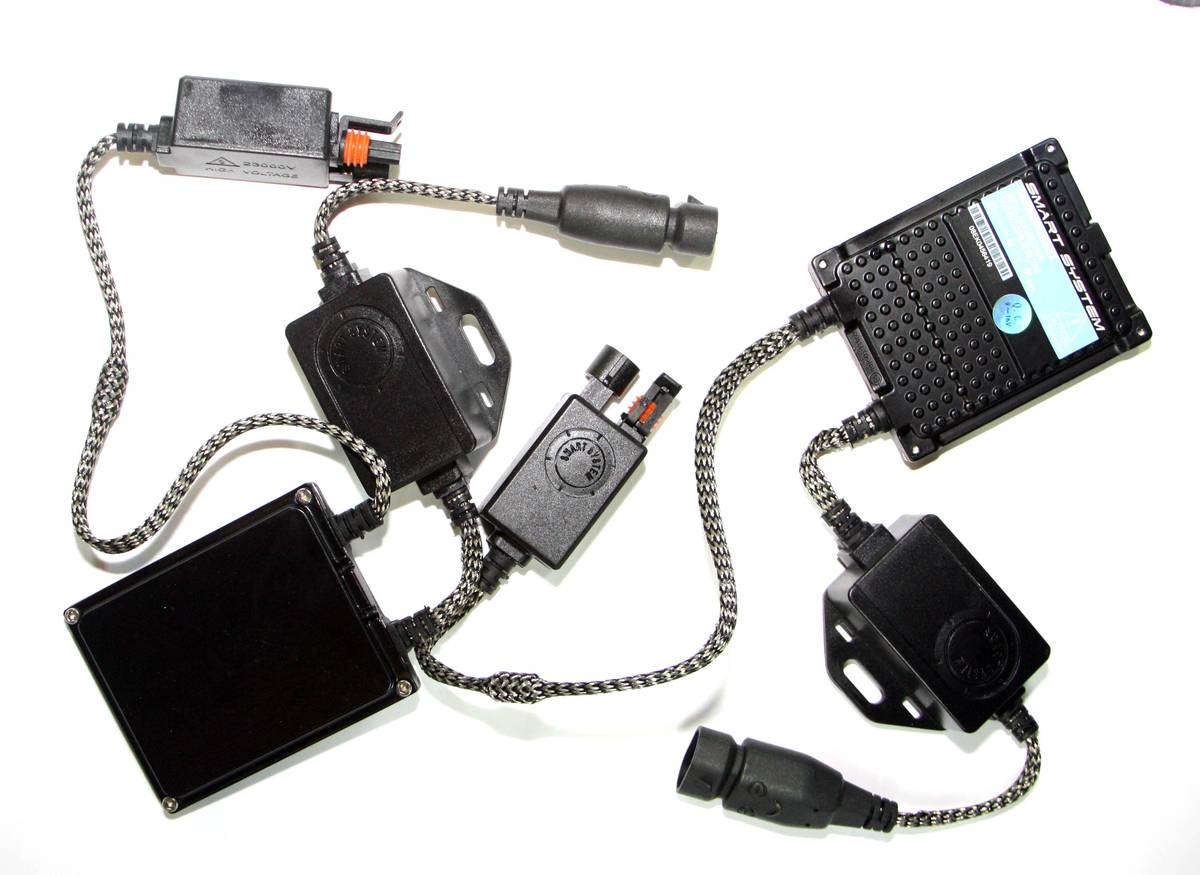

AbsoluteHID Smart PWM CANBUS HID Kits

• CANBUS prevents vehicle ECU from detecting HID Kit

• Smart PWM prevents TIPM turning off kit after 10min

• Digitally regulated ballasts extends bulb life (up to 4 years)

• Smart PWM HID kits have the fastest warm-up time (Achieve 80% brightness within 1 second)
• NO Flickering

• Standard brightness 35w & Max brightness 55w kits available

• Factory halogen bulbs are 55w

• 55w kits do not work well below -30C
• 35w kits work well to -35C

• Longest lasting lighting upgrade (up to 30000 hours)
• Unlike HID, no bulb replacement every 3500 hours
• No ballast to mount (easy install!)
• Thermal bands for maximum heat dissipation
• Brand name diodes
• Instant-on technology

 AbsoluteHID Technical Specifications:

35w Smart PWM CANBUS HID KIT:

55w Smart PWM CANBUS HID KIT:

4800 Lumen CANBUS LED KIT:

A  Conversion kit is required for every pair of lights you wish to upgrade;These kits are fully compatible with PWM, Daytime running lights, automatic headlight systems, and all other Dodge onboard electronics.
