Chevrolet Silverado 2007 - 2015 HID Kits & LED Conversions
Chevrolet Silverado 2007 - 2015 HID Kits & LED Conversions
Couldn't load pickup availability

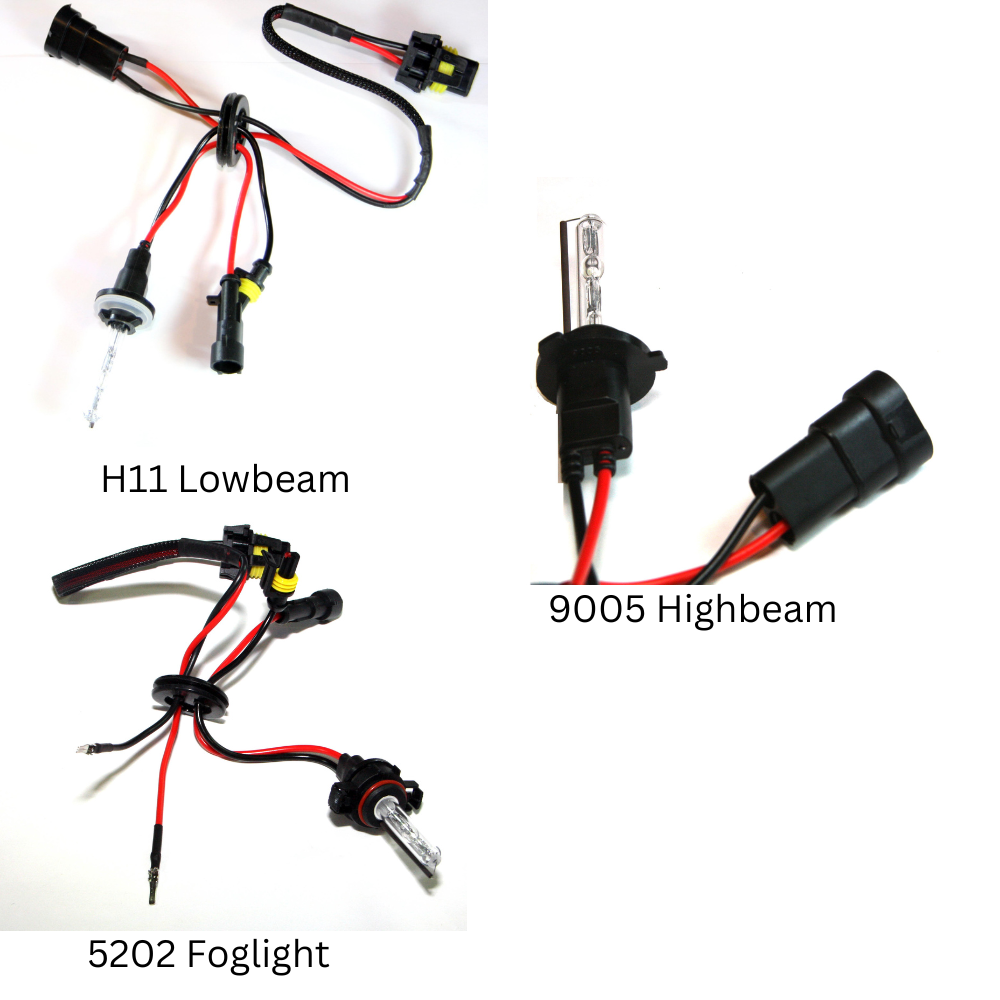

Silverado's use a h11 lowbeam bulb, 9005 highbeam bulb and a 5202 foglight bulb. Lowbeams are plug and play with all kits, highbeams are plug and play only with LED unless DRL is disabled prior to installation. LED's come only in 6000K, if you are matching a lowbeam and/or foglight kit to LED highs, consider a higher kelvin rating for your HID's. Foglights are plug and play with 35w HID and LED. 55w HID's run too hot for 5202 housings. Ask for help! Click here for other types of silverados, or Contact Us for more assistance.
Smart PWM technology is here. While our US competitors beat us to the market with Smart PWM ballasts, we now have the most reliable and cost-effective products for the Canadian market. These kits work plug and play. No relays, no resistors, no external parts.
Thanks to our purchasing power, we are offering these products at a substantially lower price point than our competition.
55W HID's are brightest but can have cold-start issues below -30C. If you live in northern Canada, consider a 35w HID kit or an LED conversion.
AbsoluteHID Recommends 4300K (White) Factory colour HID's for all applications. White HID's are brighter, less distracting to other drivers and offer maximum visibility. LED kits come ONLY in 6000K
- Smart PWM CANBUS HID Kits (Plug & Play)
- FREE Nationwide Canadian shipping
- AC HIDs, Wattage is RMS not peak
- Lumens ratings per bulb, not kit
- ALL parts for install included
- Built-in CANBUS, nothing else needed
- Laser aligned UV cut Quarts bulbs
- NO Relays or dangerous Resistors
- 100% Shock-proof and Water-proof
- Installation Manual Included
- Warranty Covers ALL Components
- Canadian DRL Compatible (As indicated)
- Shipped from Canada (NO DUTY!)

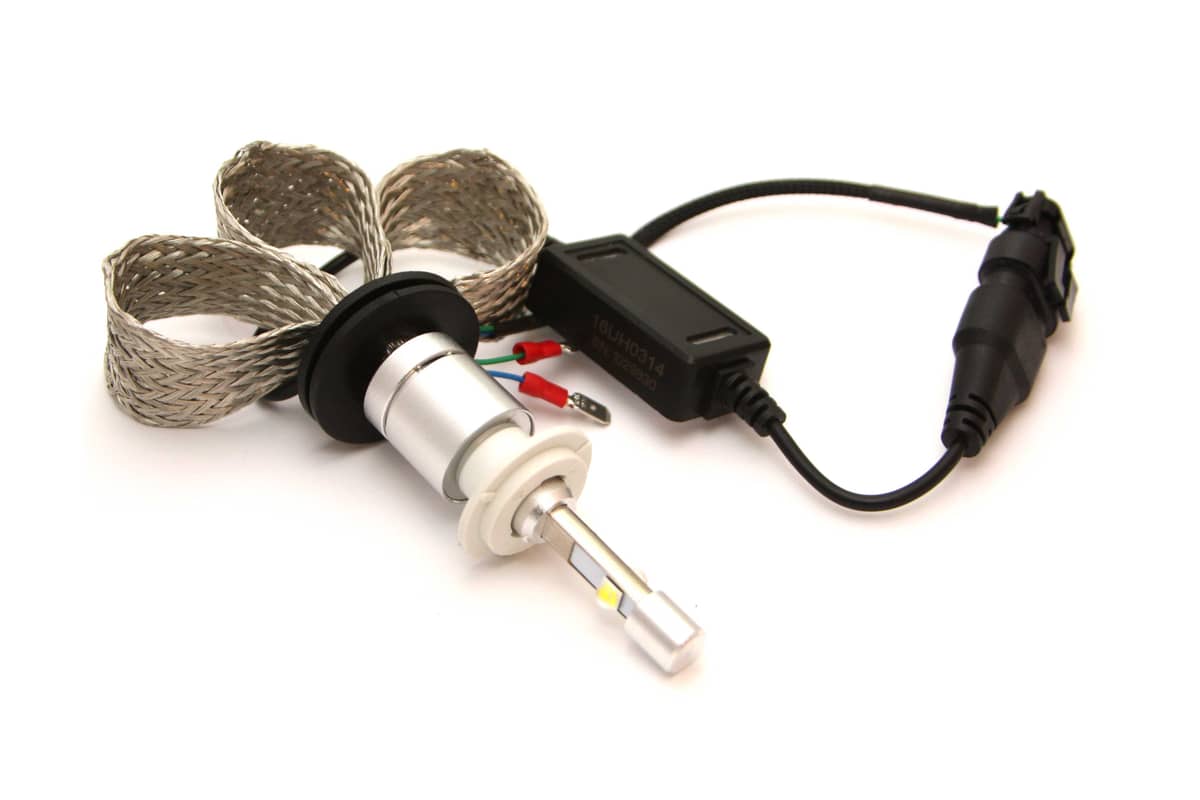

- Smart PWM CANBUS LED Kits (Plug & Play)
- Free Tracking Number & Insurance
- Live Chat Support with Trained Staff
- Questions? Call us! (647) 547-1962

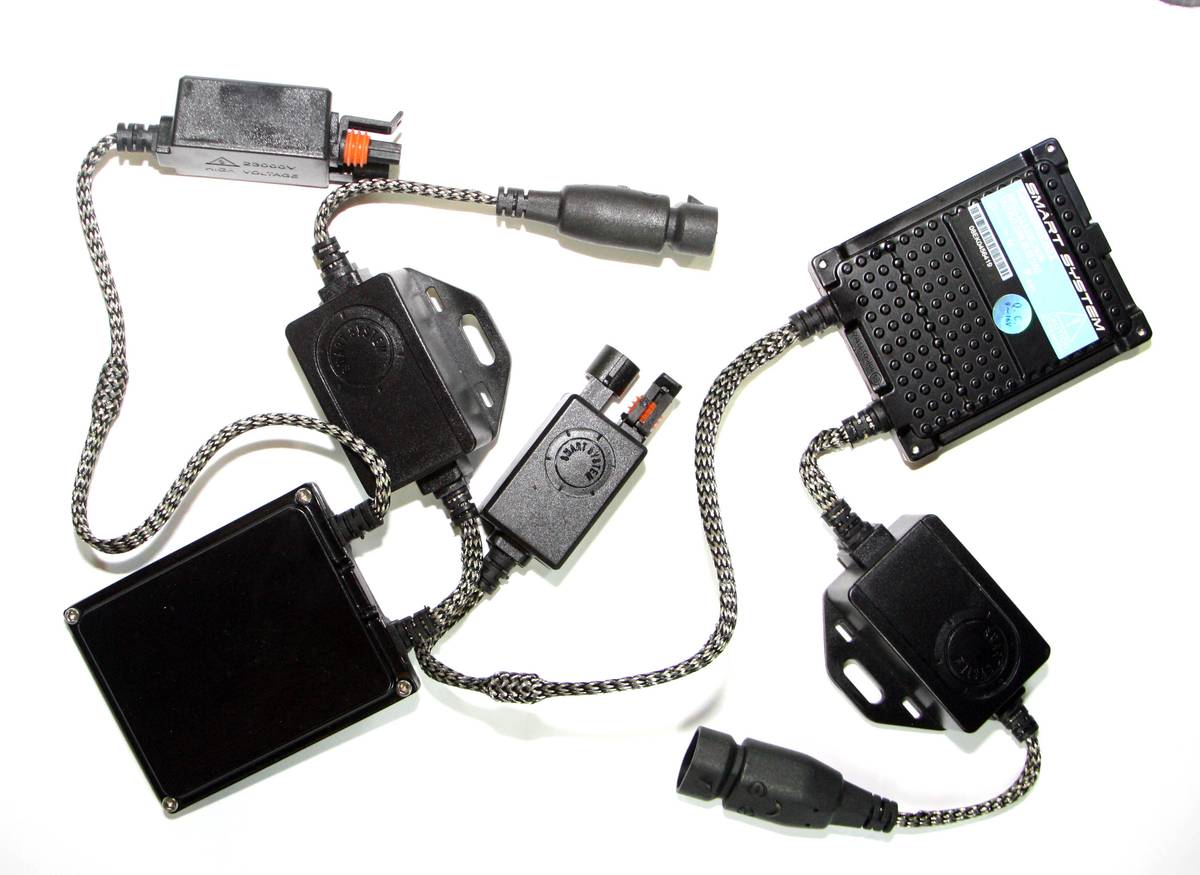

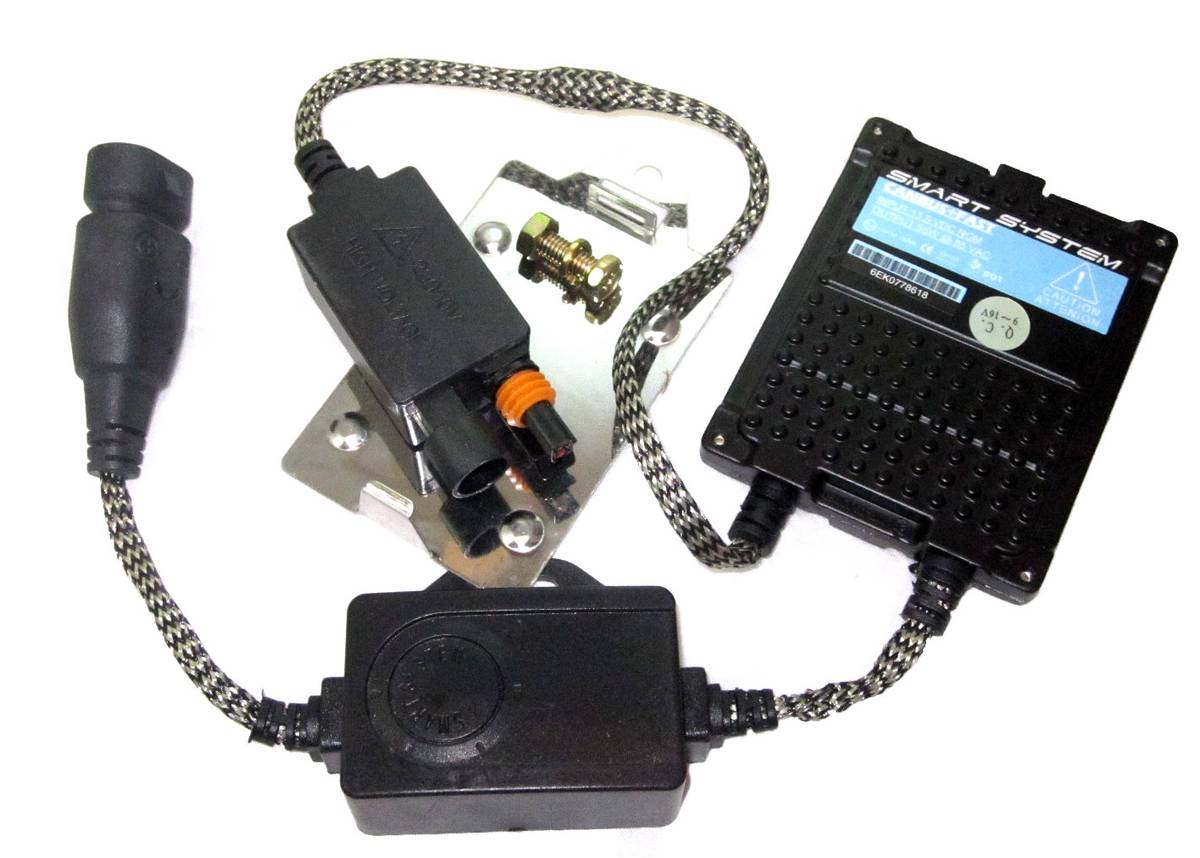

AbsoluteHID Smart PWM CANBUS HID Kits
- CANBUS prevents vehicle ECU from detecting HID Kit
- Smart PWM prevents TIPM turning off kit after 10min
- Digitally regulated ballasts extends bulb life (up to 4 years)
- Smart PWM HID kits have the fastest warm-up time (Achieve 80% brightness within 1 second)
- NO Flickering
- Standard brightness 35w & Max brightness 55w kits available
- Factory halogen bulbs are 55w
- 55w kits do not work well below -30C
- 35w kits work well to -35C
- Longest lasting lighting upgrade (up to 30000 hours)
- Unlike HID, no bulb replacement every 3500 hours
- No ballast to mount (easy install!)
- Thermal bands for maximum heat dissipation
- Brand name diodes
- Instant-on technology
AbsoluteHID Technical Specifications:
|
Component Origin: Germany Component Assembly: Guangzhou, China Bulb Assembly: Taipei, Taiwan Associated Ratings: E13, E11, ISO:9006 Input Voltage: 9~15.9 VDC (Optimal 13.5VDC) Output Voltage: 85 VAC CANBUS: SMART PWM .5ohm Rev 2.1a |

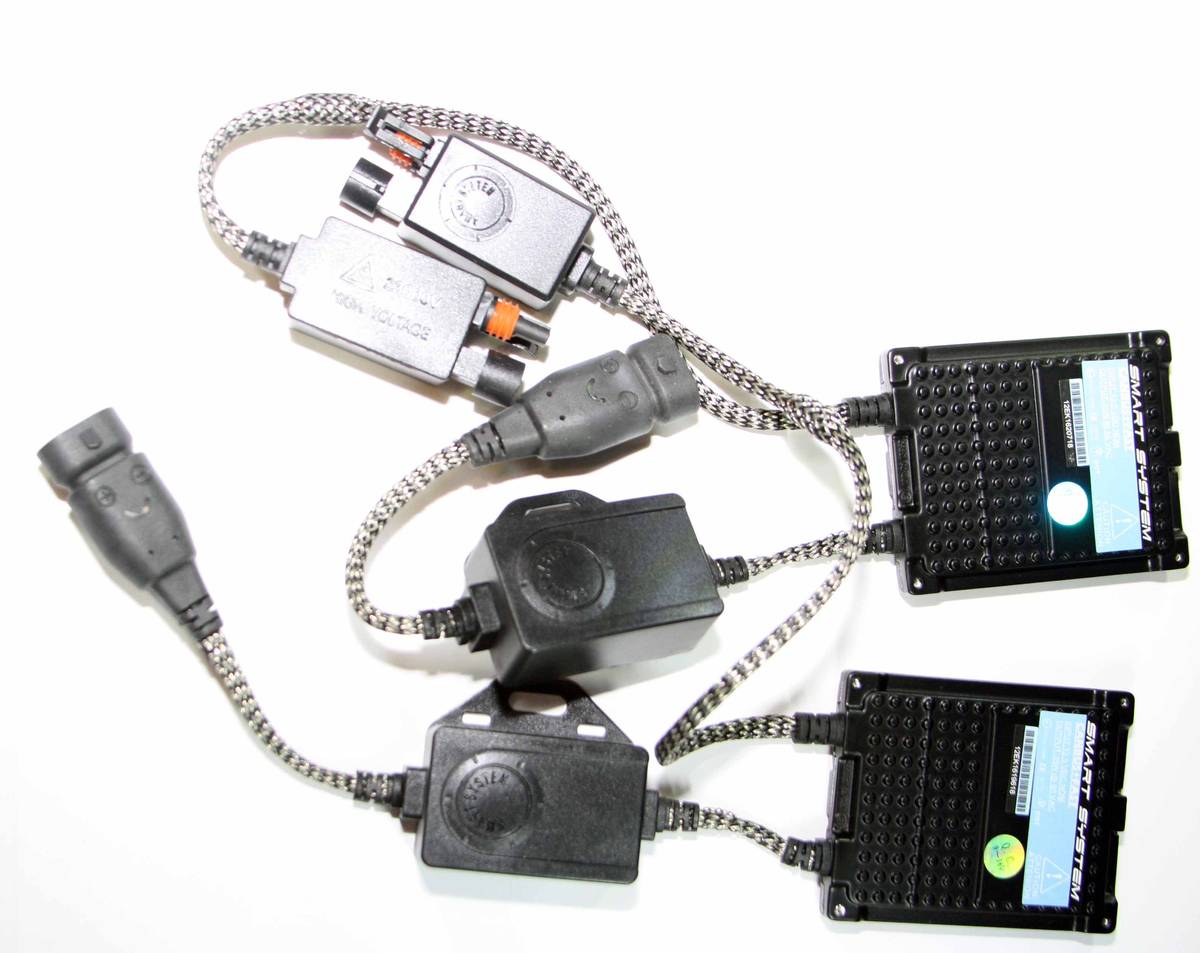

Wattage (RMS): 35W Startup Amperage Draw: 4.7A Constant Amperage Draw: 3.5A Full brightness: 0.7 Seconds @ 10 °C, 1 bar. Bulb Lumen Output: ~3250lum (@ 4300K) Reverse Polarity Protection: Yes, MOSFET (internal) Temperature Rating: -35°C - 105°C |
|
Component Origin: Germany Component Assembly: Guangzhou, China Bulb Assembly: Taipei, Taiwan Associated Ratings: E13, E11, ISO:9006 Input Voltage: 9~15.9 VDC (Optimal 13.5VDC) Output Voltage: 85 VAC Temperature Rating: -30°C - 105°C |

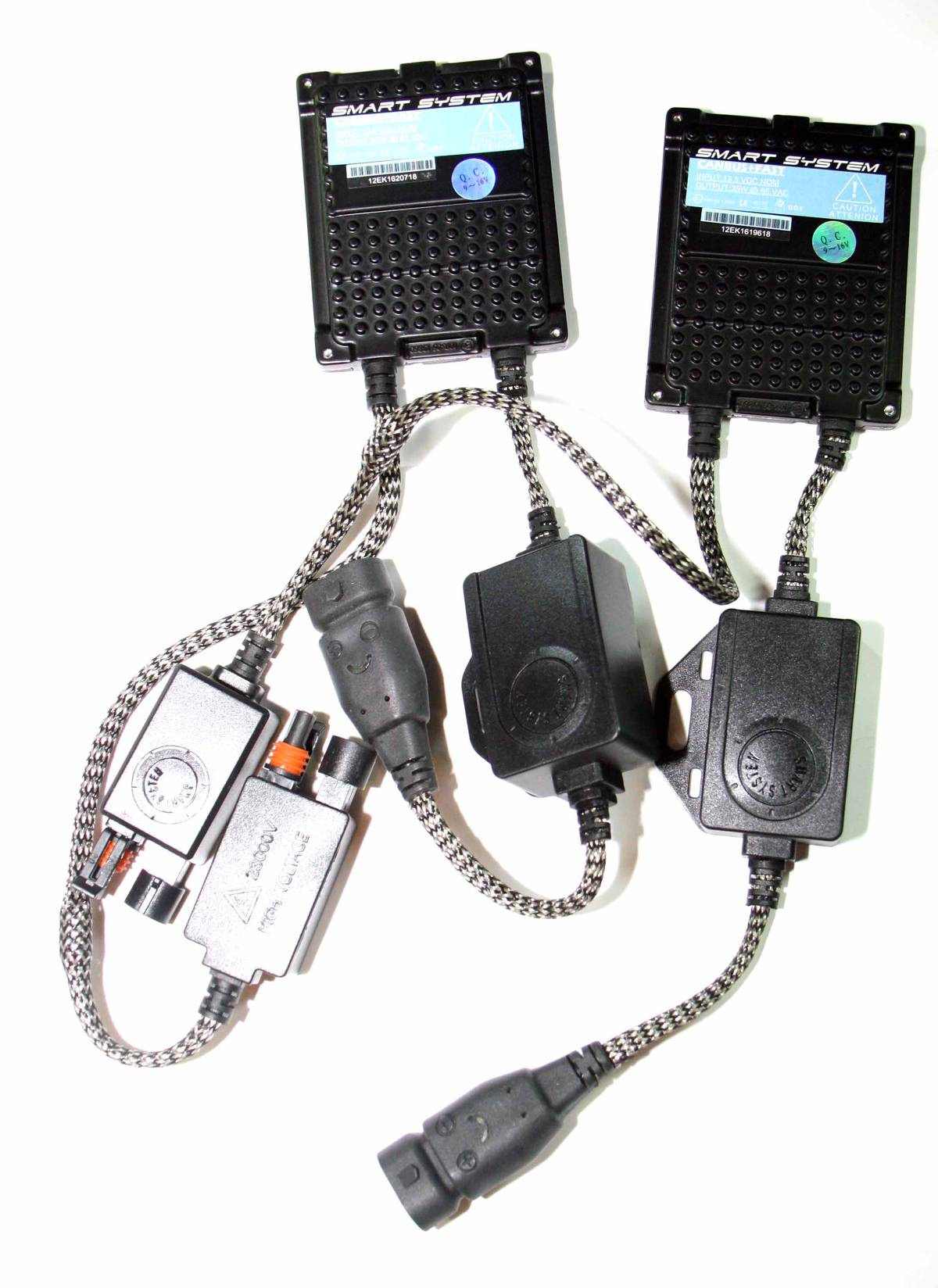

Wattage (RMS): 55W Startup Amperage Draw: 5.6 Constant Amperage Draw: 4.5 Full brightness: 0.7 Seconds @ 10 °C, 1 bar. Bulb Lumen Output: ~5000lum (@ 4300K) Reverse Polarity Protection: Yes, MOSFET (internal) |
|

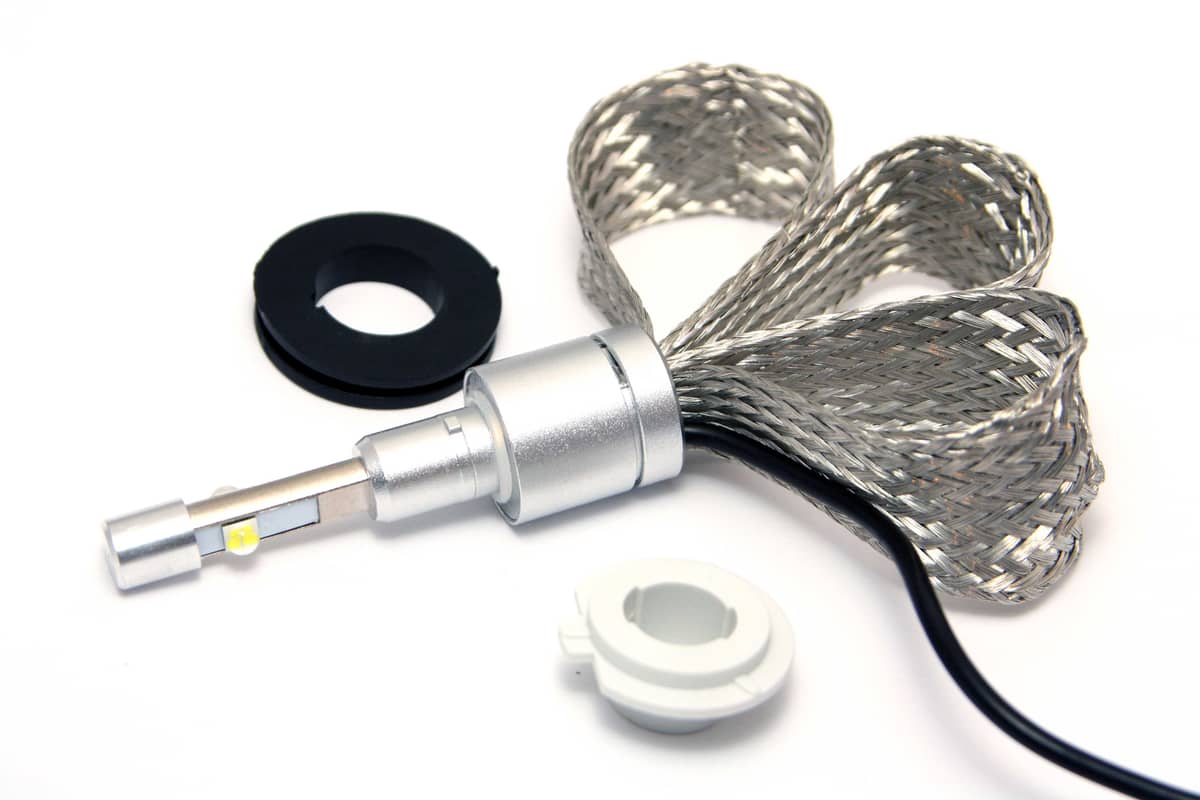

Component Design: CREE (Raleigh, NC, USA) Component Assembly: CREE (Guangzhou, China) Associated Ratings: E4, E11, ISO:9006, ISO:14001 Input Voltage: 11.7~24.9 VDC (Optimal 13.5VDC) Full brightness: Instant Operating Lifetime: 30000 Hours |
Wattage (RMS): 80W (40w LED x2) Startup Amperage Draw: 3.2 @ 12v Constant Amperage Draw: 3.2 @ 12v Bulb Lumen Output: ~4800lm (@ 6000K) Reverse Polarity Protection: Yes Temperature Rating: -50°C - 65°C |
A Conversion kit is required for every pair of lights you wish to upgrade;These kits are fully compatible with PWM, Daytime running lights, automatic headlight systems, and all other Chevrolet onboard electronics.
