Love your Sierra but wish it had better headlights? You're in the right place!

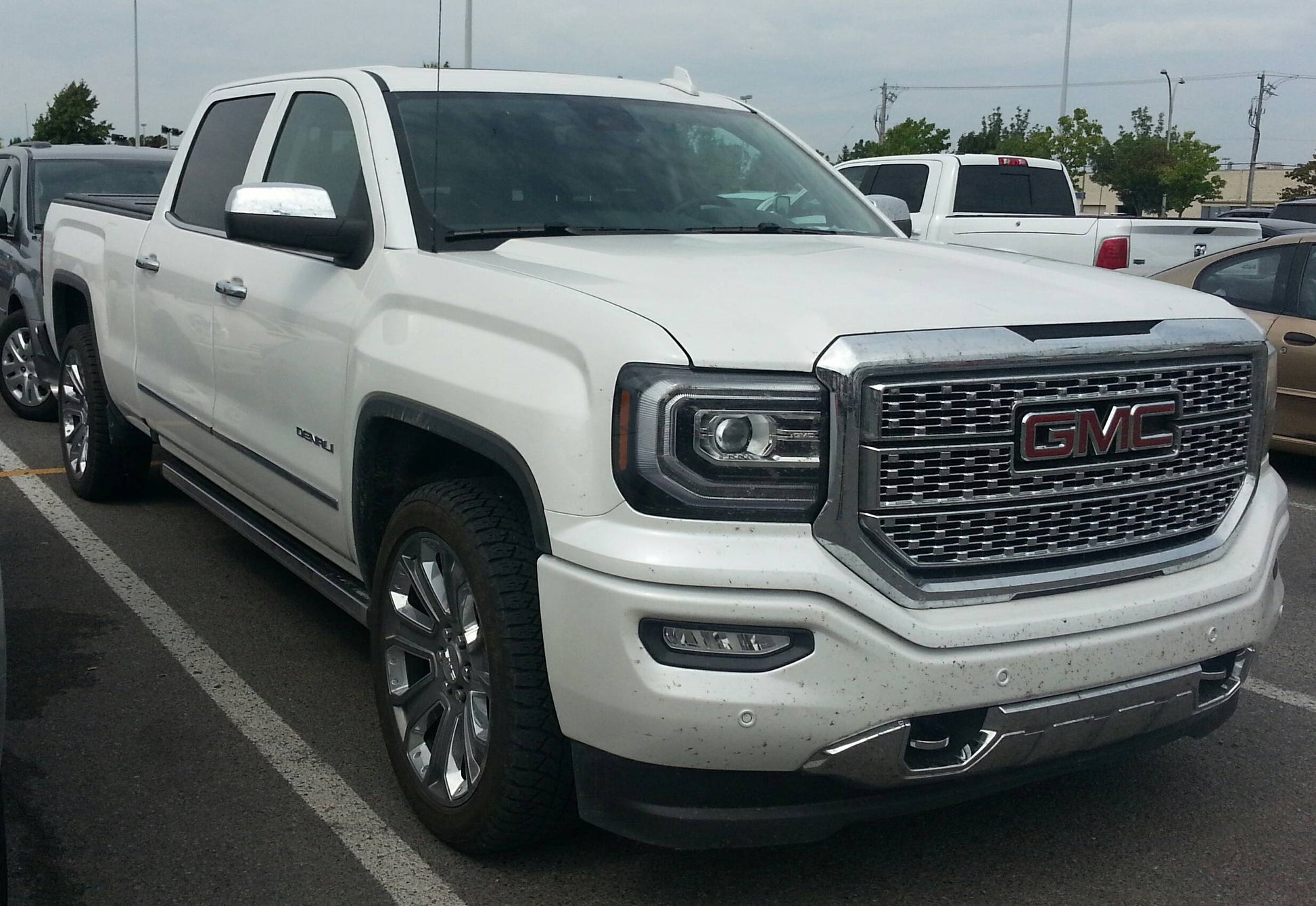

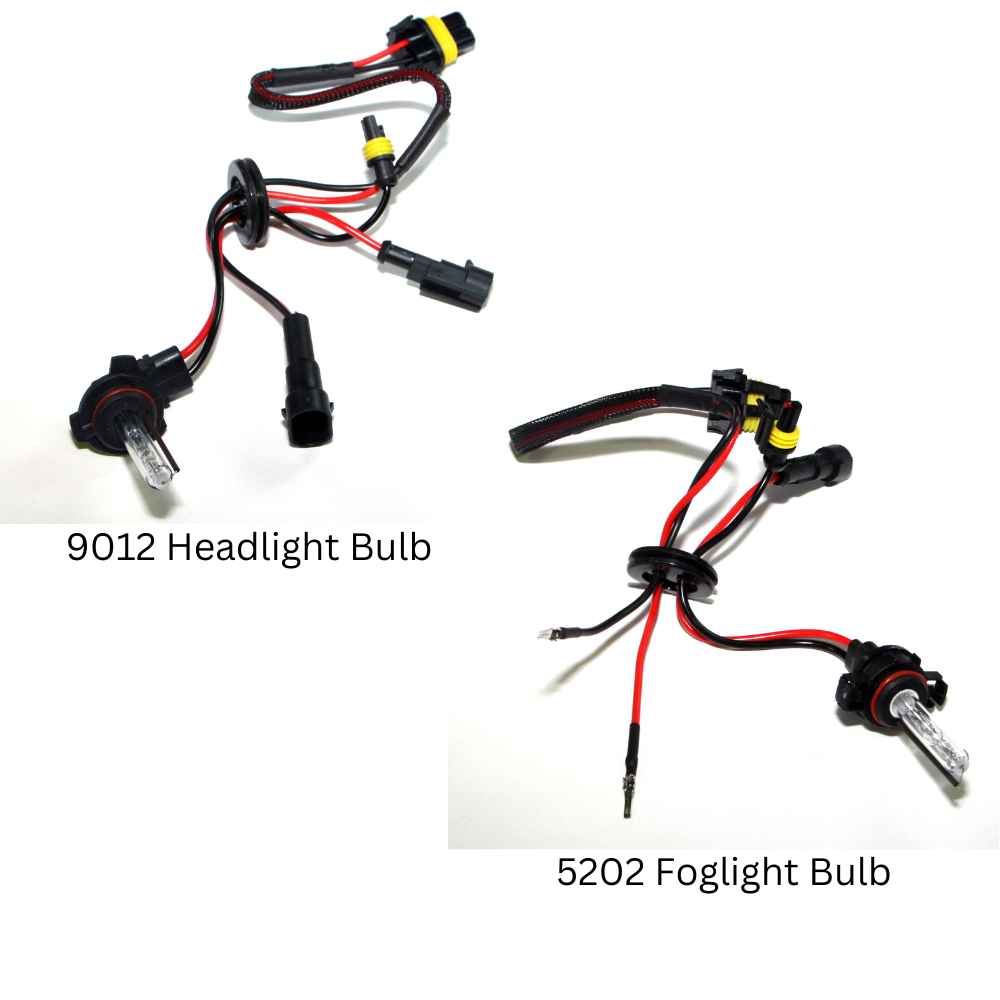

This page lists all of AbsoluteHID Canada's conversions for the 2014 and 2015 GMC Sierra 1500, 2500 and 3500. These trucks use a single 9012 55w halogen bulb in a projector for combined high and lowbeam, and 5202 foglights. Click here for other years and trims of Sierra's, or Contact Us for more assistance.
This generation Sierra is particularly suitable for an upgrade, as the headlights have excellent optics, and are betrayed by their very dim halogen bulbs. The headlights on this model have a very clever shutter system that changes the beam pattern from low to high using a single bulb, meaning a single kit upgrades both the lows and highs, plug and play.
Since this model Sierra has projector lenses, HID's are strongly recommended, as LED beam pattern in projectors is poor. Projectors require omnidirectional light sources in order to get the best possible beam pattern. 55W HID's are brightest but can have cold-start issues below -30C. If you live in northern Canada, stick to a 35w HID kit.
LED's come only in 6000K, and are suitable for the foglights, however most of our customers who do choose to upgrade the foglights in addition to the headlights select a 35w HID for this housing (55w HID's are too hot for the foglight housings. Headlight 9012 bulbs are 55w from factory.)
AbsoluteHID Recommends 4300K (White) Factory colour HID's for all applications. White HID's are brighter, less distracting to other drivers and offer maximum visibility. LED kits come ONLY in 6000K
- Smart PWM CANBUS HID Kits (Plug & Play)
- FREE Nationwide Canadian shipping
- AC HIDs, Wattage is RMS not peak
- Lumens ratings per bulb, not kit
- ALL parts for install included
- Built-in CANBUS, nothing else needed
- Laser aligned UV cut Quarts bulbs
- NO Relays or dangerous Resistors
- 100% Shock-proof and Water-proof
- Installation Manual Included
- Warranty Covers ALL Components
- Canadian DRL Compatible (As indicated)
- Shipped from Canada (NO DUTY!)

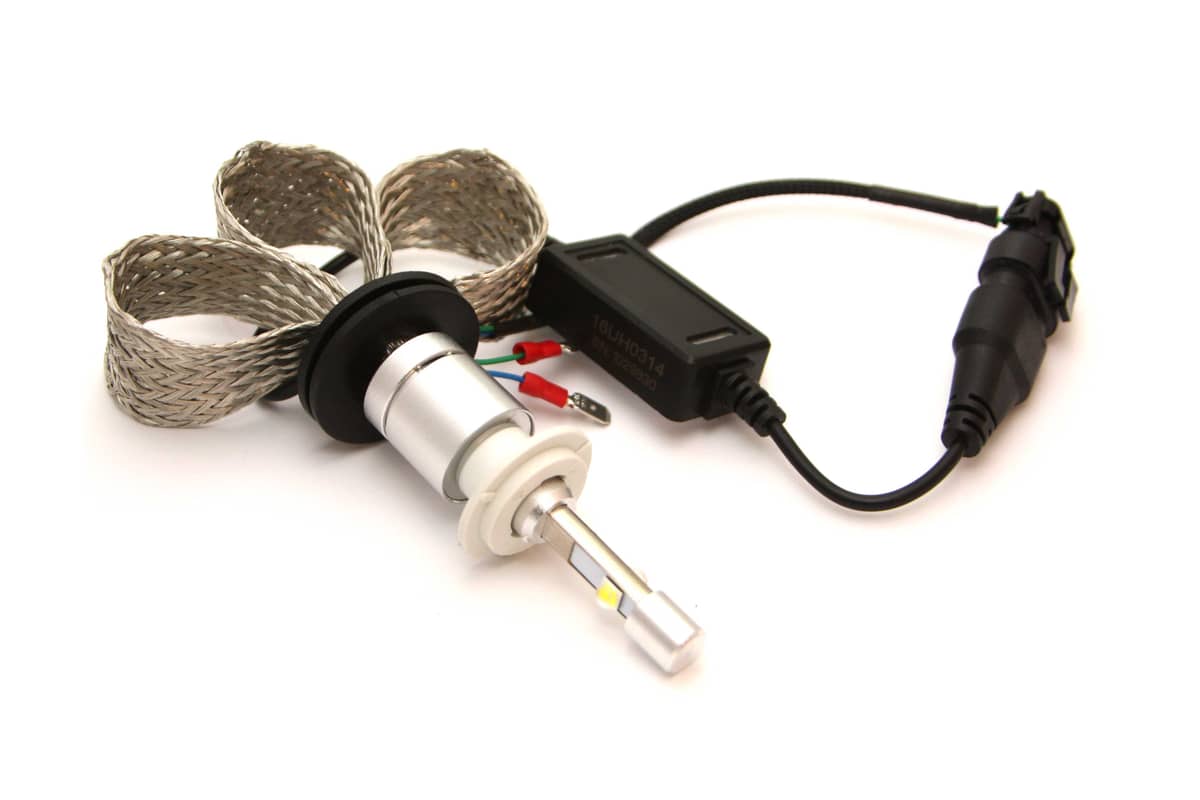

- Smart PWM CANBUS LED Kits (Plug & Play)
- Free Tracking Number & Insurance
- Live Chat Support with Trained Staff
- Questions? Call us! (647) 547-1962

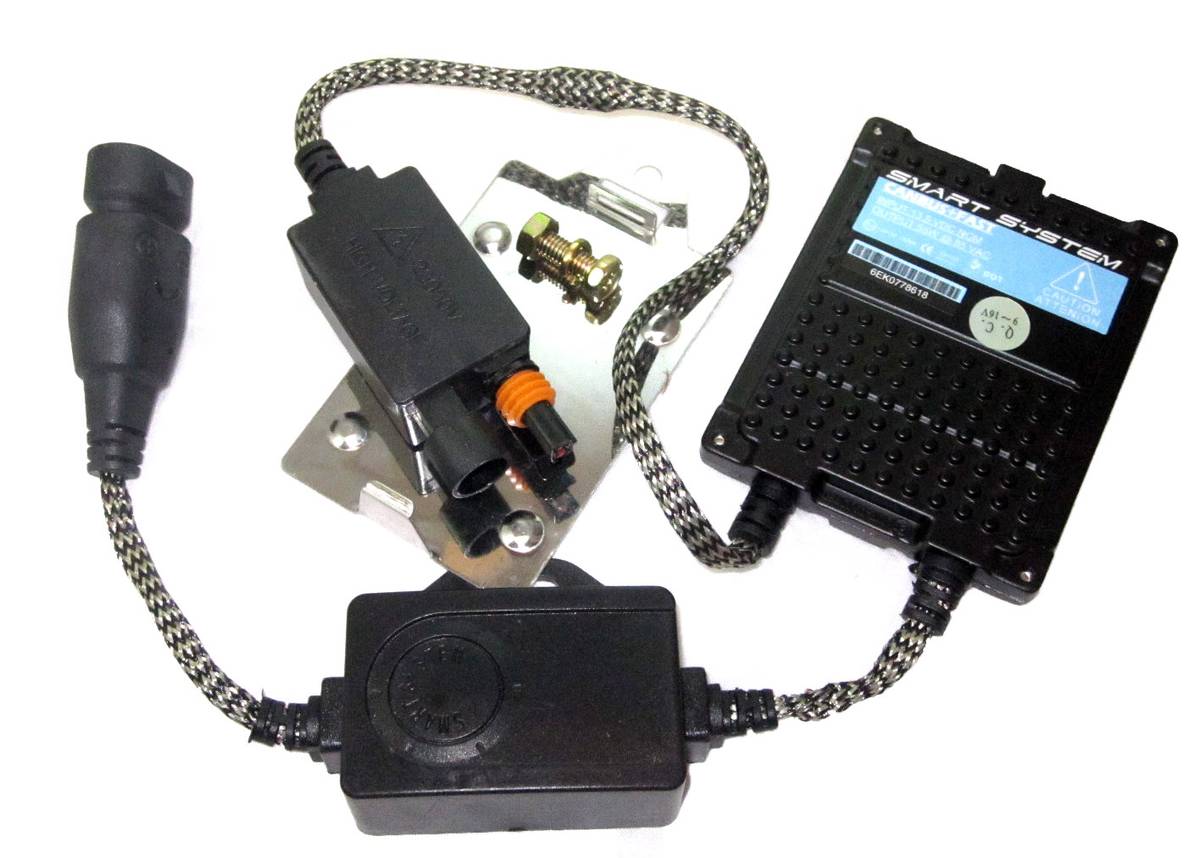

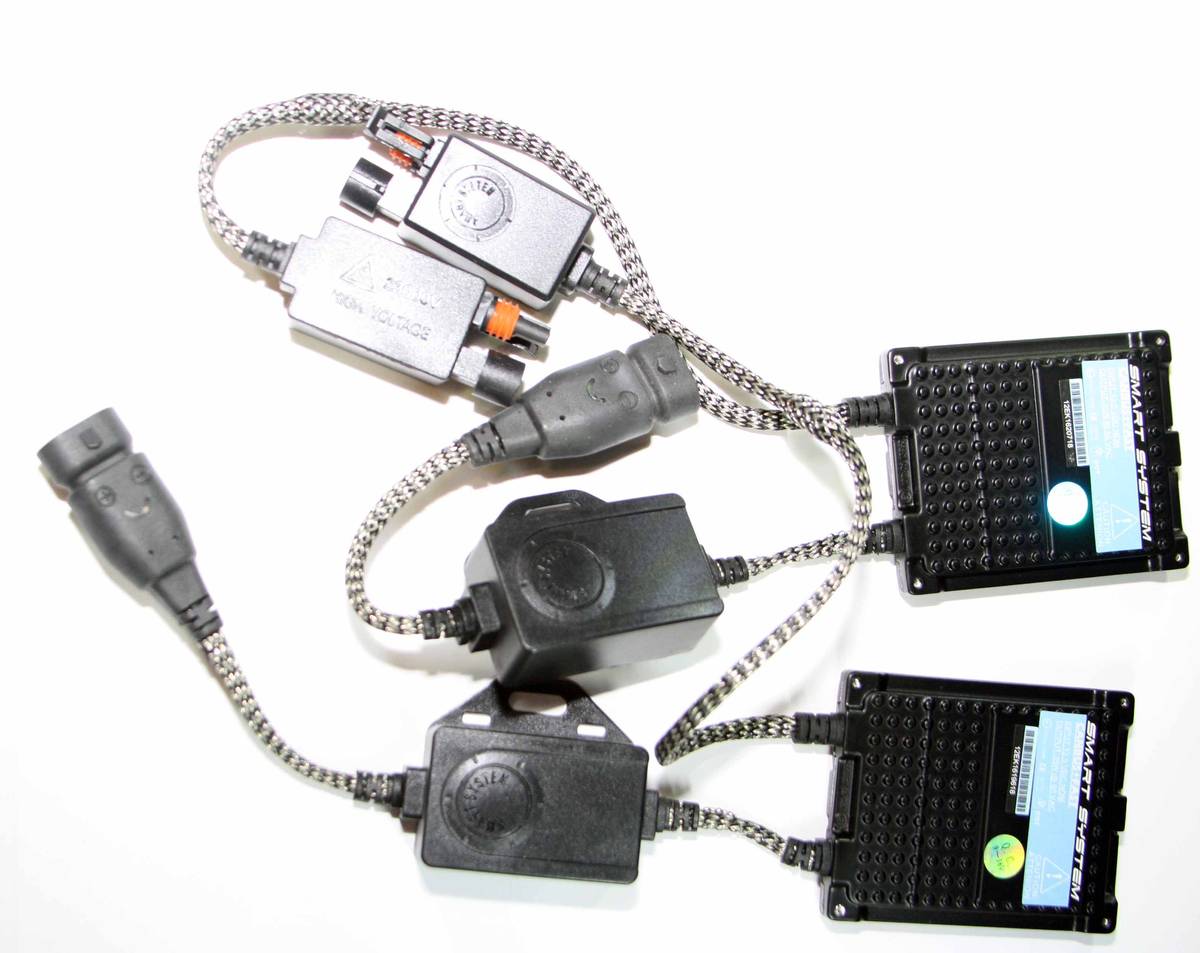

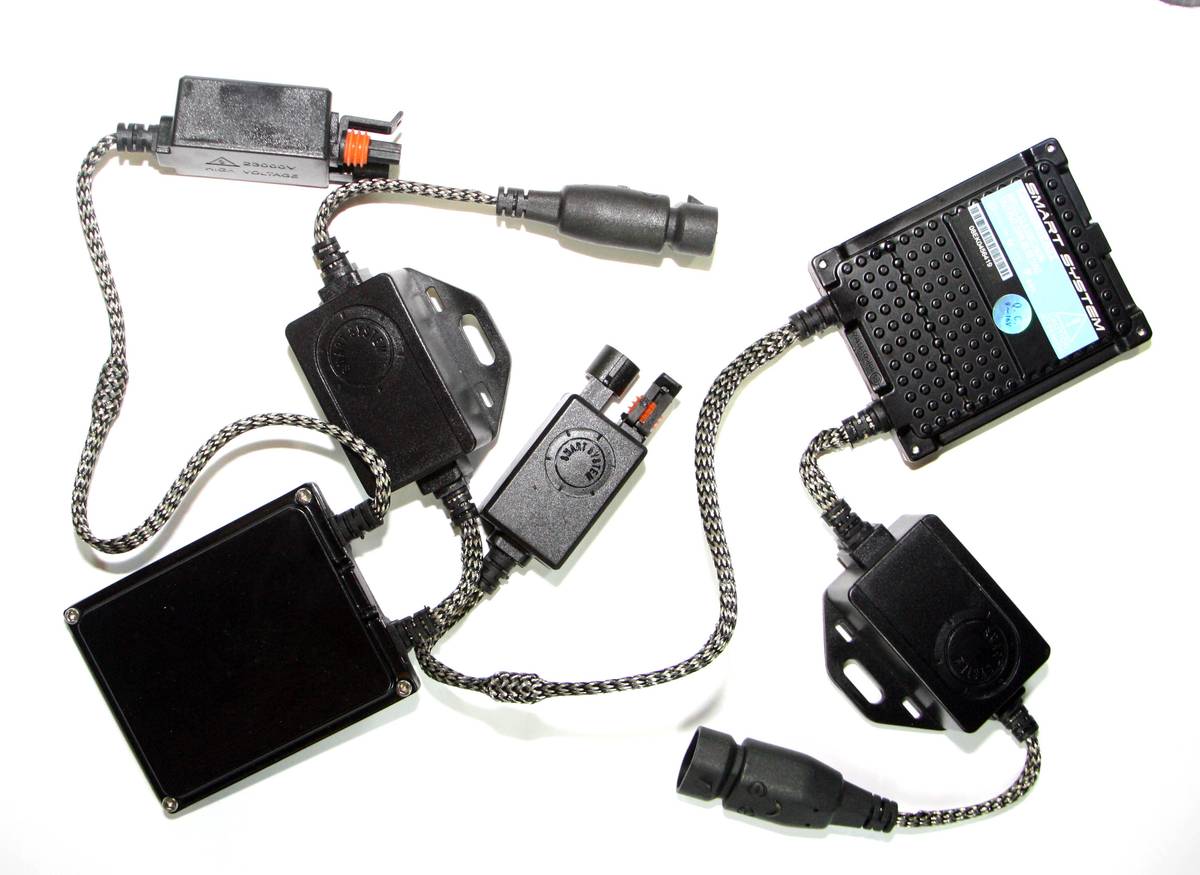

AbsoluteHID Smart PWM CANBUS HID Kits
- CANBUS prevents vehicle ECU from detecting HID Kit
- Digitally regulated ballasts extends bulb life (up to 4 years)
- Smart PWM HID kits have the fastest warm-up time (Achieve 80% brightness within 1 second)
- NO Flickering

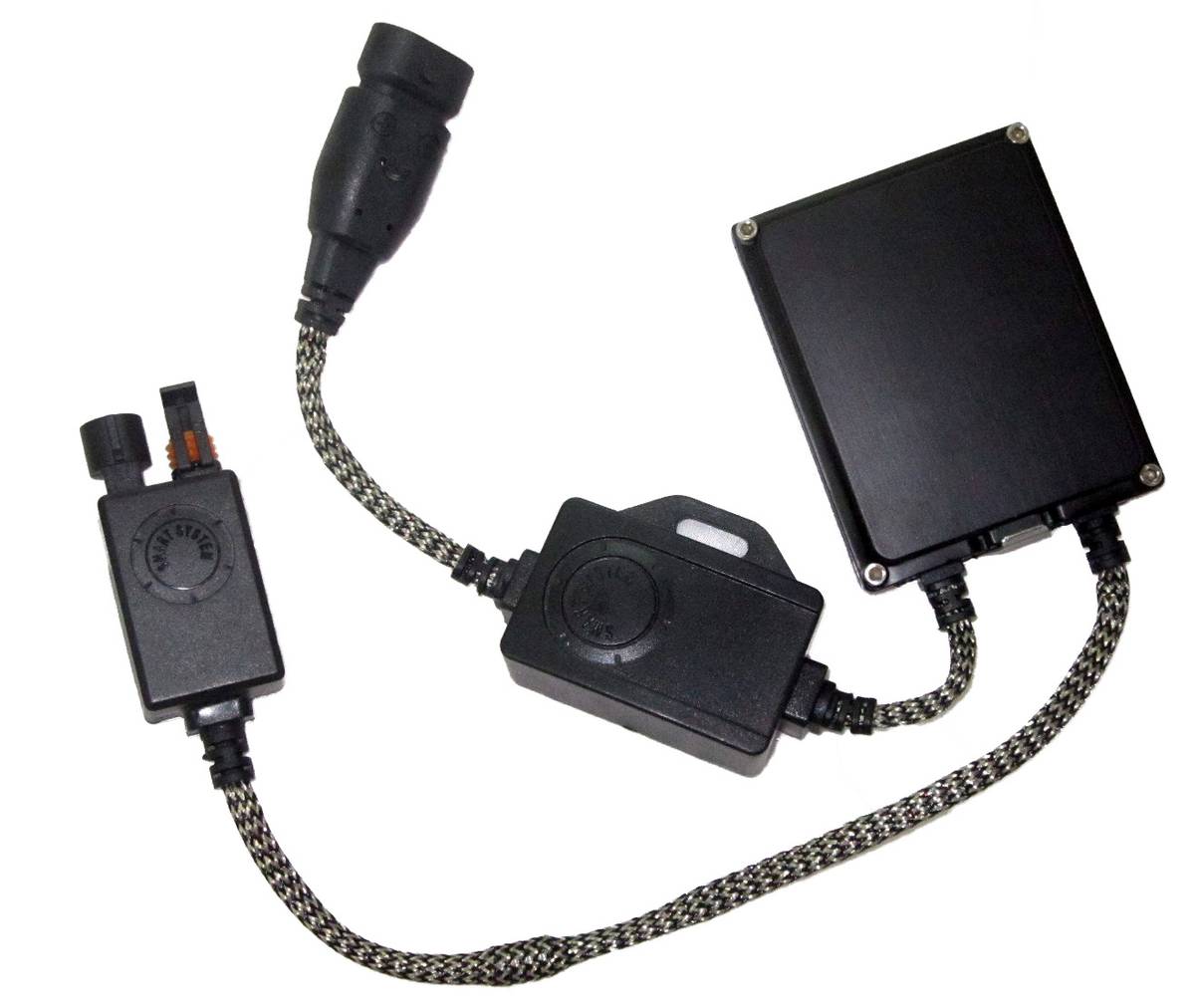

- Standard brightness 35w & Max brightness 55w kits available
- Factory halogen bulbs are 55w
- 55w kits do not work well below -30C
- 35w kits work well to -35C

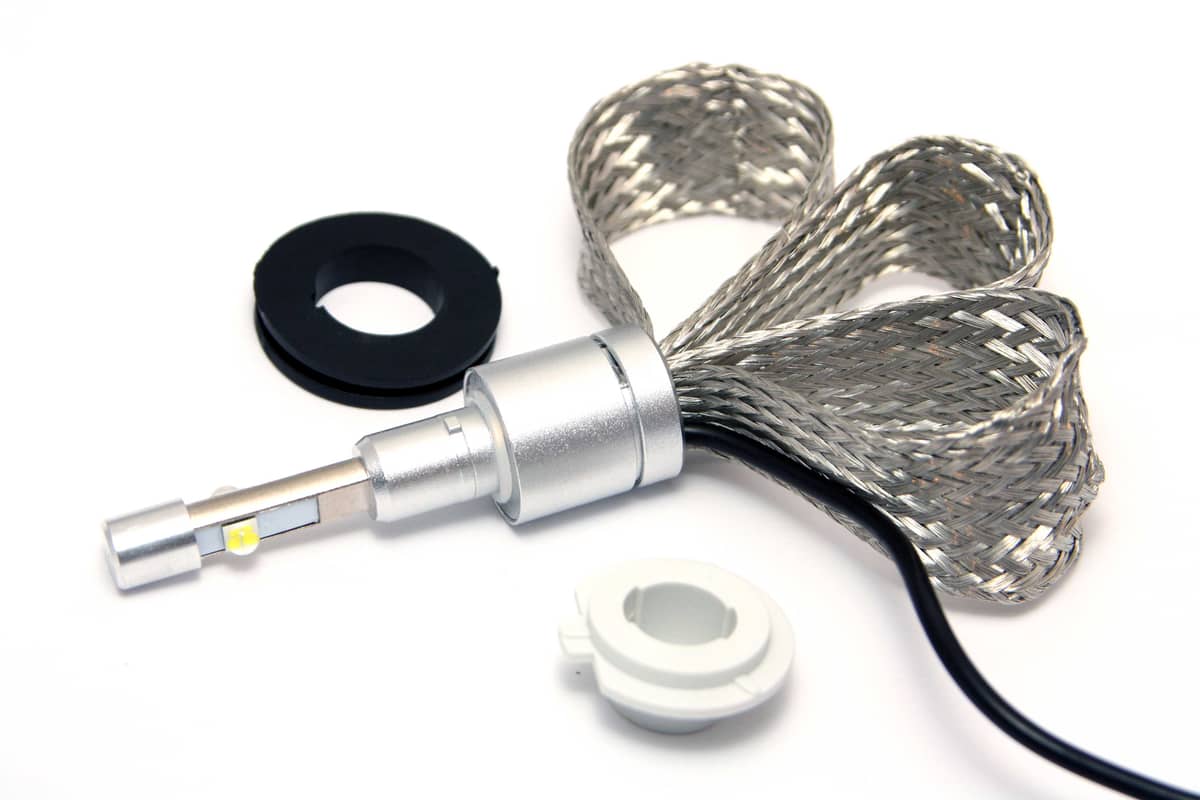

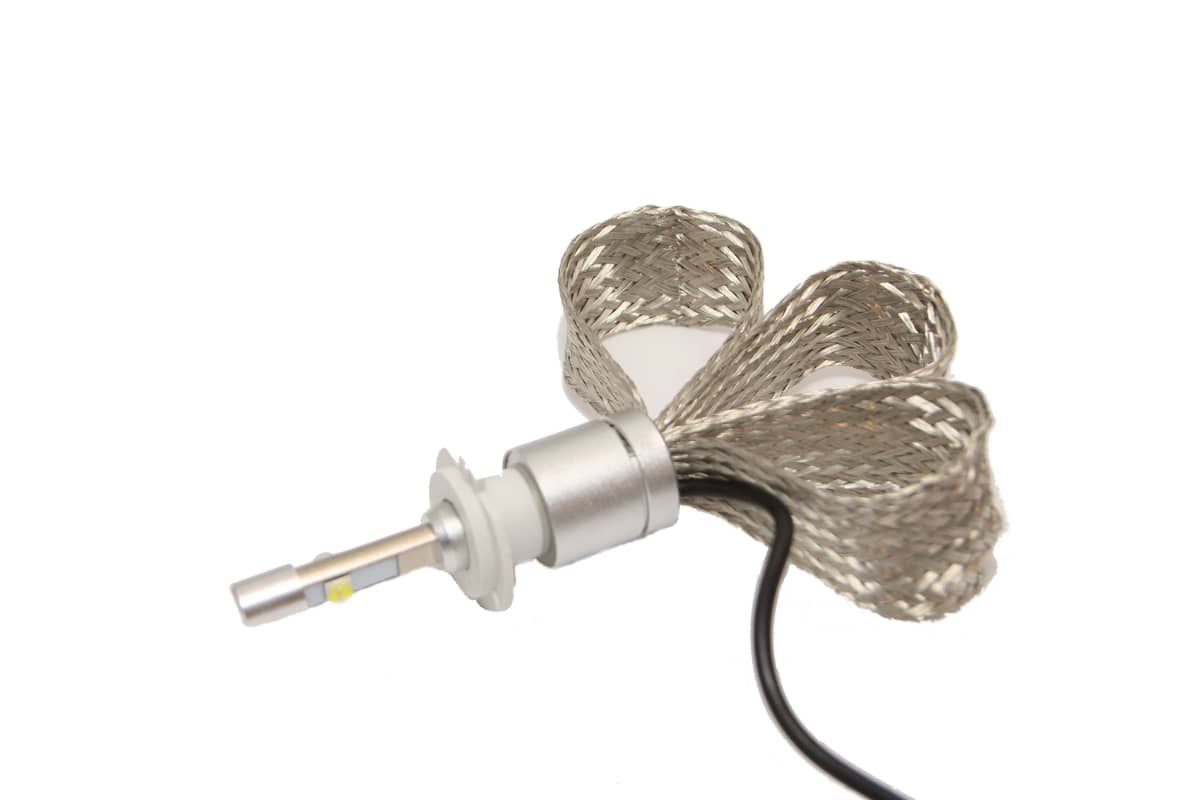

- Longest lasting lighting upgrade (up to 30000 hours)
- Unlike HID, no bulb replacement every 3500 hours
- No ballast to mount (easy install!)
- Thermal bands for maximum heat dissipation
- Brand name diodes
- Instant-on technology
AbsoluteHID Technical Specifications:
|
Component Origin: Germany Component Assembly: Guangzhou, China Bulb Assembly: Taipei, Taiwan Associated Ratings: E13, E11, ISO:9006 Input Voltage: 9~15.9 VDC (Optimal 13.5VDC) Output Voltage: 85 VAC CANBUS: SMART PWM .5ohm Rev 2.1a |
Wattage (RMS): 35W Startup Amperage Draw: 4.7A Constant Amperage Draw: 3.5A Full brightness: 0.7 Seconds @ 10 °C, 1 bar. Bulb Lumen Output: ~3250lum (@ 4300K) Reverse Polarity Protection: Yes, MOSFET (internal) Temperature Rating: -35°C - 105°C |
|
Component Origin: Germany Component Assembly: Guangzhou, China Bulb Assembly: Taipei, Taiwan Associated Ratings: E13, E11, ISO:9006 Input Voltage: 9~15.9 VDC (Optimal 13.5VDC) Output Voltage: 85 VAC Temperature Rating: -30°C - 105°C |
Wattage (RMS): 55W Startup Amperage Draw: 5.6 Constant Amperage Draw: 4.5 Full brightness: 0.7 Seconds @ 10 °C, 1 bar. Bulb Lumen Output: ~5000lum (@ 4300K) Reverse Polarity Protection: Yes, MOSFET (internal) |
|
Component Design: CREE (Raleigh, NC, USA) Component Assembly: CREE (Guangzhou, China) Associated Ratings: E4, E11, ISO:9006, ISO:14001 Input Voltage: 11.7~24.9 VDC (Optimal 13.5VDC) Full brightness: Instant Operating Lifetime: 30000 Hours |
Wattage (RMS): 80W (40w LED x2) Startup Amperage Draw: 3.2 @ 12v Constant Amperage Draw: 3.2 @ 12v Bulb Lumen Output: ~4800lm (@ 6000K) Reverse Polarity Protection: Yes Temperature Rating: -50°C - 65°C |
A Conversion kit is required for every pair of lights you wish to upgrade;These kits are fully compatible with PWM, Daytime running lights, automatic headlight systems, and all other onboard electronics.
