Ford Edge

Ford Edge 2010 - 2014 HID Kit & LED Conversion

Ford Edge 2010 - 2014 HID Kit & LED Conversion

Regular price $113.00 USD
Regular price Sale price $113.00 USD
Sale Sold out
Shipping calculated at checkout. Free options available.

This product page lists HID & LED's for the 2010 to 2014 Ford Edge. For other years please click here or Contact Us for more assistance.

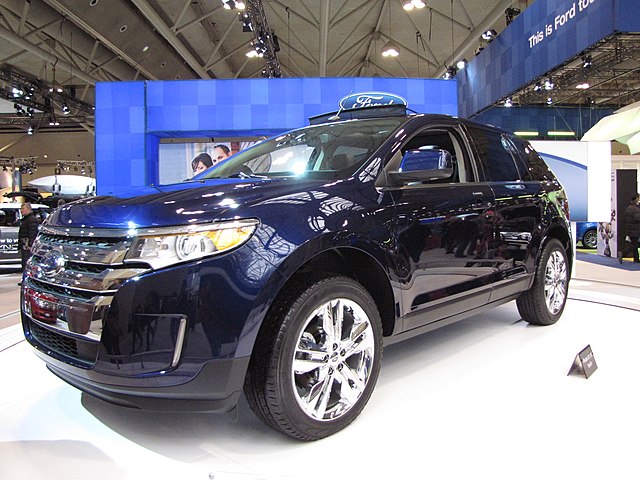

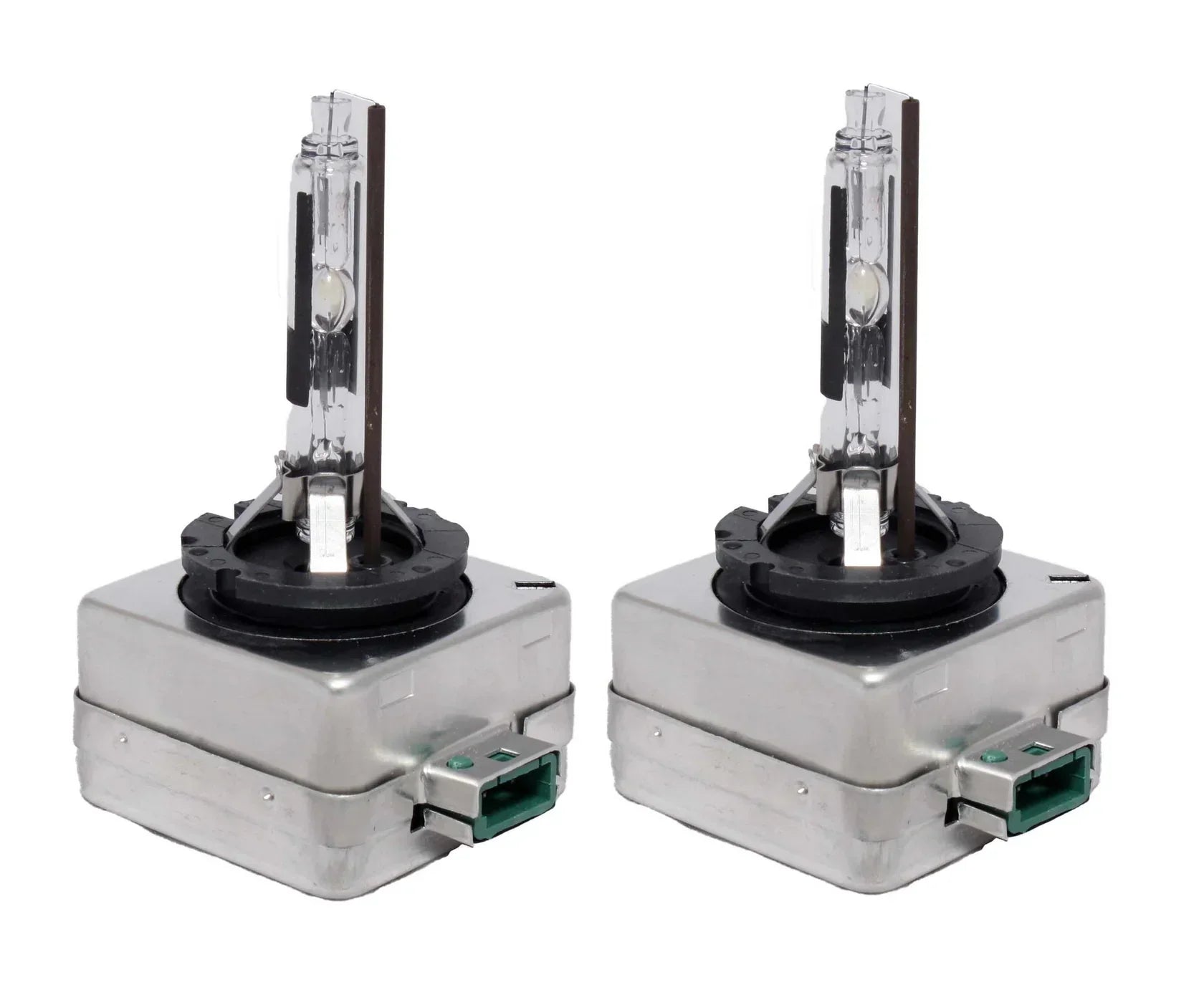

This generation Edge came in two models: Factory-installed HID's, and regular halogen headlights. Factory HID models use D3S bulbs, available in all colours. Factory HID models use a single bulb for high and low.

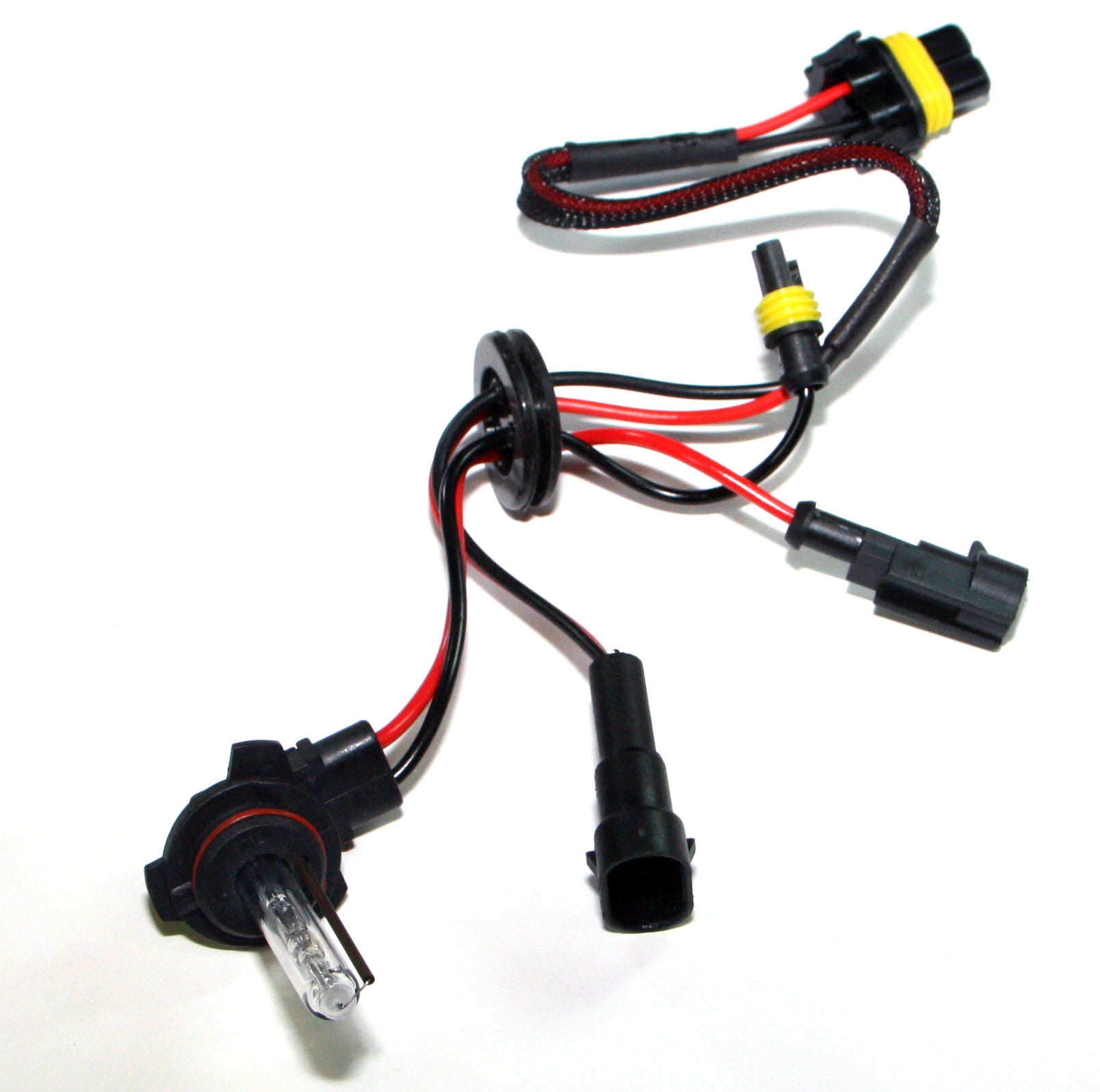

Factory halogen Ford Edges use 9012 bulbs in a projector lens. These projector headlights not only offer the best possible optics, but do high and low using a single bulb. For our purposes, this means a single kit converts both lowbeams and highbeams, plug and play. Don't be fooled by your dim halogen bulbs, these are the best headlights ever fitted to an Edge, they just need a powerful light source. As with all projector lenses, we recommend an HID kit, as omnidirectional light sources energize projectors to get the best possible beam pattern. LED's will also work, but aren't quite as bright as a 55w kit.  55W HID's can have cold-start issues below -30C. If you live in northern Canada, consider a 35w HID kit or LED's. For most Canadians, a  55w HID is the best option.

AbsoluteHID Kelvin Chart
AbsoluteHID Recommends 4300K (White) Factory colour HID's for all applications. White HID's are brighter, less distracting to other drivers and offer maximum visibility. LED kits come ONLY in 6000K
  • Smart PWM CANBUS HID Kits (Plug & Play)
  • FREE Nationwide Canadian shipping
  • AC HIDs, Wattage is RMS not peak
  • Lumens ratings per bulb, not kit
  • ALL parts for install included
  • Built-in CANBUS, nothing else needed
  • Laser aligned UV cut Quarts bulbs
  • NO Relays or dangerous Resistors
  • 100% Shock-proof and Water-proof
  • Installation Manual Included
  • Warranty Covers ALL Components
  • Canadian DRL Compatible (As indicated)
  • Shipped from Canada (NO DUTY!)
  • Smart PWM CANBUS LED Kits (Plug & Play)
  • Free Tracking Number & Insurance
  • Live Chat Support with Trained Staff
  • Questions? Call us! (647) 547-1962

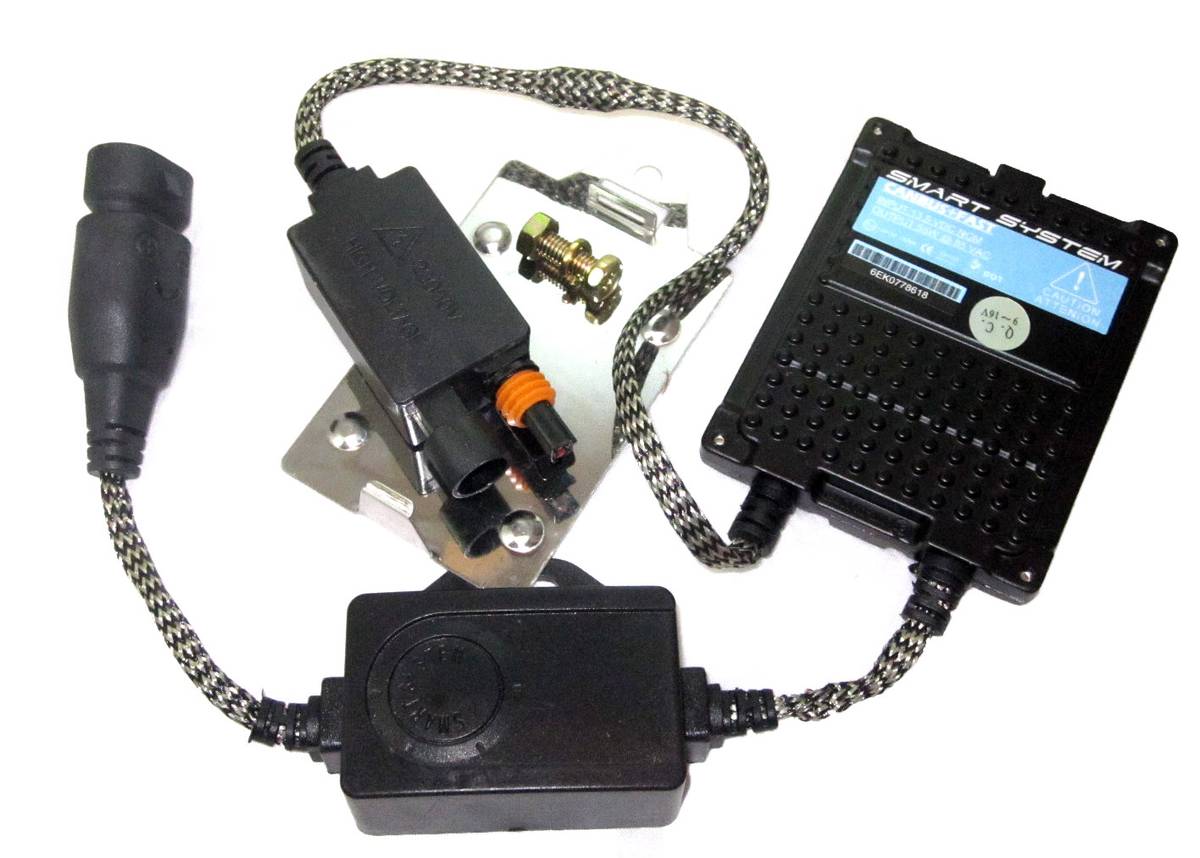

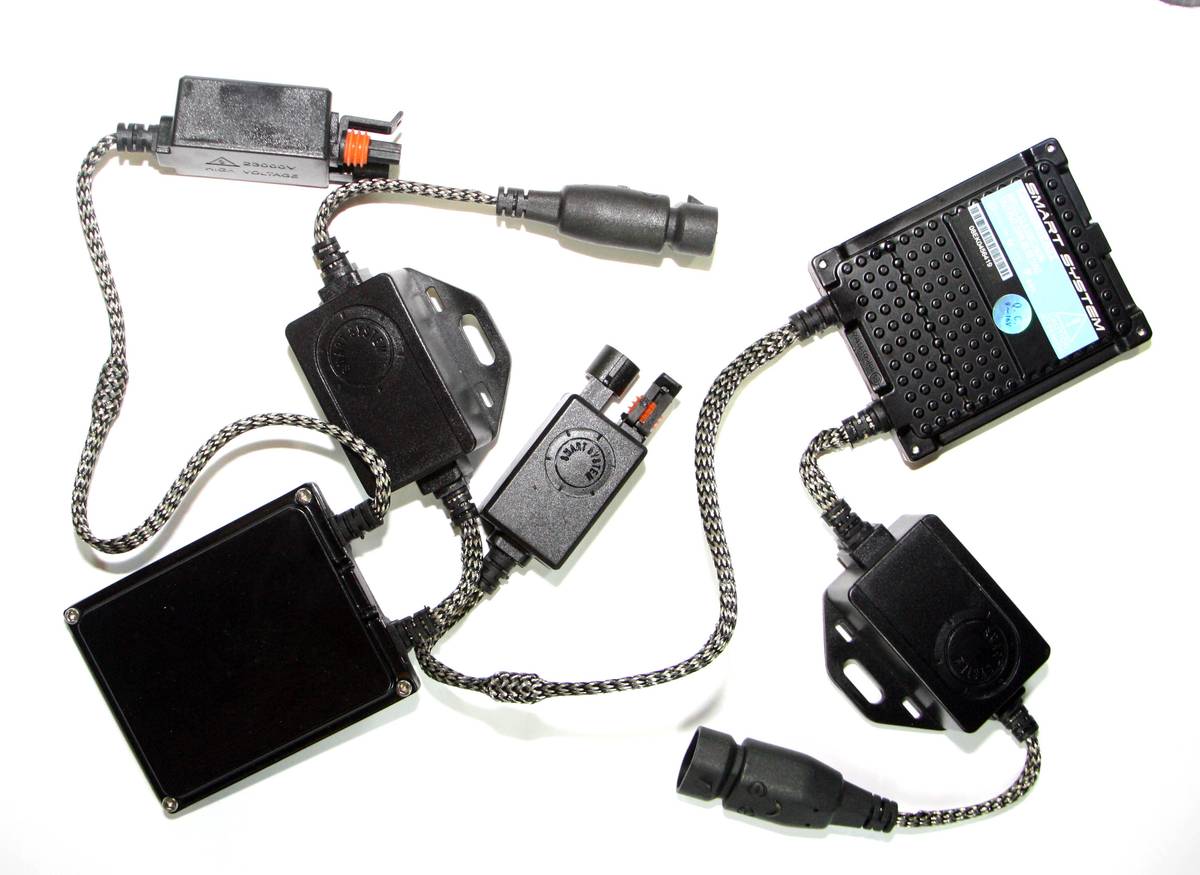

AbsoluteHID Smart PWM CANBUS HID Kits

  • CANBUS prevents vehicle ECU from detecting HID Kit
  • Smart PWM prevents TIPM turning off kit after 10min
  • Digitally regulated ballasts extends bulb life (up to 4 years)
  • Smart PWM HID kits have the fastest warm-up time (Achieve 80% brightness within 1 second)
  • NO Flickering
  • Standard brightness 35w & Max brightness 55w kits available
  • Factory halogen bulbs are 55w
  • 55w kits do not work well below -30C
  • 35w kits work well to -35C

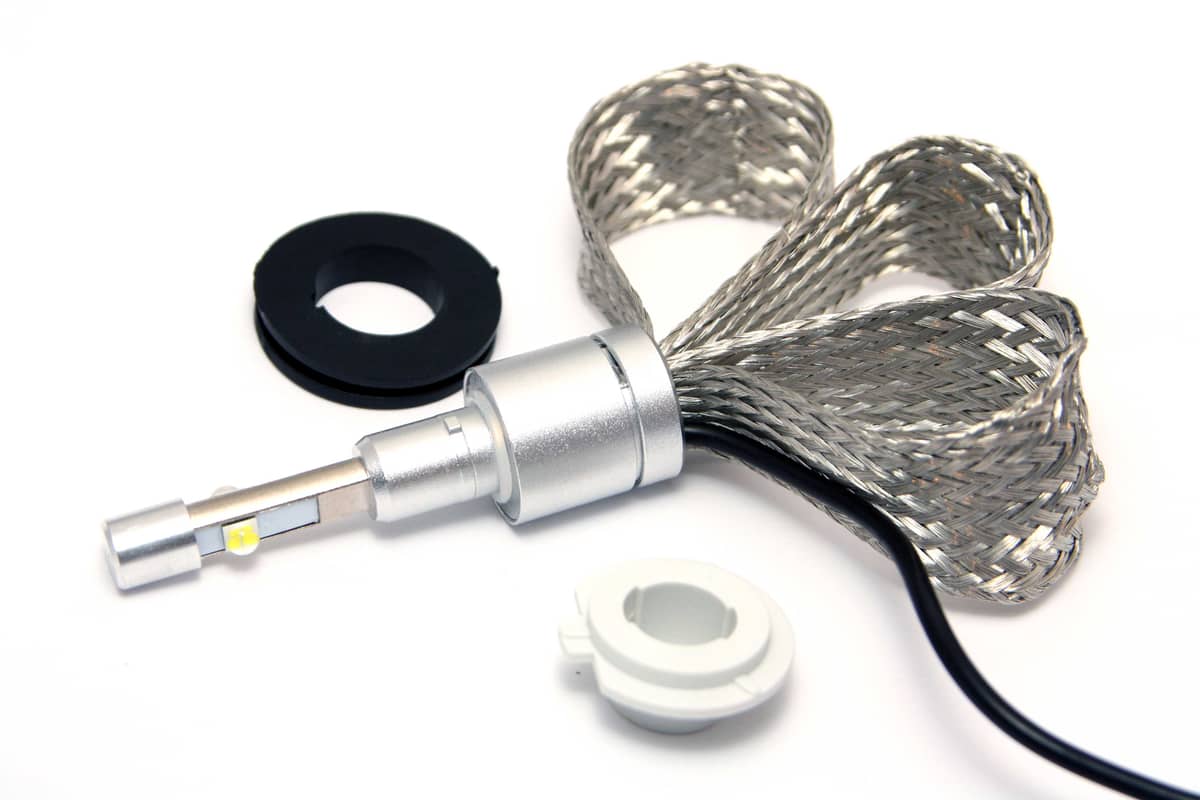

AbsoluteHID CANBUS LED Kit
  • Longest lasting lighting upgrade (up to 30000 hours)
  • Unlike HID, no bulb replacement every 3500 hours
  • No ballast to mount (easy install!)
  • Thermal bands for maximum heat dissipation
  • Brand name diodes
  • Instant-on technology

 AbsoluteHID Technical Specifications:

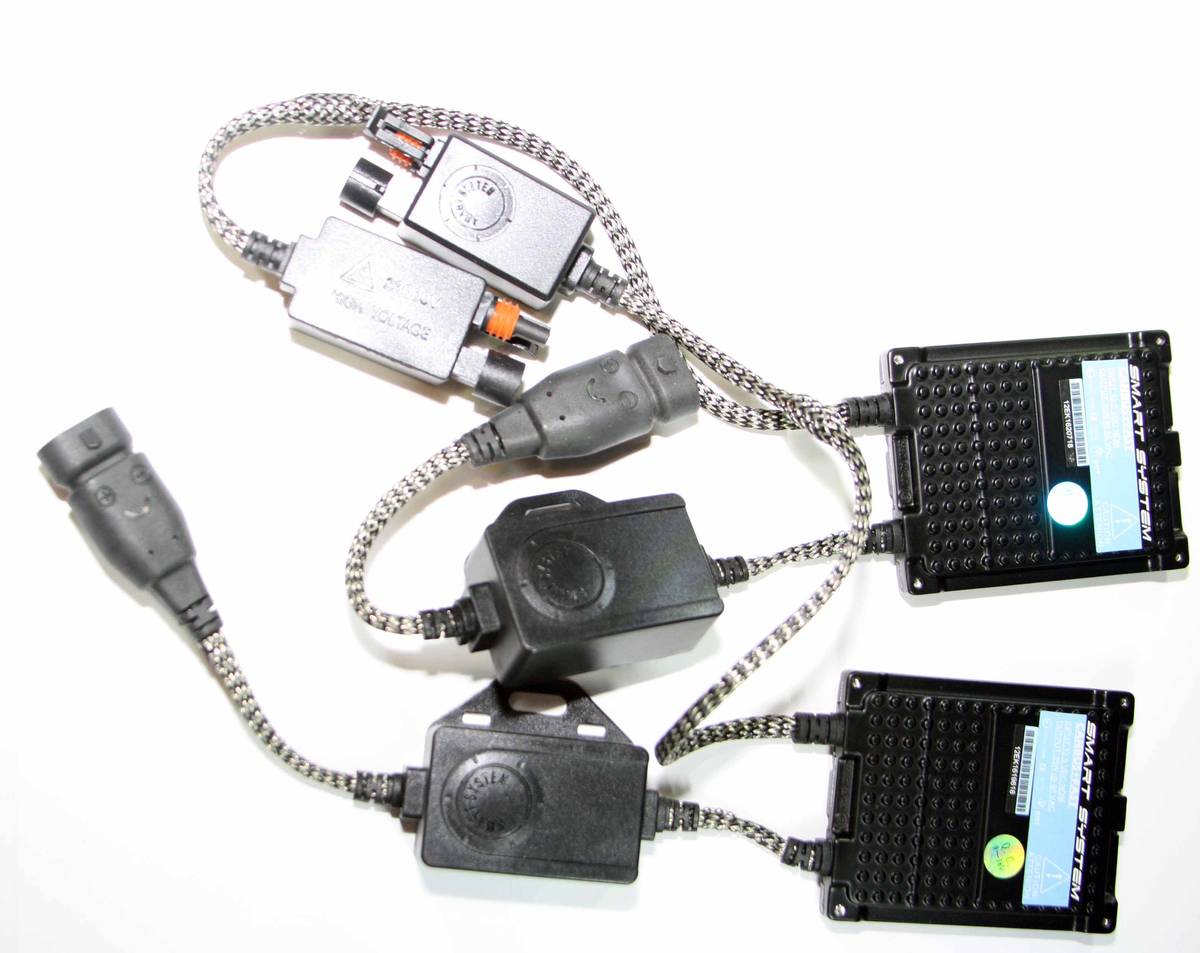

35w Smart PWM CANBUS HID KIT:

Component Origin: Germany

Component Assembly: Guangzhou, China

Bulb Assembly: Taipei, Taiwan

Associated Ratings: E13, E11, ISO:9006

Input Voltage: 9~15.9 VDC  (Optimal 13.5VDC)

Output Voltage: 85 VAC

CANBUS: SMART PWM .5ohm Rev 2.1a

Wattage (RMS): 35W

Startup Amperage Draw: 4.7A

Constant Amperage Draw: 3.5A

Full brightness: 0.7 Seconds @ 10 °C, 1 bar.

Bulb Lumen Output: ~3250lum (@ 4300K)

Reverse Polarity Protection: Yes, MOSFET (internal)

Temperature Rating: -35°C - 105°C

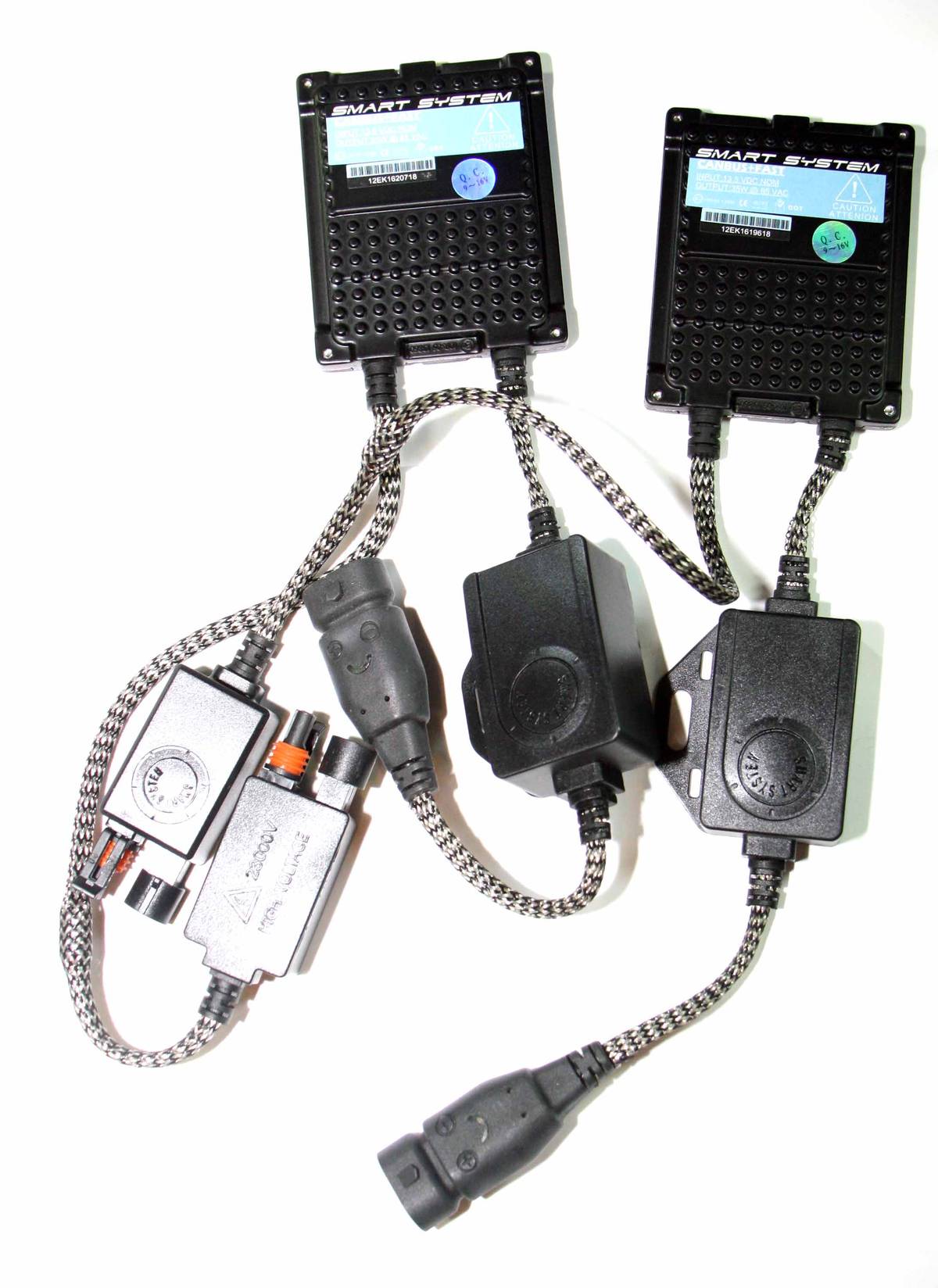

55w Smart PWM CANBUS HID KIT:

Component Origin: Germany

Component Assembly: Guangzhou, China

Bulb Assembly: Taipei, Taiwan

Associated Ratings: E13, E11, ISO:9006

Input Voltage: 9~15.9 VDC  (Optimal 13.5VDC)

Output Voltage: 85 VAC

Temperature Rating: -30°C - 105°C

Wattage (RMS): 55W

Startup Amperage Draw: 5.6

Constant Amperage Draw: 4.5

Full brightness: 0.7 Seconds @ 10 °C, 1 bar.

Bulb Lumen Output: ~5000lum (@ 4300K)

Reverse Polarity Protection: Yes, MOSFET (internal)

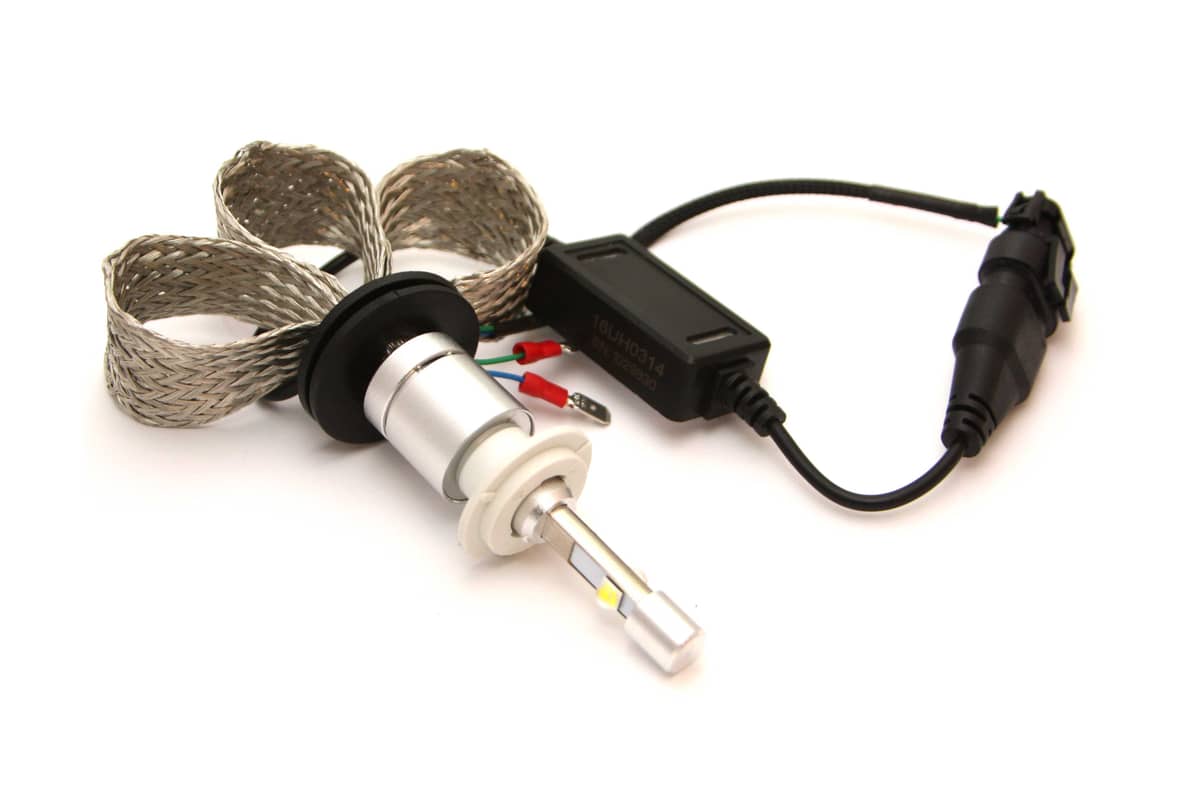

4800 Lumen CANBUS LED KIT:

Component Design: CREE (Raleigh, NC, USA)

Component Assembly:  CREE (Guangzhou, China)

Associated Ratings: E4, E11, ISO:9006, ISO:14001

Input Voltage: 11.7~24.9 VDC  (Optimal 13.5VDC)

 Full brightness: Instant

Operating Lifetime: 30000 Hours

Wattage (RMS): 80W (40w LED x2)

Startup Amperage Draw: 3.2 @ 12v

Constant Amperage Draw: 3.2 @ 12v

Bulb Lumen Output: ~4800lm (@ 6000K)

Reverse Polarity Protection: Yes

Temperature Rating: -50°C - 65°C


A  Conversion kit is required for every pair of lights you wish to upgrade;These kits are fully compatible with PWM, Daytime running lights, automatic headlight systems, and all other Ford onboard electronics.
