Dodge Ram 2006 - 2012 Two Headlight HID Kit & LED Conversions
Dodge Ram 2006 - 2012 Two Headlight HID Kit & LED Conversions

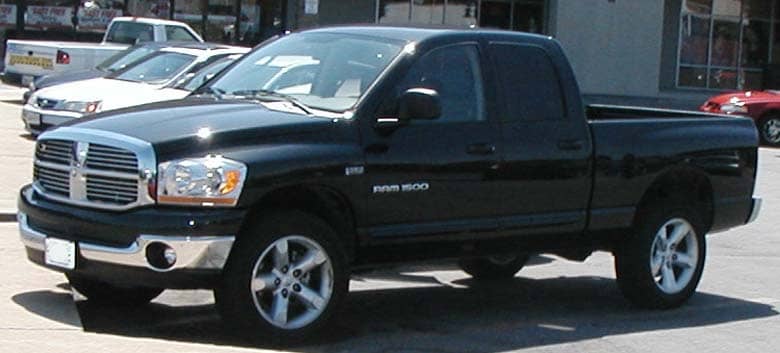

This product page lists HID & LED's for 2006-2011 Ram trucks with single bulbs per headlight (called two headlight systems.) These years were also available with a four headlamp system which uses separate bulbs for high and low. If your Ram is four headlamp model or a different year, click here. If you have any questions Contact Us for more assistance.

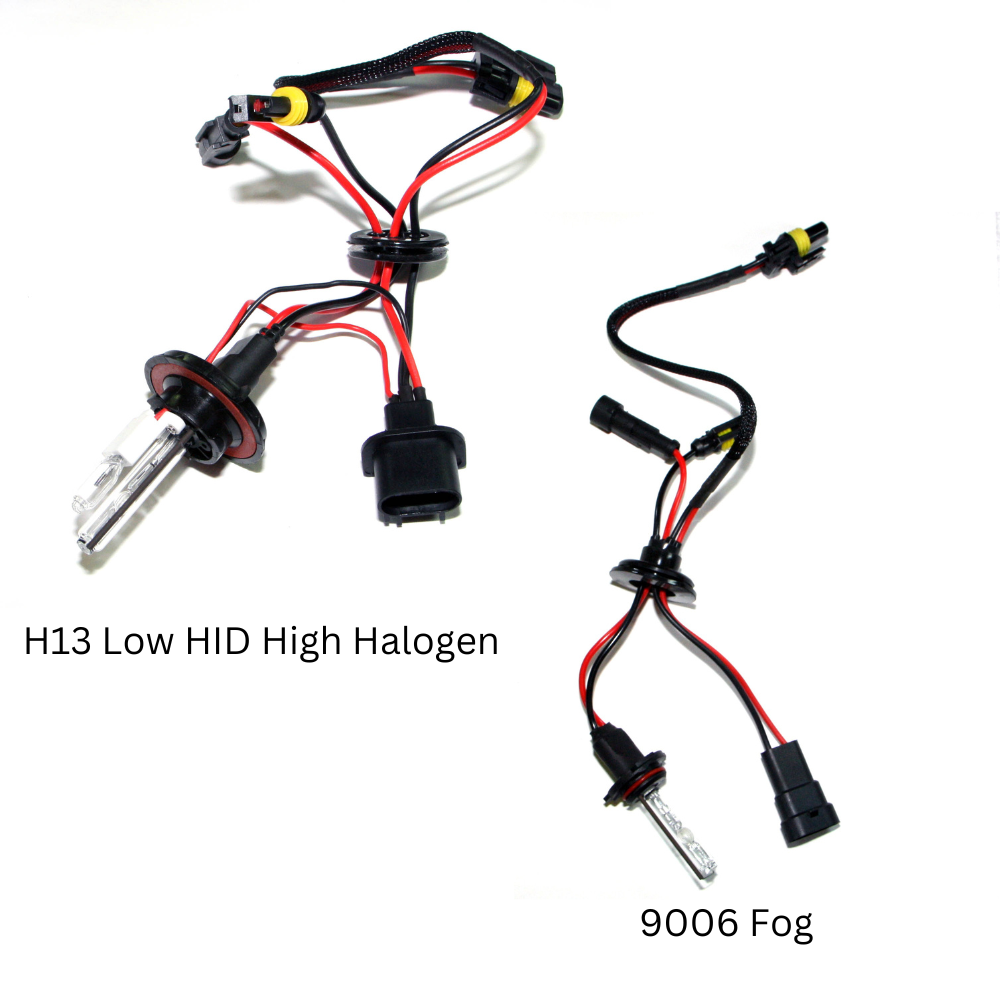

Two headlight Rams use a single H13 bulb per side for high and low and 9006 foglights bulbs. Only the Lowbeams and foglights can be upgraded on these trucks plug and play. The Highbeam portion of the H13 bulb can only be upgraded if Daytime Running Lights have been disabled prior to installing a kit, or the truck is US spec. This also precludes us from installing a LED kit in the headlights. We have H13 HID kits with a lowbeam HID element and a halogen highbeam element designed specifically for this application. This HID kit will work plug and play with DRL and maintain highbeam operation.
The brightest option on these trucks are 55w HID kits in 4300K. 55w HIDs can have cold-start issues below -30C. If you live in northern Canada, consider an 35w kit. For most Canadians, a 55w kit in 4300Kis the optimal choice for the lowbeams. For city driving, a lowbeam conversion is generally sufficient. LEDs are also a great option and deliver nearly the same performance as a 55w HID kit at a lower price point, but on this model are only available for the foglights. LEDs are available only in 6000K, HIDs are available in all the following colours:
- Smart PWM CANBUS HID Kits (Plug & Play)
- No splicing wires
- FREE Nationwide Canadian shipping
- AC HIDs, Wattage is RMS not peak
- Lumens ratings per bulb, not kit
- ALL parts for installation included
- Built-in CANBUS, nothing else needed
- Laser aligned UV cut Quarts bulbs
- 100% Shock-proof and Water-proof
- Installation Manual Included
- Warranty Covers ALL Components
- Canadian DRL Compatible (As indicated)
- Shipped from Canada (NO DUTY!)

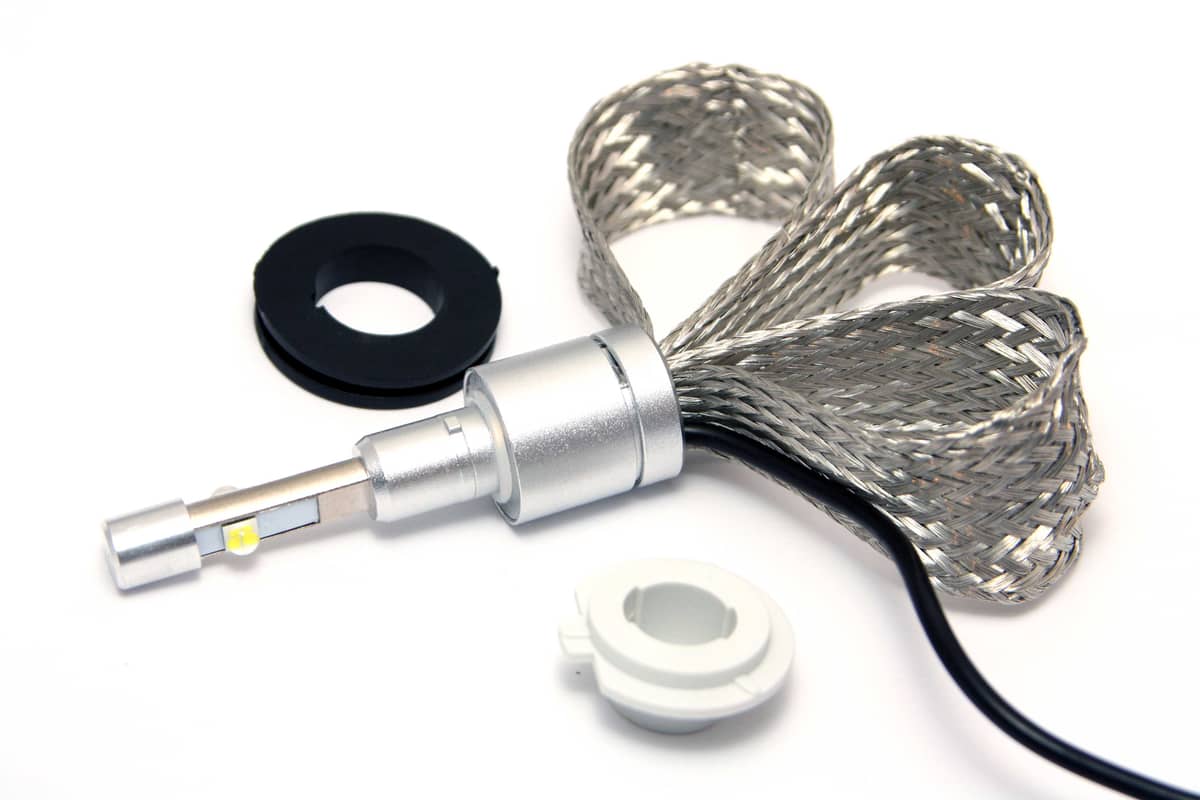

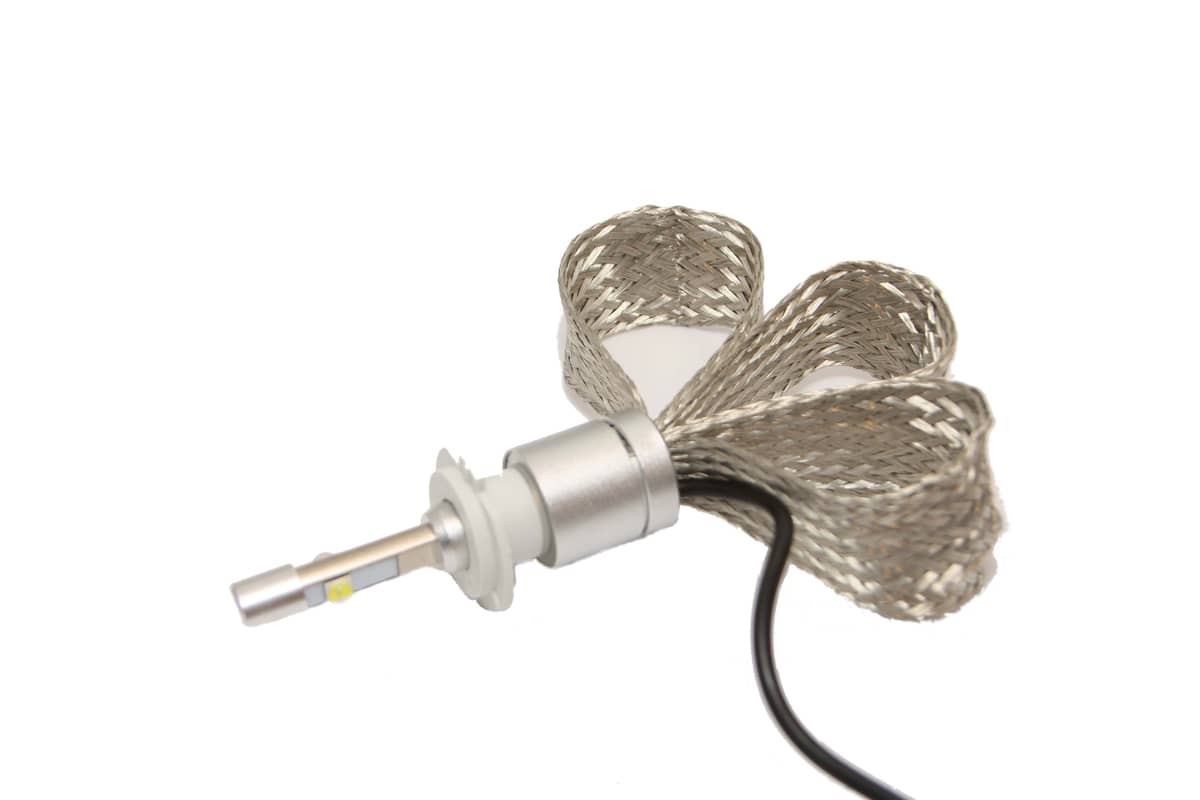

- Smart PWM CANBUS LED Kits (Plug & Play)
- Free Tracking Number & Insurance
- Live Chat Support with Trained Staff
- Questions? Call us! (647) 547-1962

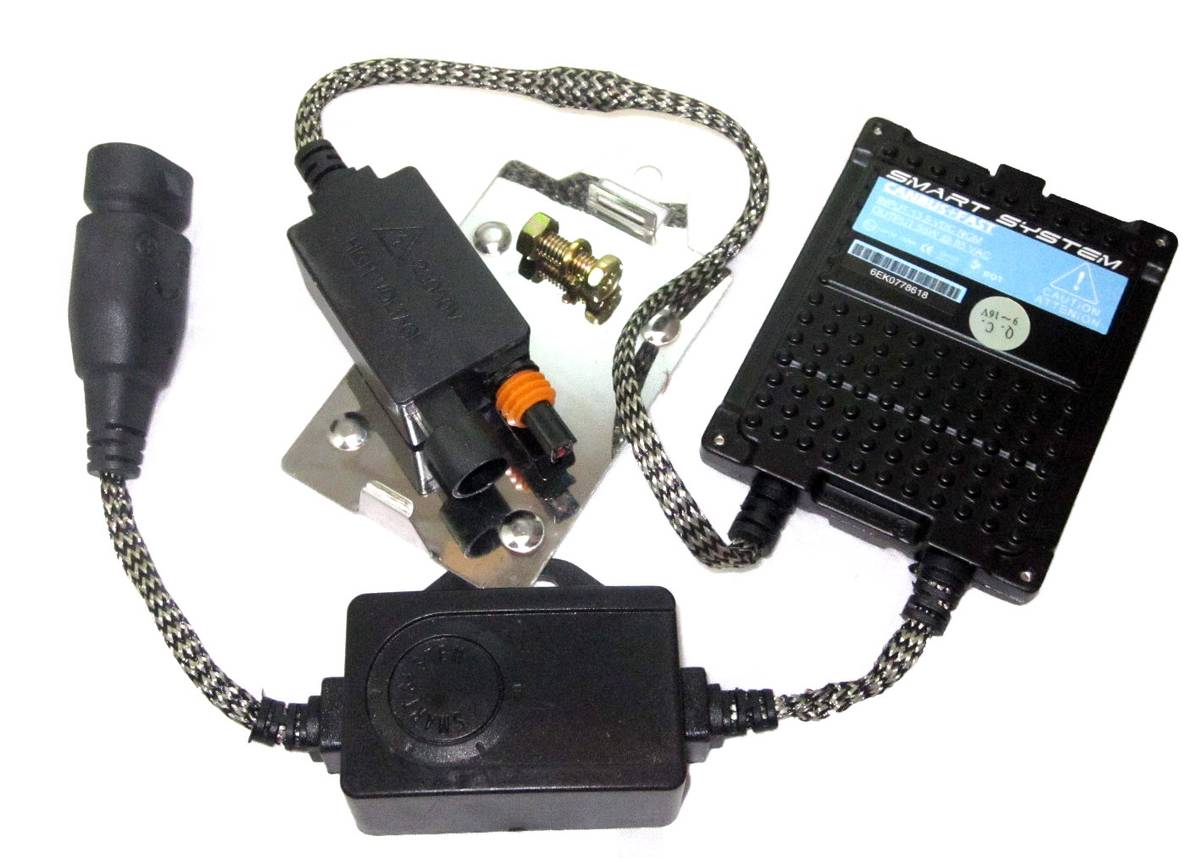

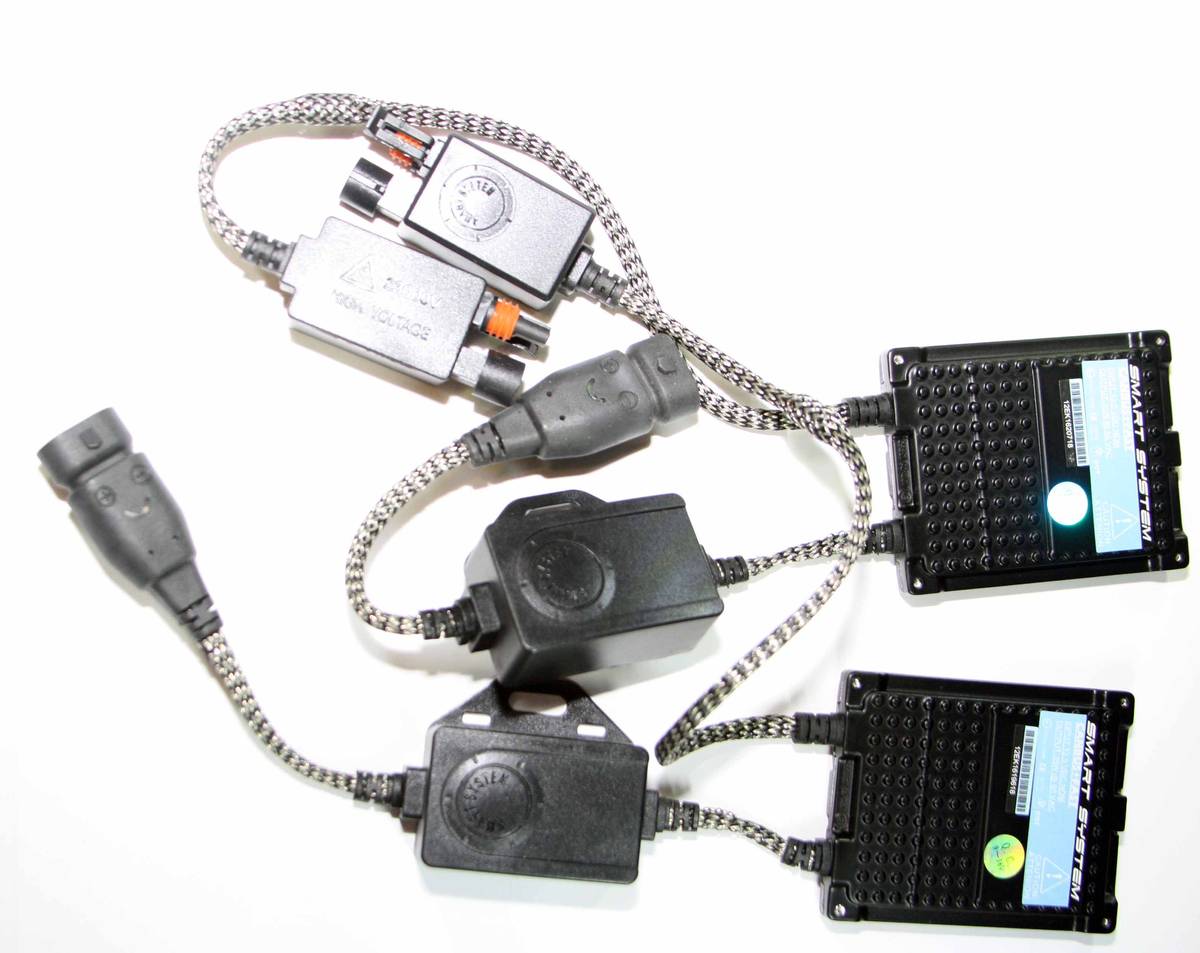

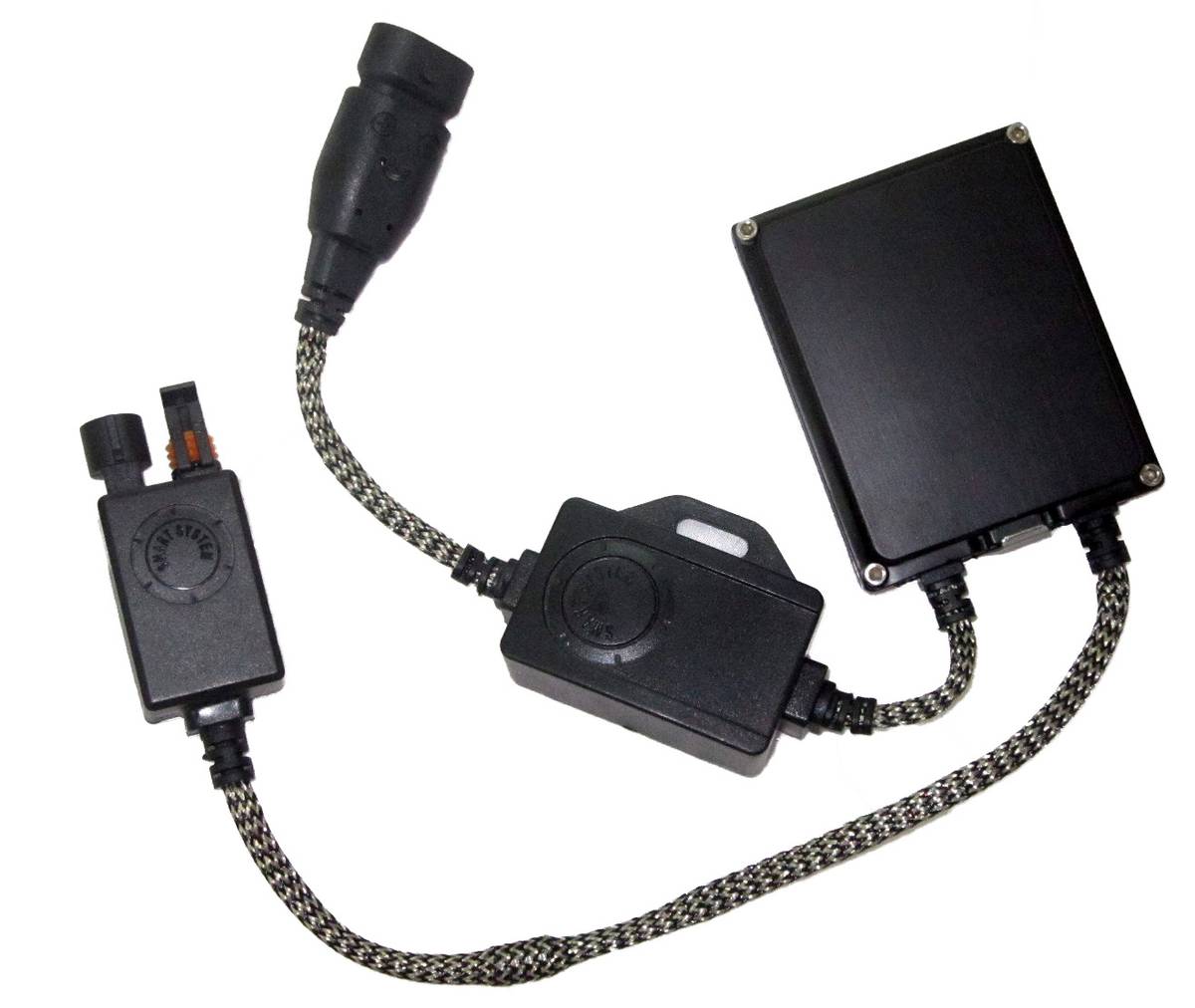

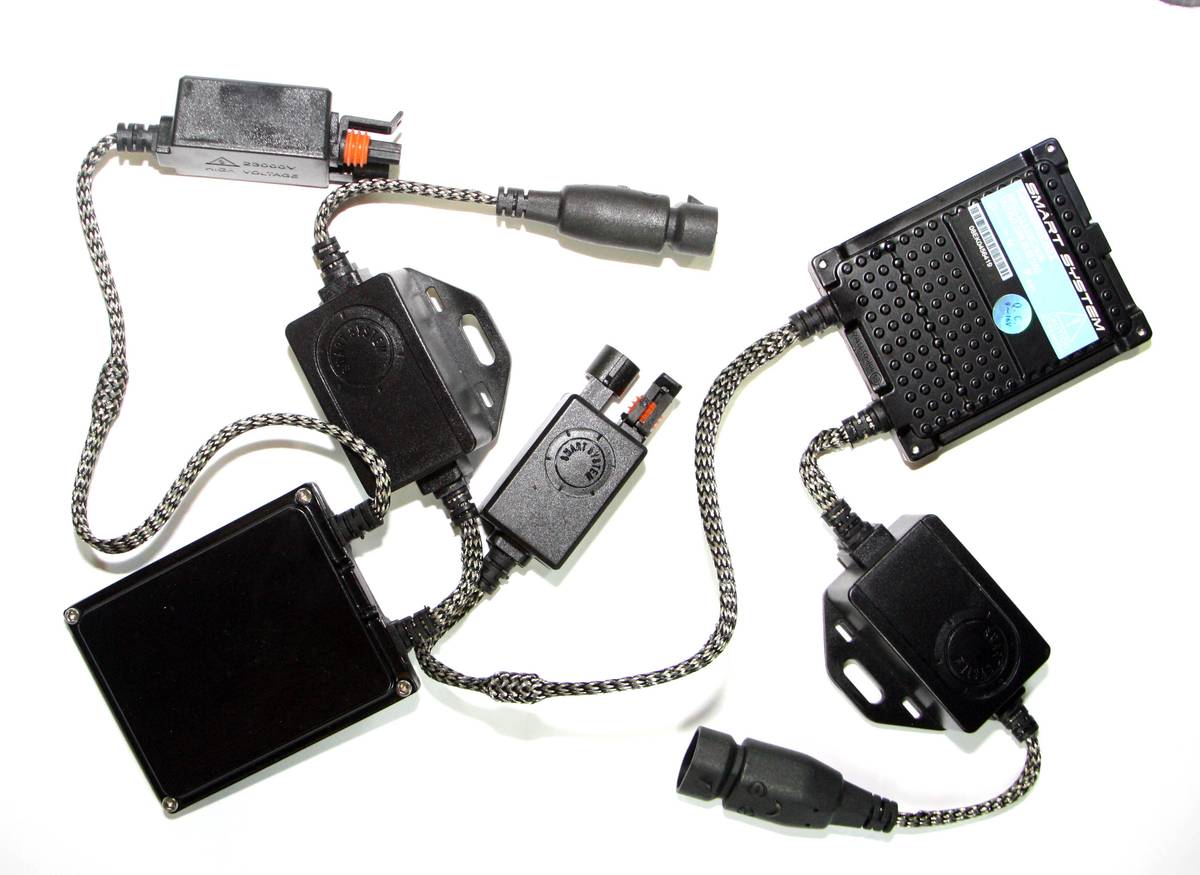

AbsoluteHID Smart PWM CANBUS HID Kits
- CANBUS prevents vehicle ECU from detecting HID Kit
- Smart PWM prevents TIPM turning off kit after 10-15min
- Digitally regulated ballasts extends bulb life (up to 4 years)
- Smart PWM HID kits have the fastest warm-up time (Achieve 80% brightness within 1 second)
- NO Flickering
- Standard brightness 35w & Max brightness 55w kits available
- Factory halogen bulbs are 55w
- 55w kits do not work well below -30C
- 35w kits work well to -35C
- Below these temperatures, ballasts may need to be turned on and off several times to fire up.
- Longest-lasting lighting upgrade (up to 30000 hours)
- Unlike HID, no bulb replacement every 3500 hours
- No ballast to mount (easy install!)
- Thermal bands for maximum heat dissipation
- Brand name diodes
- Instant-on technology
AbsoluteHID Technical Specifications:
Component Origin: Germany Component Assembly: Guangzhou, China Bulb Assembly: Taipei, Taiwan Associated Ratings: E13, E11, ISO:9006 Input Voltage: 9~15.9 VDC (Optimal 13.5VDC) Output Voltage: 85 VAC CANBUS: SMART PWM .5ohm Rev 2.1a |
Wattage (RMS): 35W Startup Amperage Draw: 4.7A Constant Amperage Draw: 3.5A Full brightness: 0.7 Seconds @ 10 °C, 1 bar. Bulb Lumen Output: ~3250lum (@ 4300K) Reverse Polarity Protection: Yes, MOSFET (internal) Temperature Rating: -35°C - 105°C |
Component Origin: Germany Component Assembly: Guangzhou, China Bulb Assembly: Taipei, Taiwan Associated Ratings: E13, E11, ISO:9006 Input Voltage: 9~15.9 VDC (Optimal 13.5VDC) Output Voltage: 85 VAC Temperature Rating: -30°C - 105°C |
Wattage (RMS): 55W Startup Amperage Draw: 5.6 Constant Amperage Draw: 4.5 Full brightness: 0.7 Seconds @ 10 °C, 1 bar. Bulb Lumen Output: ~5000lum (@ 4300K) Reverse Polarity Protection: Yes, MOSFET (internal) |
Component Design: CREE (Raleigh, NC, USA) Component Assembly: CREE (Guangzhou, China) Associated Ratings: E4, E11, ISO:9006, ISO:14001 Input Voltage: 11.7~24.9 VDC (Optimal 13.5VDC) Full brightness: Instant Operating Lifetime: 30000 Hours |
Wattage (RMS): 80W (40w LED x2) Startup Amperage Draw: 3.2 @ 12v Constant Amperage Draw: 3.2 @ 12v Bulb Lumen Output: ~4800lm (@ 6000K) Reverse Polarity Protection: Yes Temperature Rating: -50°C - 65°C |
A Conversion kit is required for every pair of lights you wish to upgrade;These kits are fully compatible with PWM, Daytime running lights, automatic headlight systems, and all other Dodge onboard electronics.
