Cadillac ATS
Cadillac ATS 2013 - 2019 HID Kit & D3S Bulbs
Cadillac ATS 2013 - 2019 HID Kit & D3S Bulbs
Couldn't load pickup availability

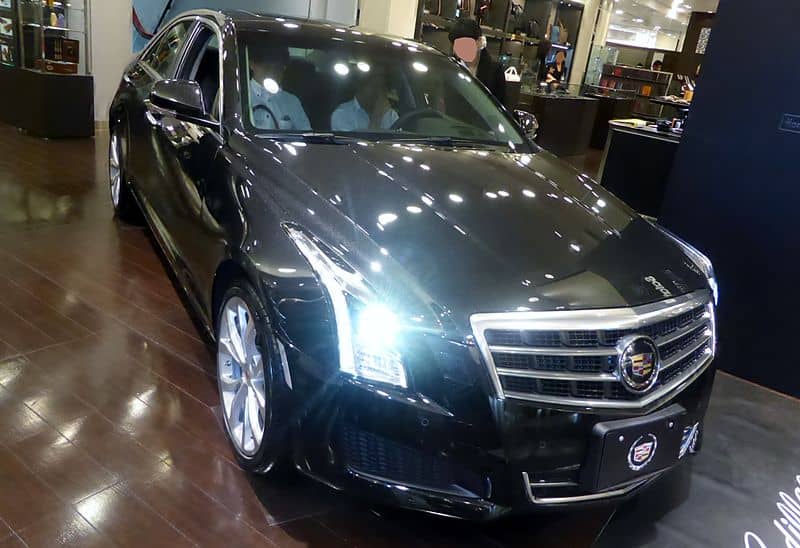

The 2013 to 2019 Cadillac ATS came with two headlight options from the factory: Factory-installed HID's, and regular halogen headlights.

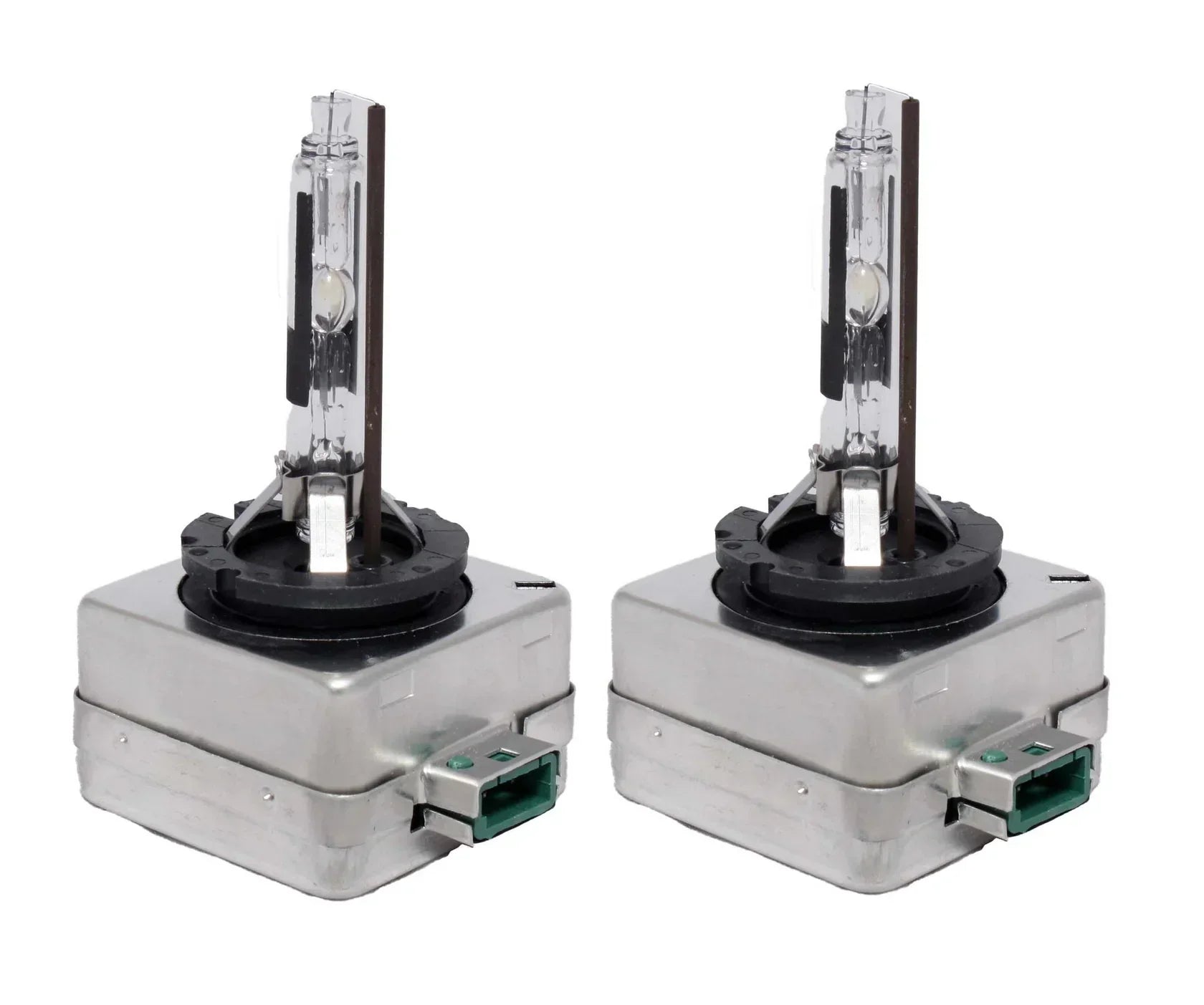

Factory HID models use D3S bulbs, available in all colours, with the original 4300K being brightest. Factory HID models use a single bulb for high and low. If you have this model and have a bulb out or dim you will need a new pair.

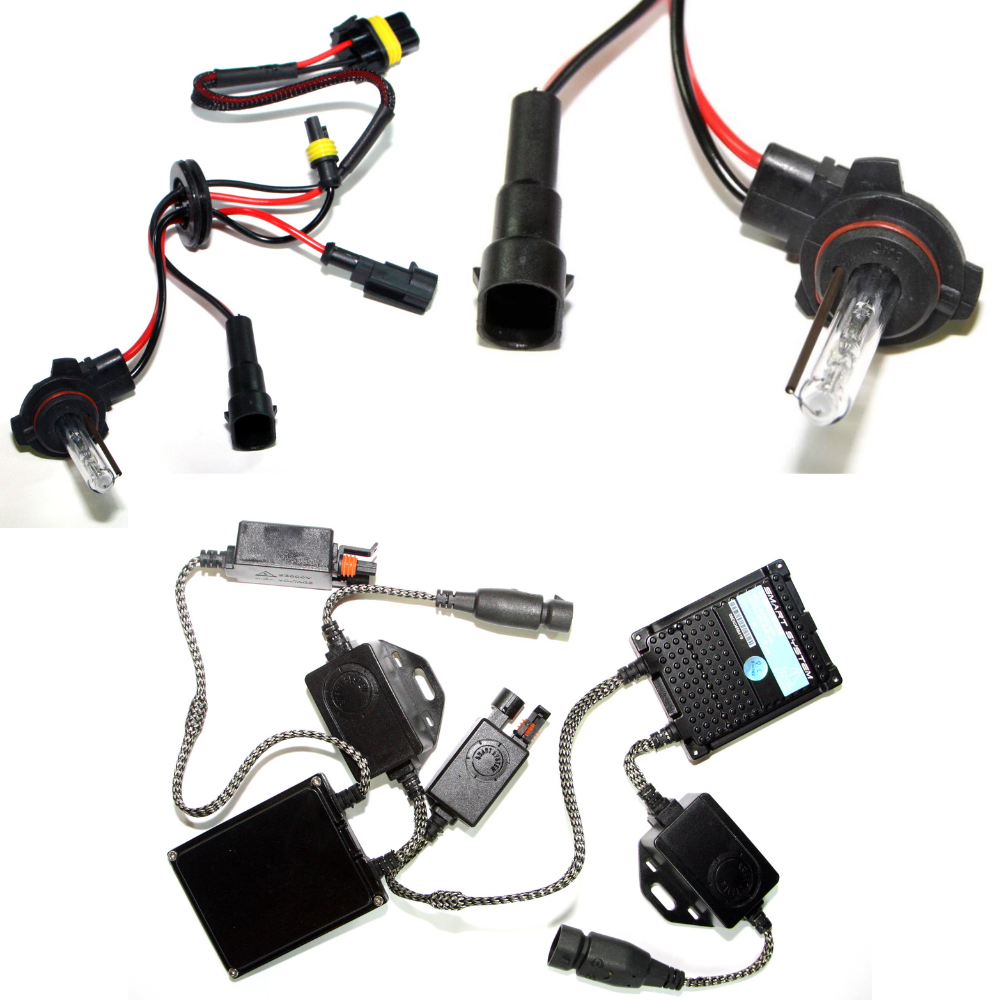

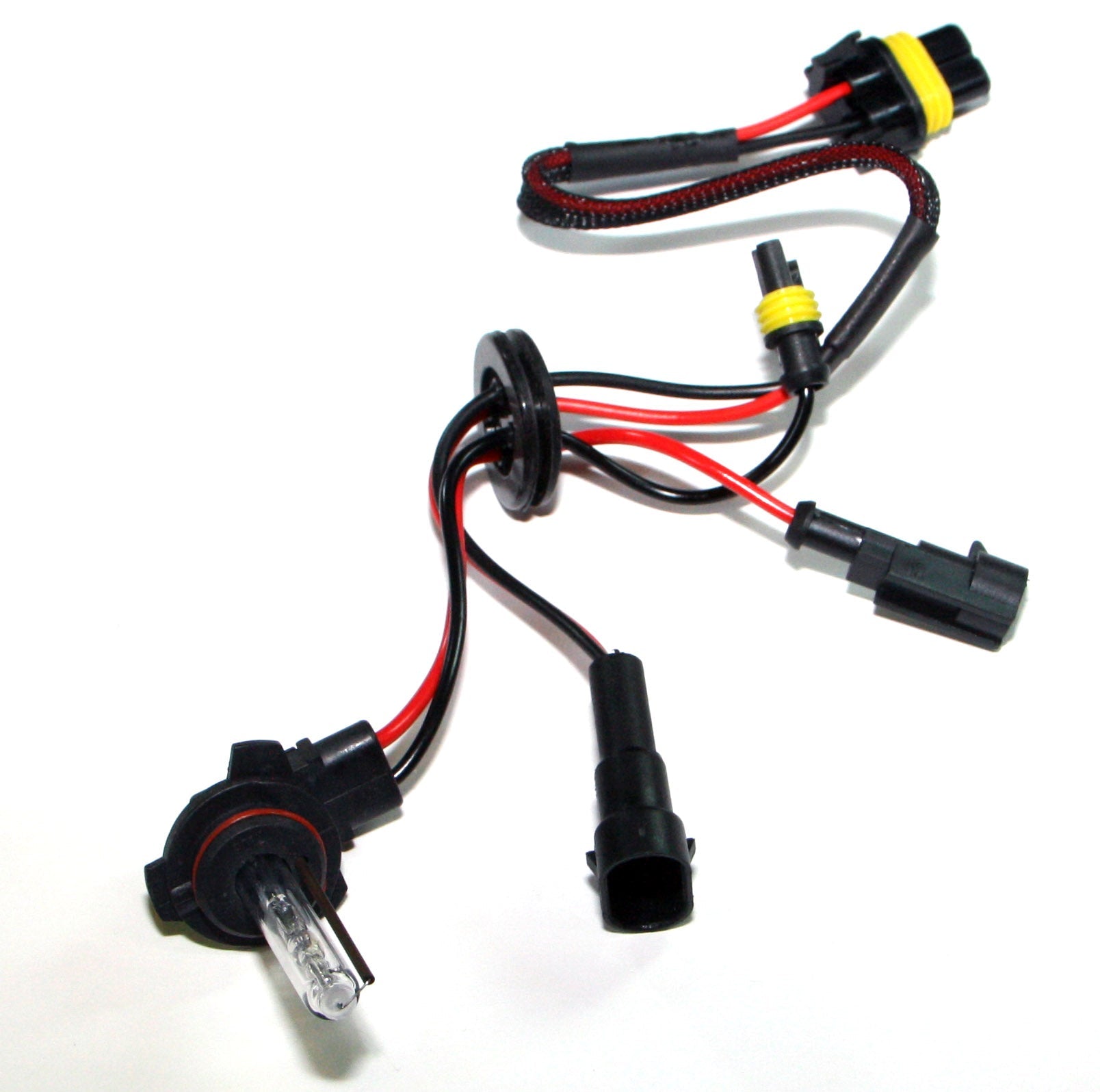

Factory halogen ATS' use 9012 bulbs in a projector lens. These projector headlights not only offer the best possible optics, but do high and low using a single bulb. This means if we're interested in an upgrade, a single kit converts both lowbeams and highbeams, plug and play. Don't be fooled by your dim halogen bulbs, these are the best headlights ever fitted to a Cadillac, they just need a powerful light source. As with all projector lenses, we recommend an HID kit, as omnidirectional light sources energize projectors to get the best possible beam pattern. LED's will also work, but aren't quite as bright as a 55w kit. 55W HID's can have cold-start issues below -30C. If you live in northern Canada, consider a 35w HID kit or LED's. For most Canadians, a 55w HID is the best option. Please click here or Contact Us for more assistance.
AbsoluteHID Recommends 4300K (White) Factory colour HID's for all applications. White HID's are brighter, less distracting to other drivers and offer maximum visibility. LED kits come ONLY in 6000K
- Smart PWM CANBUS HID Kits (Plug & Play)
- FREE Nationwide Canadian shipping
- AC HIDs, Wattage is RMS not peak
- Lumens ratings per bulb, not kit
- ALL parts for install included
- Built-in CANBUS, nothing else needed
- Laser aligned UV cut Quarts bulbs
- NO Relays or dangerous Resistors
- 100% Shock-proof and Water-proof
- Installation Manual Included
- Warranty Covers ALL Components
- Canadian DRL Compatible (As indicated)
- Shipped from Canada (NO DUTY!)

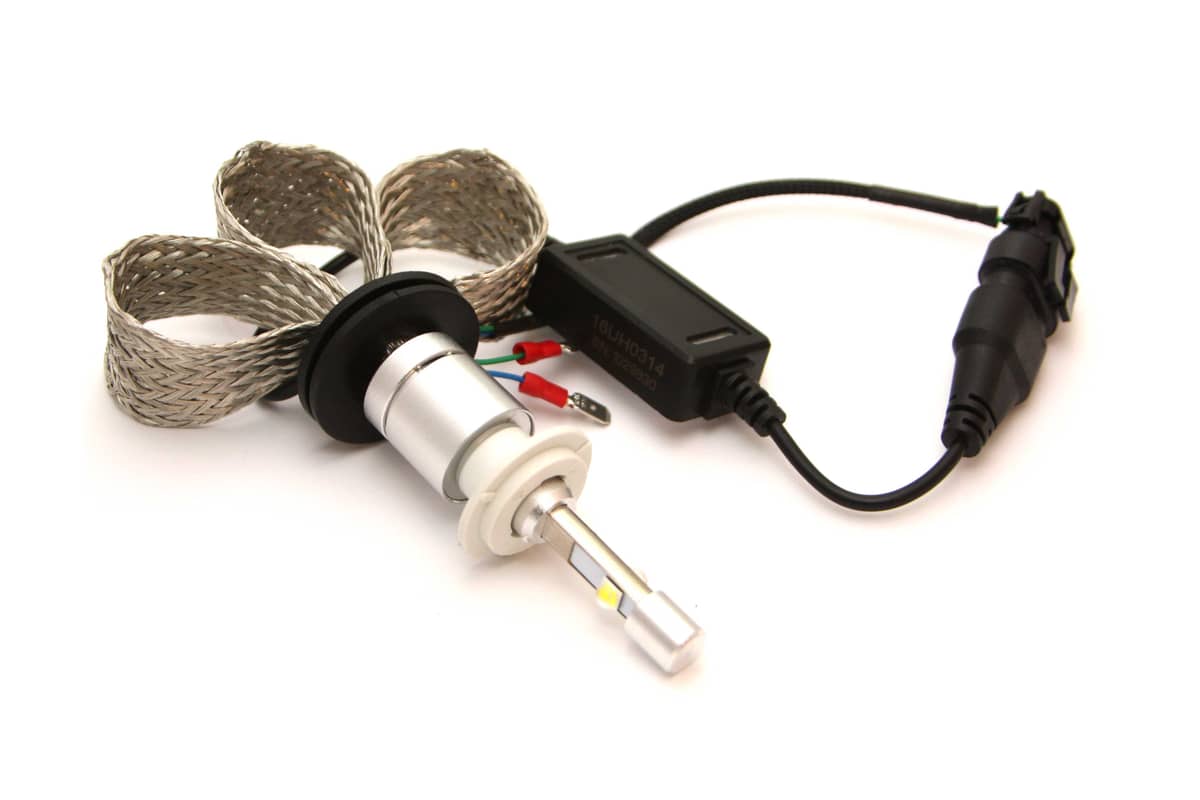

- Smart PWM CANBUS LED Kits (Plug & Play)
- Free Tracking Number & Insurance
- Live Chat Support with Trained Staff
- Questions? Call us! (647) 547-1962

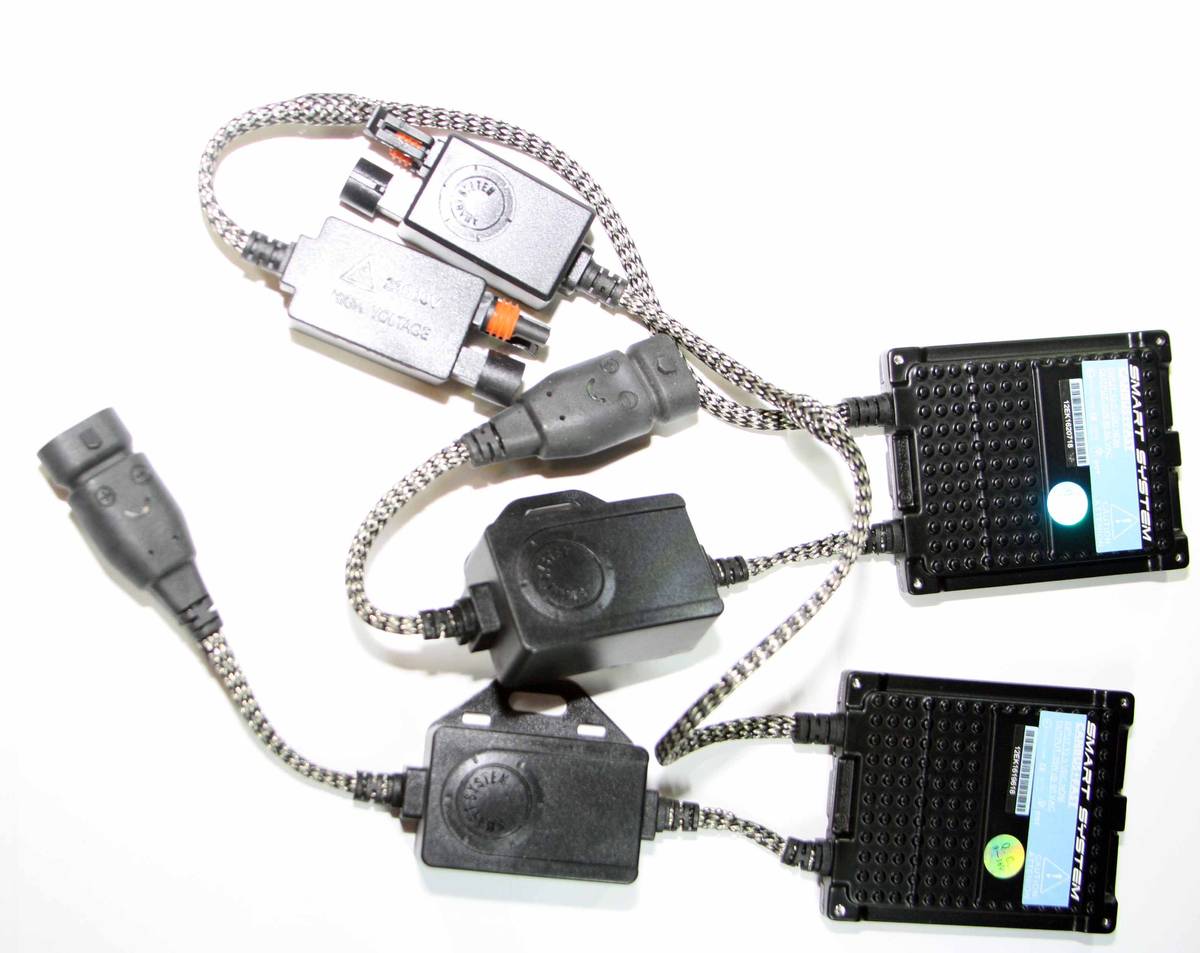

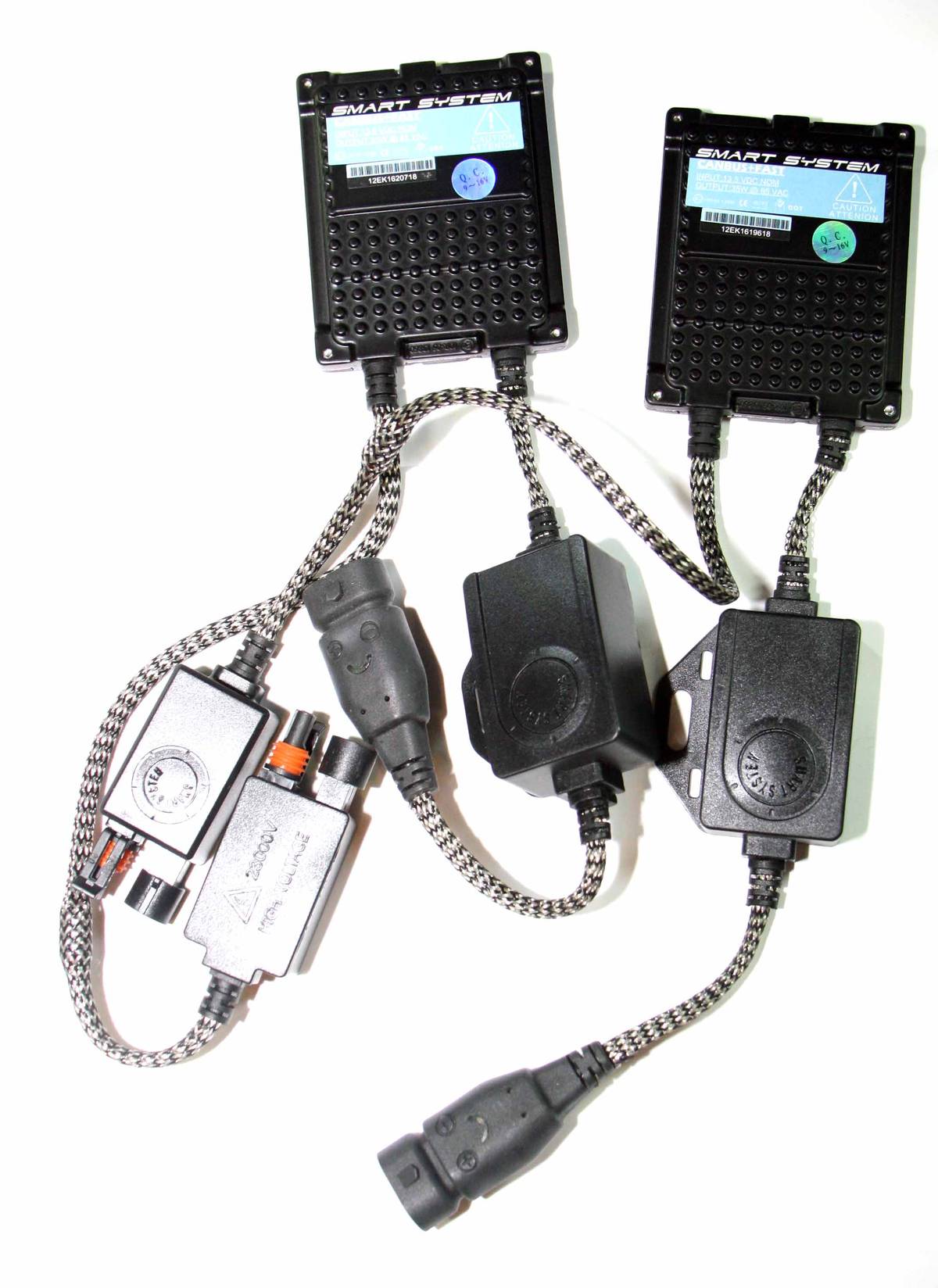

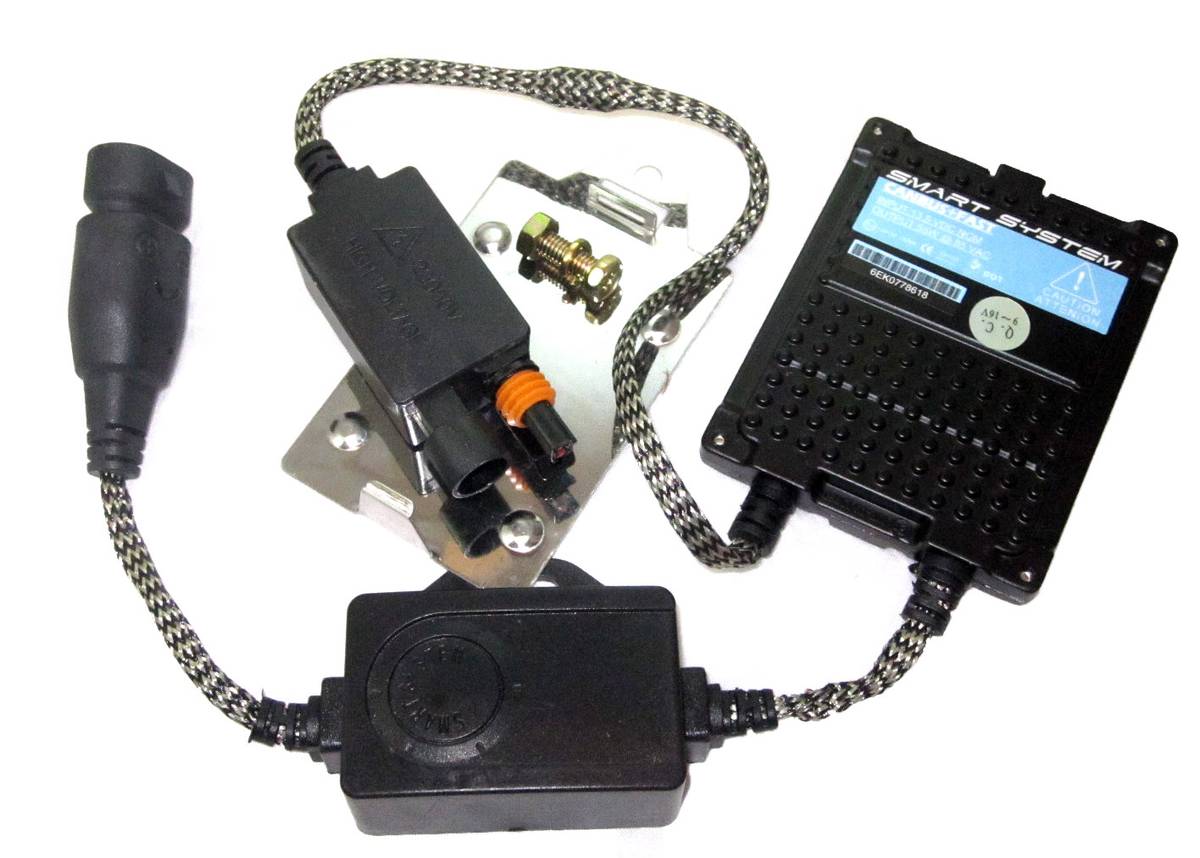

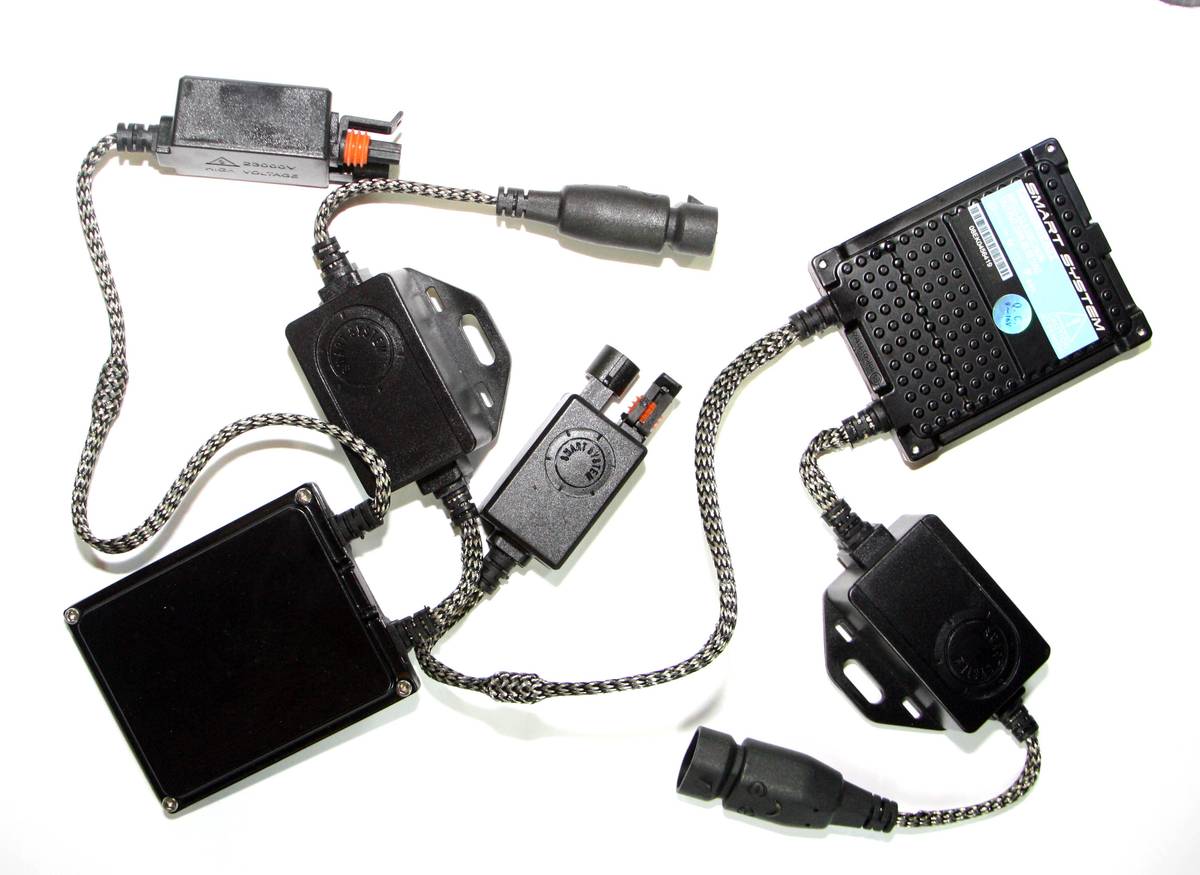

AbsoluteHID Smart PWM CANBUS HID Kits
- CANBUS prevents vehicle ECU from detecting HID Kit
- Smart PWM prevents TIPM turning off kit after 10min
- Digitally regulated ballasts extends bulb life (up to 4 years)
- Smart PWM HID kits have the fastest warm-up time (Achieve 80% brightness within 1 second)
- NO Flickering
- Standard brightness 35w & Max brightness 55w kits available
- Factory halogen bulbs are 55w
- 55w kits do not work well below -30C
- 35w kits work well to -35C
- Longest lasting lighting upgrade (up to 30000 hours)
- Unlike HID, no bulb replacement every 3500 hours

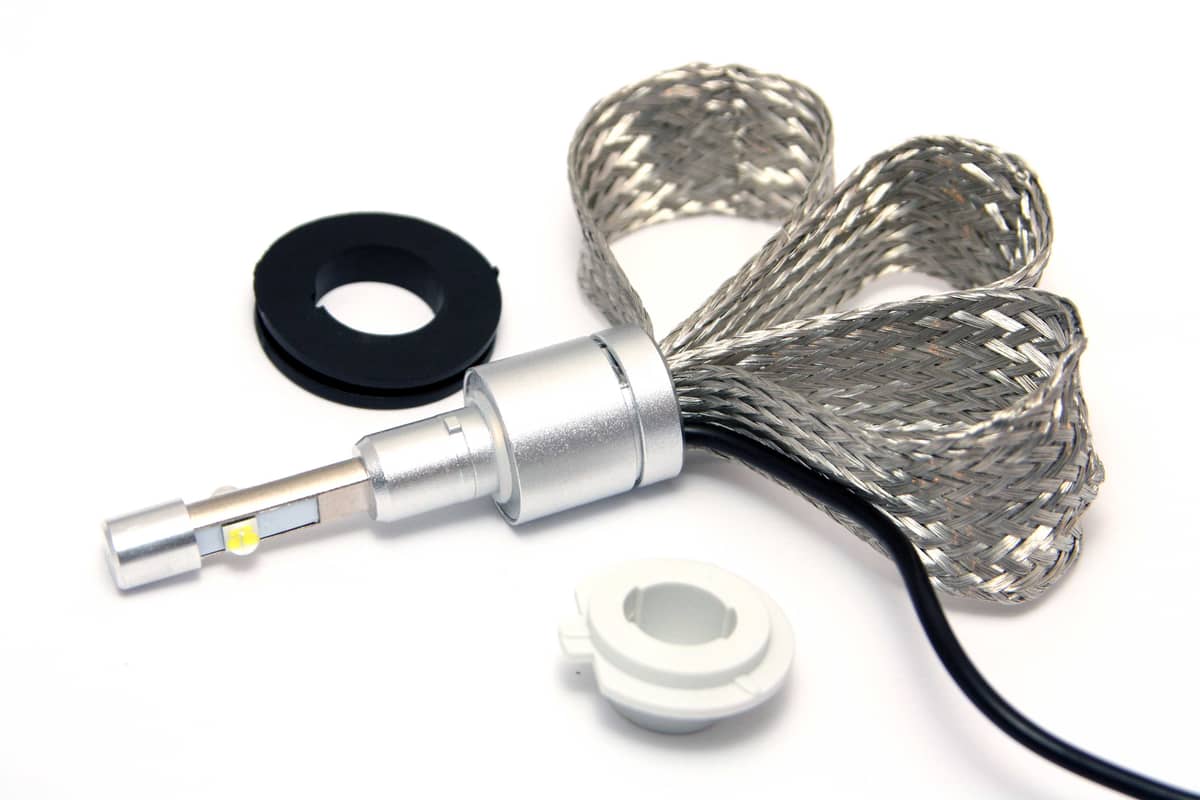

- No ballast to mount (easy install!)
- Thermal bands for maximum heat dissipation
- Brand name diodes
- Instant-on technology
AbsoluteHID Technical Specifications:
|
Component Origin: Germany Component Assembly: Guangzhou, China Bulb Assembly: Taipei, Taiwan Associated Ratings: E13, E11, ISO:9006 Input Voltage: 9~15.9 VDC (Optimal 13.5VDC) Output Voltage: 85 VAC CANBUS: SMART PWM .5ohm Rev 2.1a |
Wattage (RMS): 35W Startup Amperage Draw: 4.7A Constant Amperage Draw: 3.5A Full brightness: 0.7 Seconds @ 10 °C, 1 bar. Bulb Lumen Output: ~3250lum (@ 4300K) Reverse Polarity Protection: Yes, MOSFET (internal) Temperature Rating: -35°C - 105°C |
|
Component Origin: Germany Component Assembly: Guangzhou, China Bulb Assembly: Taipei, Taiwan Associated Ratings: E13, E11, ISO:9006 Input Voltage: 9~15.9 VDC (Optimal 13.5VDC) Output Voltage: 85 VAC Temperature Rating: -30°C - 105°C |
Wattage (RMS): 55W Startup Amperage Draw: 5.6 Constant Amperage Draw: 4.5 Full brightness: 0.7 Seconds @ 10 °C, 1 bar. Bulb Lumen Output: ~5000lum (@ 4300K) Reverse Polarity Protection: Yes, MOSFET (internal) |
|
Component Design: CREE (Raleigh, NC, USA) Component Assembly: CREE (Guangzhou, China) Associated Ratings: E4, E11, ISO:9006, ISO:14001 Input Voltage: 11.7~24.9 VDC (Optimal 13.5VDC) Full brightness: Instant Operating Lifetime: 30000 Hours |
Wattage (RMS): 80W (40w LED x2) Startup Amperage Draw: 3.2 @ 12v Constant Amperage Draw: 3.2 @ 12v Bulb Lumen Output: ~4800lm (@ 6000K) Reverse Polarity Protection: Yes Temperature Rating: -50°C - 65°C |
A Conversion kit is required for every pair of lights you wish to upgrade; These kits are fully compatible with PWM, Daytime running lights, automatic headlight systems, and all other Ford onboard electronics.
