Jeep Cherokee

Jeep Cherokee 2014 - 2023 HID Kit, LED & Bulbs

Jeep Cherokee 2014 - 2023 HID Kit, LED & Bulbs

Regular price $149.99 CAD
Regular price Sale price $149.99 CAD
Sale Sold out
Shipping calculated at checkout. Free options available.

This product page lists HID & LED's for 2014 to 2023 Jeep Cherokees. For other years please click here or Contact Us for more assistance.

This generation Jeep Cherokee came in two models: Factory-installed HID's, and regular halogen headlights.

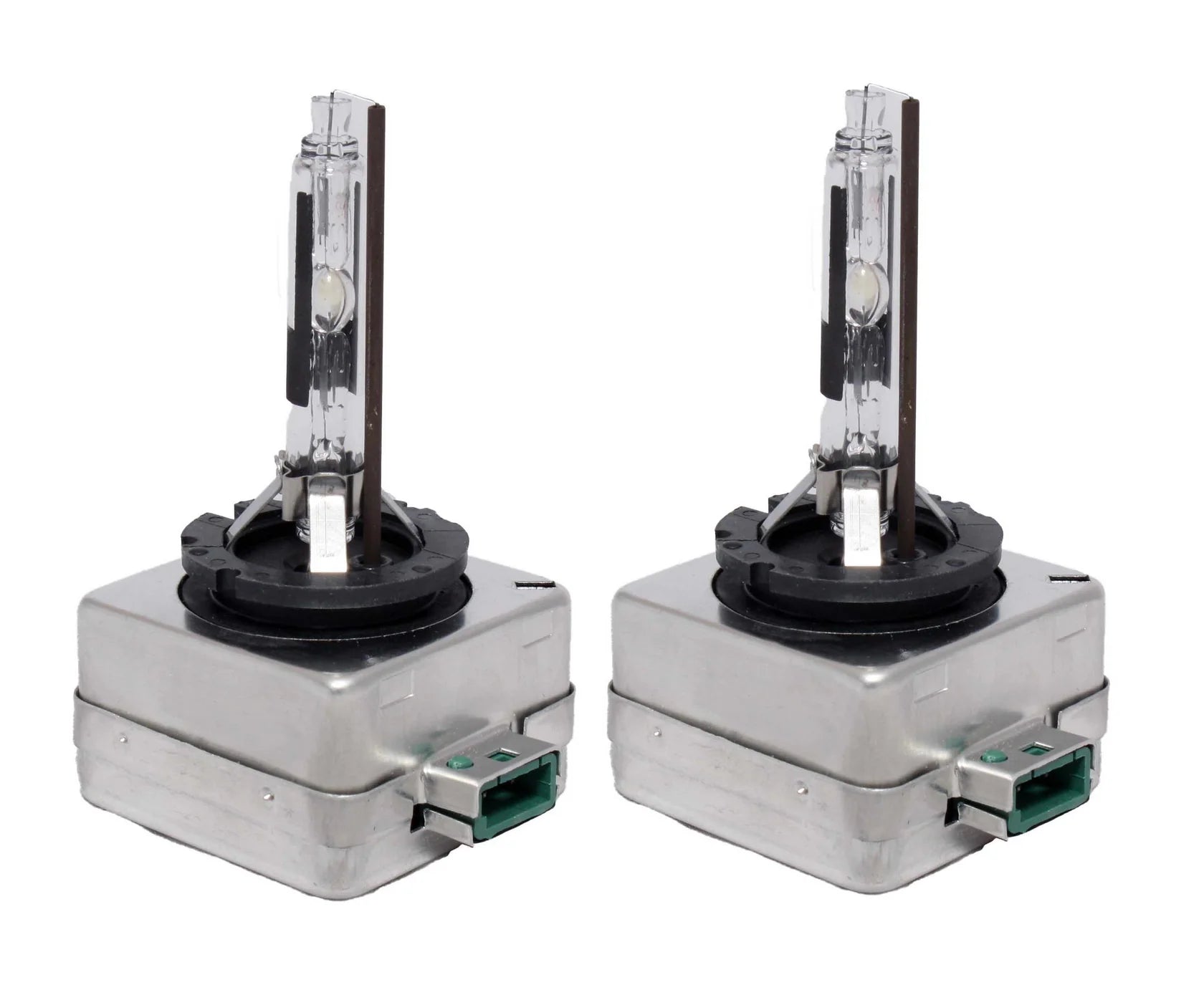

Factory HID models use D3S bulbs, available in all colours. Factory HID models use a single bulb for high and low. Foglights use 5202 bulbs and can be upgraded to 35w HID or LED Plug and Play. 55w HID's produce too much heat for these small foglight housings.

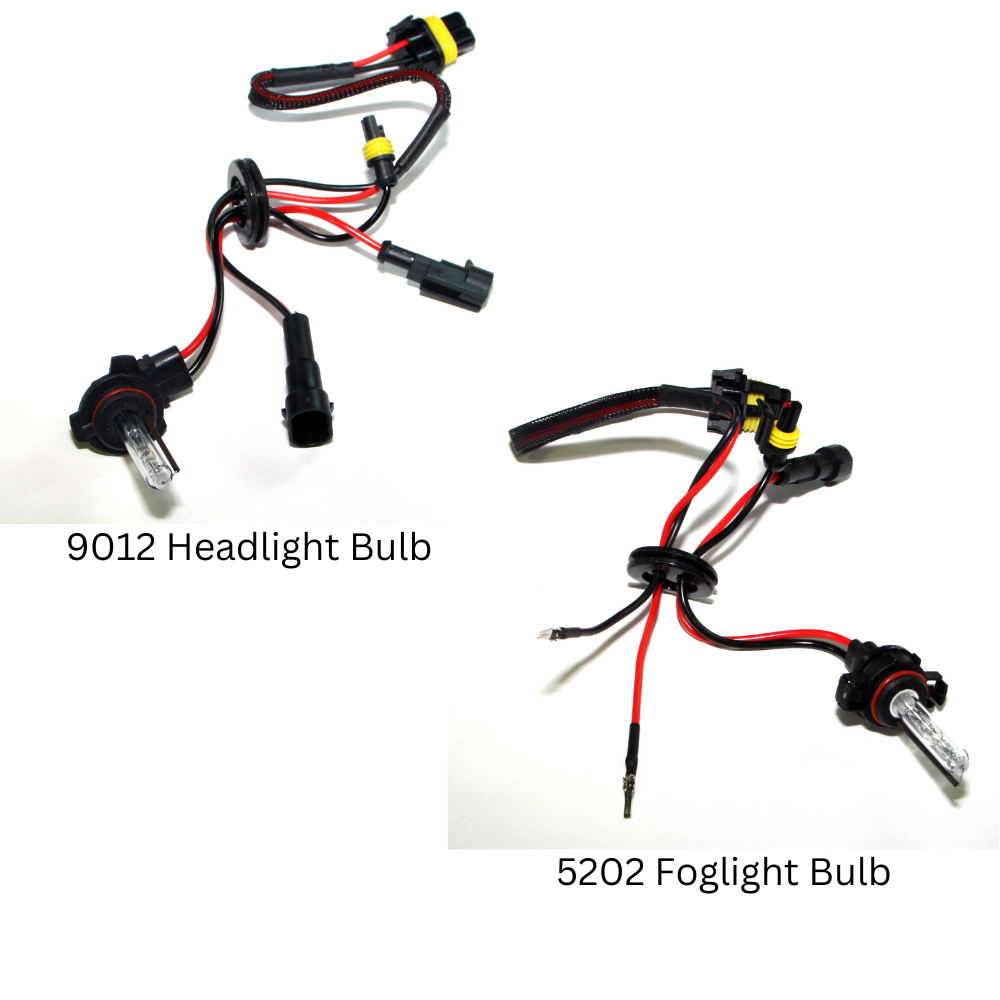

Factory halogen Cherokees use a single bulb in a projector for high and low. This means a single kit will convert both lowbeams and highbeams. 2014 and 2015's use 9012 bulbs, 2016 and newer cherokees use 9005's. As with all projector housings, HID's are recommended for best beam pattern. LED's, although bright, are not omnidirectional light sources, and have degraded performance in projector lenses. 55W HID's are brightest but can have cold-start issues below -30C. If you live in northern Canada, talk to us about a 35w kit. Foglights use 5202 bulbs and can be upgraded to 35w HID or LED Plug and Play. 55w HID's produce too much heat for these small foglight housings. Headlight bulbs are 55w halogen from factory.


Smart PWM technology is here. While our US competitors beat us to the market with Smart PWM ballasts, we now have the most reliable and cost-effective products for the Canadian market. These kits work plug and play.
Thanks to our purchasing power, we are offering these products at a substantially lower price point than our competition.

  • Smart PWM CANBUS HID Kits (Plug & Play)
  • FREE Nationwide Canadian shipping
  • AC HIDs, Wattage is RMS not peak
  • Lumens ratings per bulb, not kit
  • ALL parts for install included
  • Built-in CANBUS, nothing else needed
  • Laser aligned UV cut Quarts bulbs
  • NO Relays or dangerous Resistors
  • 100% Shock-proof and Water-proof
  • Installation Manual Included
  • Warranty Covers ALL Components
  • Canadian DRL Compatible (As indicated)
  • Shipped from Canada (NO DUTY!)
  • Smart PWM CANBUS LED Kits (Plug & Play)
  • Free Tracking Number & Insurance
  • Live Chat Support with Trained Staff
  • Questions? Call us! (647) 547-1962
AbsoluteHID Kelvin Chart
AbsoluteHID Recommends 4300K (White) Factory colour HID's for all applications. White HID's are brighter, less distracting to other drivers and offer maximum visibility. LED kits come ONLY in 6000K

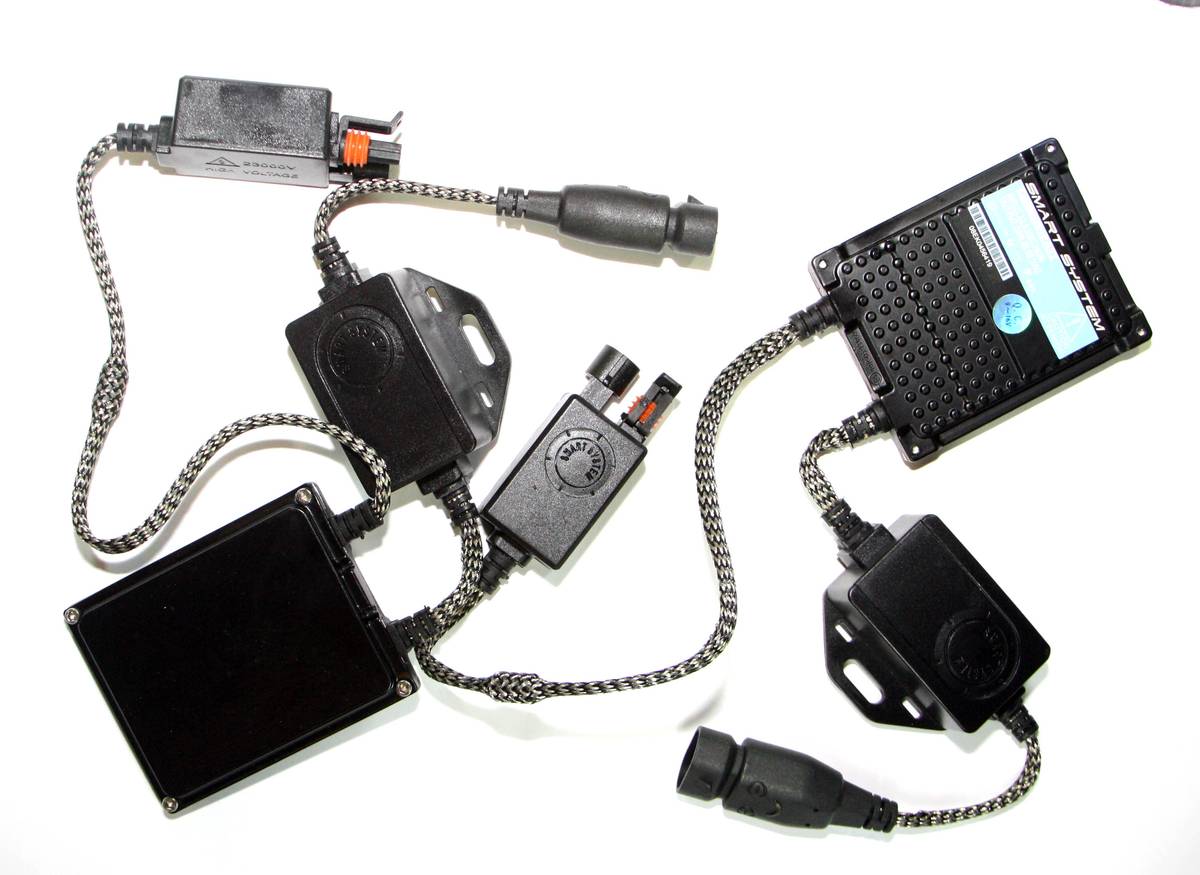

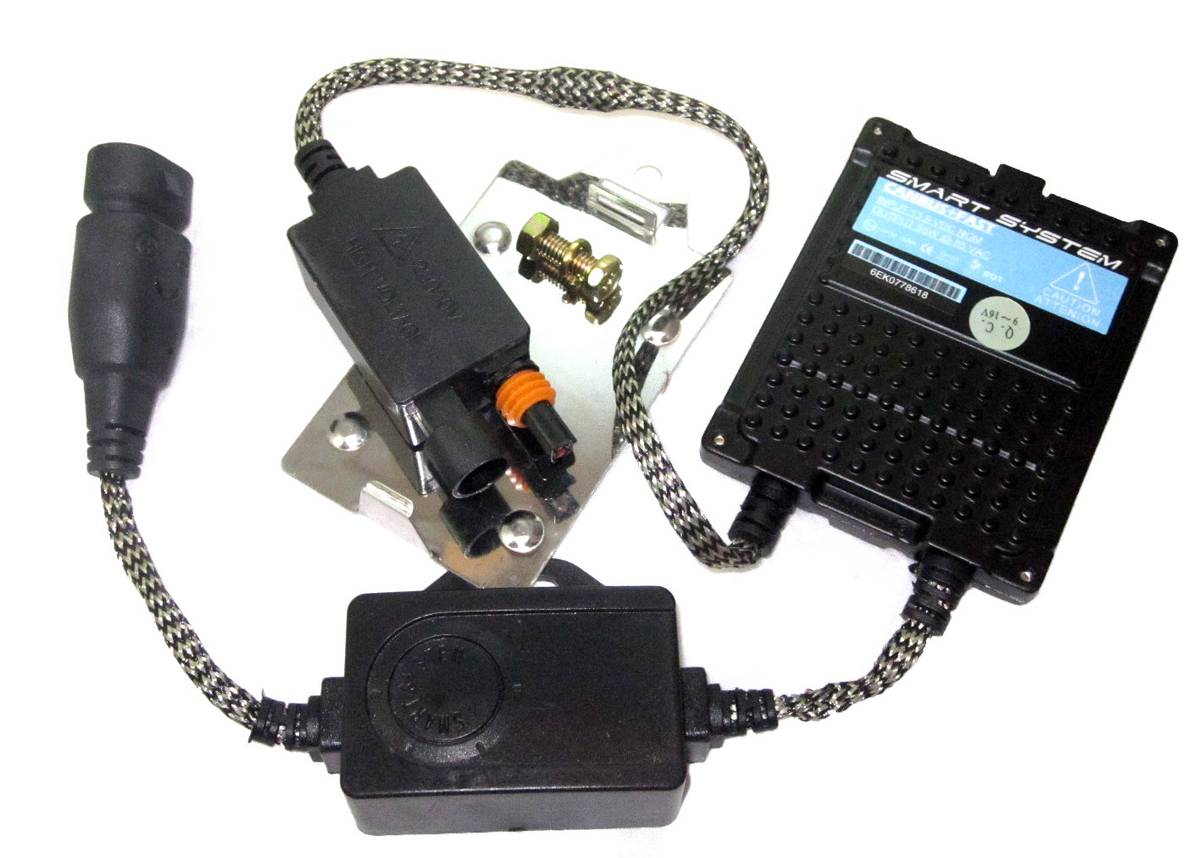

AbsoluteHID Smart PWM CANBUS HID Kits

  • CANBUS prevents vehicle ECU from detecting HID Kit
  • Smart PWM prevents TIPM turning off kit after 10min
  • Digitally regulated ballasts extends bulb life (up to 4 years)
  • Smart PWM HID kits have the fastest warm-up time (Achieve 80% brightness within 1 second)
  • NO Flickering
  • Standard brightness 35w & Max brightness 55w kits available
  • Factory halogen bulbs are 55w
  • 55w kits do not work well below -30C
  • 35w kits work well to -35C

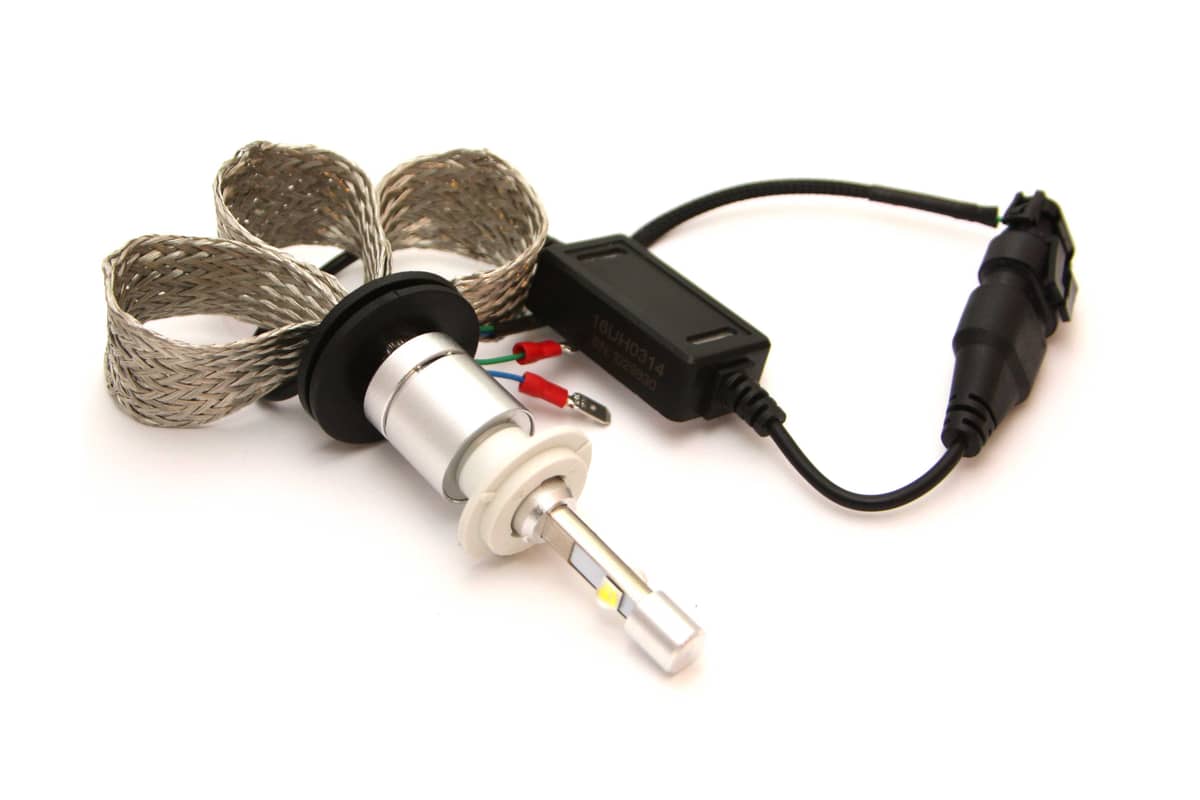

AbsoluteHID CANBUS LED Kit
  • Longest lasting lighting upgrade (up to 30000 hours)
  • Unlike HID, no bulb replacement every 3500 hours
  • No ballast to mount (easy install!)
  • Thermal bands for maximum heat dissipation
  • Brand name diodes
  • Instant-on technology

 AbsoluteHID Technical Specifications:

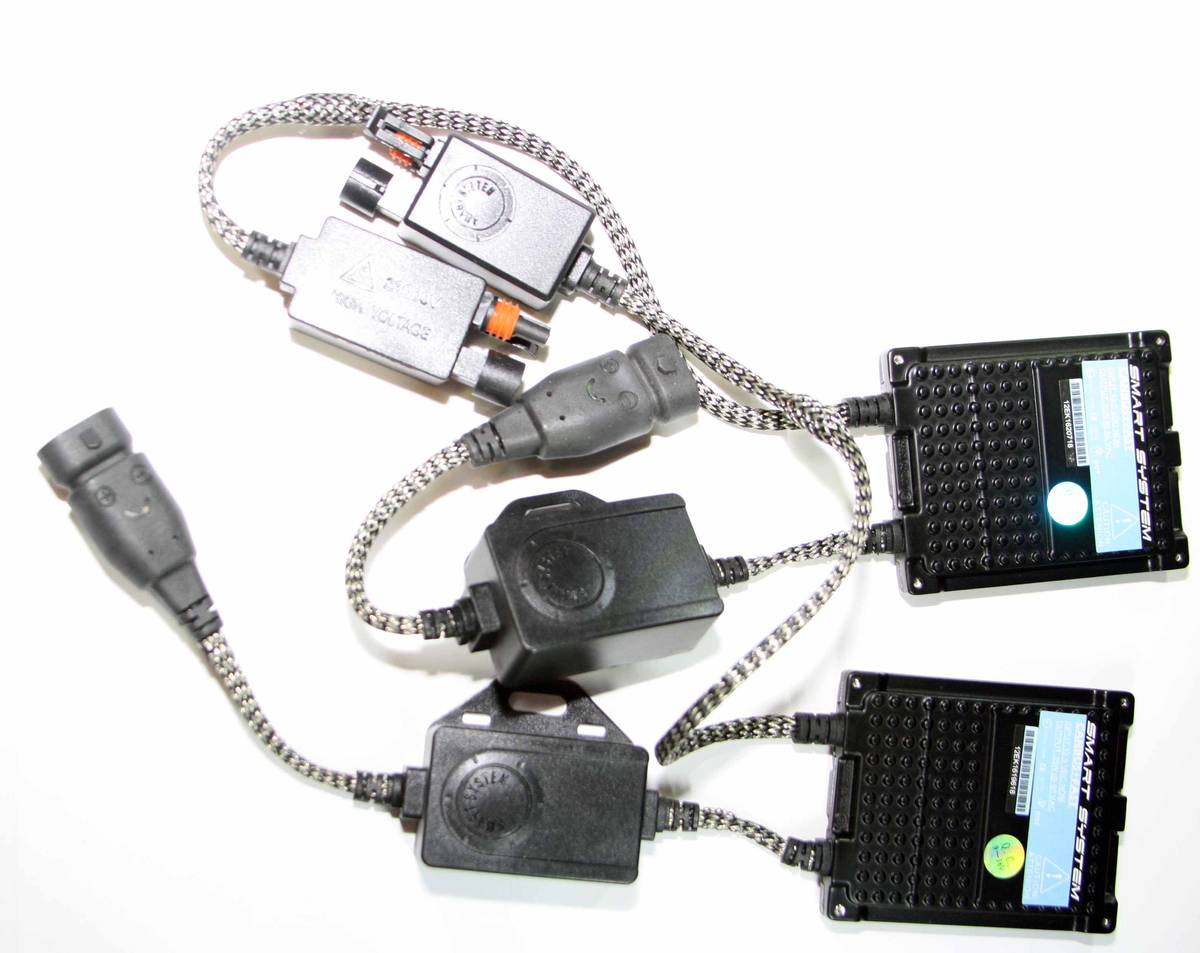

35w Smart PWM CANBUS HID KIT:

Component Origin: Germany

Component Assembly: Guangzhou, China

Bulb Assembly: Taipei, Taiwan

Associated Ratings: E13, E11, ISO:9006

Input Voltage: 9~15.9 VDC  (Optimal 13.5VDC)

Output Voltage: 85 VAC

CANBUS: SMART PWM .5ohm Rev 2.1a

Wattage (RMS): 35W

Startup Amperage Draw: 4.7A

Constant Amperage Draw: 3.5A

Full brightness: 0.7 Seconds @ 10 °C, 1 bar.

Bulb Lumen Output: ~3250lum (@ 4300K)

Reverse Polarity Protection: Yes, MOSFET (internal)

Temperature Rating: -35°C - 105°C

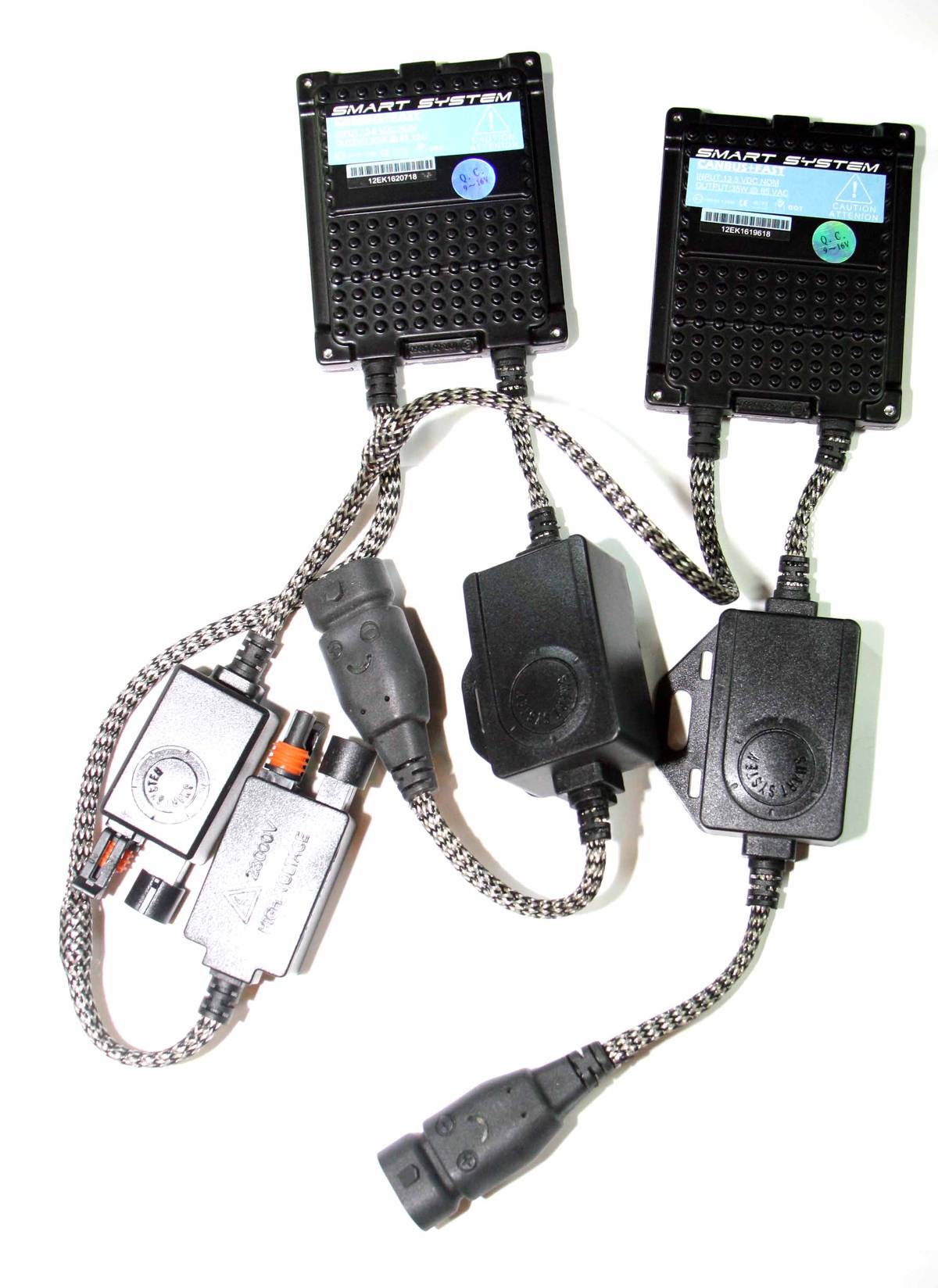

55w Smart PWM CANBUS HID KIT:

Component Origin: Germany

Component Assembly: Guangzhou, China

Bulb Assembly: Taipei, Taiwan

Associated Ratings: E13, E11, ISO:9006

Input Voltage: 9~15.9 VDC  (Optimal 13.5VDC)

Output Voltage: 85 VAC

Temperature Rating: -30°C - 105°C

Wattage (RMS): 55W

Startup Amperage Draw: 5.6

Constant Amperage Draw: 4.5

Full brightness: 0.7 Seconds @ 10 °C, 1 bar.

Bulb Lumen Output: ~5000lum (@ 4300K)

Reverse Polarity Protection: Yes, MOSFET (internal)



4800 Lumen CANBUS LED KIT:

Component Design: CREE (Raleigh, NC, USA)

Component Assembly:  CREE (Guangzhou, China)

Associated Ratings: E4, E11, ISO:9006, ISO:14001

Input Voltage: 11.7~24.9 VDC  (Optimal 13.5VDC)

 Full brightness: Instant

Operating Lifetime: 30000 Hours

Wattage (RMS): 80W (40w LED x2)

Startup Amperage Draw: 3.2 @ 12v

Constant Amperage Draw: 3.2 @ 12v

Bulb Lumen Output: ~4800lm (@ 6000K)

Reverse Polarity Protection: Yes

Temperature Rating: -50°C - 65°C


A  Conversion kit is required for every pair of lights you wish to upgrade;These kits are fully compatible with PWM, Daytime running lights, automatic headlight systems, and all other Jeep onboard electronics.
